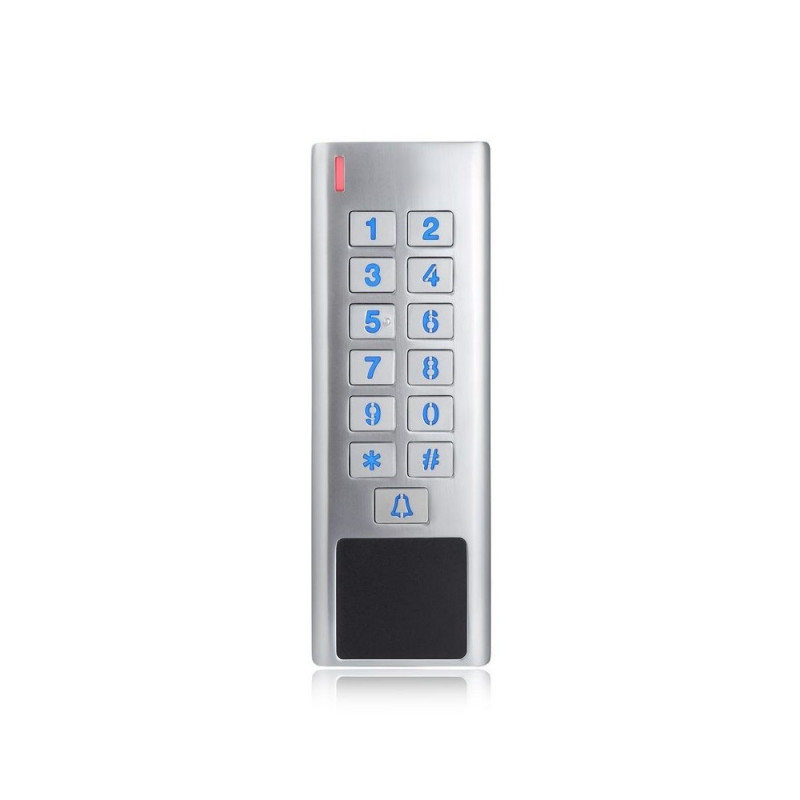

Multifunctional keyboard D-AD8MF (MIFARE, IP67, 1 relay, 1500 cards, 129x44x20 mm, 10-24V DC)
Product reference:
26-PSKDAD8MF
- Type: Multifunctional anti-vandal keyboard
- Model: D-AD8MF
- Operating frequency: 13.56 MHz MIFARE cards
- Capacity: 1500 cards/codes
- Protection class: IP67
- Housing material: Metal (zinc alloy)
- Power supply: 10-24 V DC
- Current consumption: ≤500 mA
- Relays: 1
- Interface: Wiegand
- Dimensions: 129 × 44 × 20 mm
- Keyboard: Backlit keys
- Installation: Surface-mounted
- Access types: Card, PIN code
Multifunctional keyboard D-AD8MF (MIFARE, IP67, 1 relay, 1500 cards, 129x44x20 mm, 10-24V DC)
Product reference:
26-PSKDAD8MF
- Type: Multifunctional anti-vandal keyboard
- Model: D-AD8MF
- Operating frequency: 13.56 MHz MIFARE cards
- Capacity: 1500 cards/codes
- Protection class: IP67
- Housing material: Metal (zinc alloy)
- Power supply: 10-24 V DC
- Current consumption: ≤500 mA
- Relays: 1
- Interface: Wiegand
- Dimensions: 129 × 44 × 20 mm
- Keyboard: Backlit keys
- Installation: Surface-mounted
- Access types: Card, PIN code
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- General information
- Power source 10-24V DC
- Rated current ≤80mA
- Installation method Surface-mounted
- Protection class IP67
- Number of users 1500
- Card type Mifare (UID 7 bytes, 4 bytes, Plus)
- Frequency 13.56MHz
- Electric lock output ≤2A
- Reading distance ≤6cm
- Alarm output ≤500mA
- Wiegand interface Card: Wiegand 26 bits or 34 bits; PIN: 4 bits
- Operating temperature -40°C to +70°C
- Humidity 10% to 98% RH
- Dimensions 129 x 44 x 20 mm
- Weight 350g
- Weight with packaging 412g
| Manufacturer | Kita |
| Manufacturer code | PSKDAD8MF |
| Weight | 0.000000 kg |
