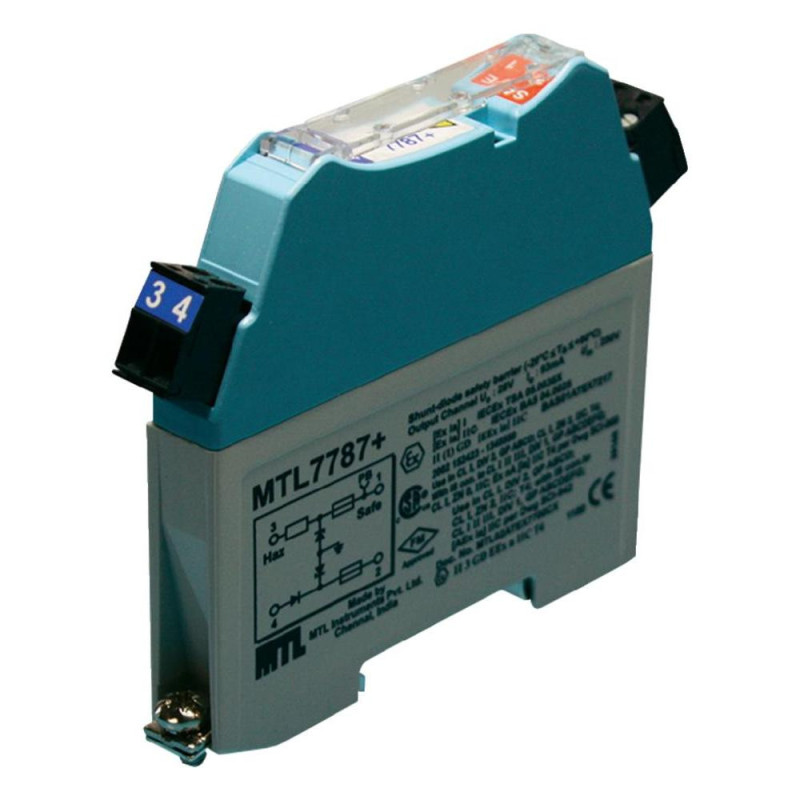

MTL7787+ Zener barrier
Product reference:
26-BSMTL7787
- The Zener barrier is extremely safe and is used in conventional fire protection systems for protection in hazardous areas. Certified 'ia' for all zones and 'IIC' for all explosive areas.
MTL7787+ Zener barrier
Product reference:
26-BSMTL7787
- The Zener barrier is extremely safe and is used in conventional fire protection systems for protection in hazardous areas. Certified 'ia' for all zones and 'IIC' for all explosive areas.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Maximum voltage of Zener diode when fuse blows | 28V |
Minimum value of terminating resistor | 300 Ohms |
Maximum short-circuit current | 93mA |
Number of Channels | 2 |
Maximum end-to-end resistance | 333 Ohms |
Working Voltage | 26.6V |
Maximum Voltage | 27.2V |
Fuse Rating (continuous) | 50mA |
Operating Temperature Range | -20°C to + 60°C |
Storage Temperature | -40°C to + 80°C |
Humidity | 95% RH |
Dimensions, mm | H90 x W105 x D12.6 |
Weight, kg | 0.140 |
Safety Description | 28V 300Ω 93mA |
Supply voltage | 20 to 35V dc |
Output current | 4 to 20 mA |
Voltage available to transmitter and lines | 16.2V @ 20mA with 250Ω load, 11.0V @ 20mA with 500Ω load |
Accuracy | ±2μA under all conditions |
Safe-area load resistance | 0 to 500Ω |
Supply current | 45mA typical at 20mA and 24V supply; 60mA maximum at 20mA and 20V supply |
| Manufacturer | EATON |
| Manufacturer code | BSMTL7787 |
| Weight | 0.103 kg |
