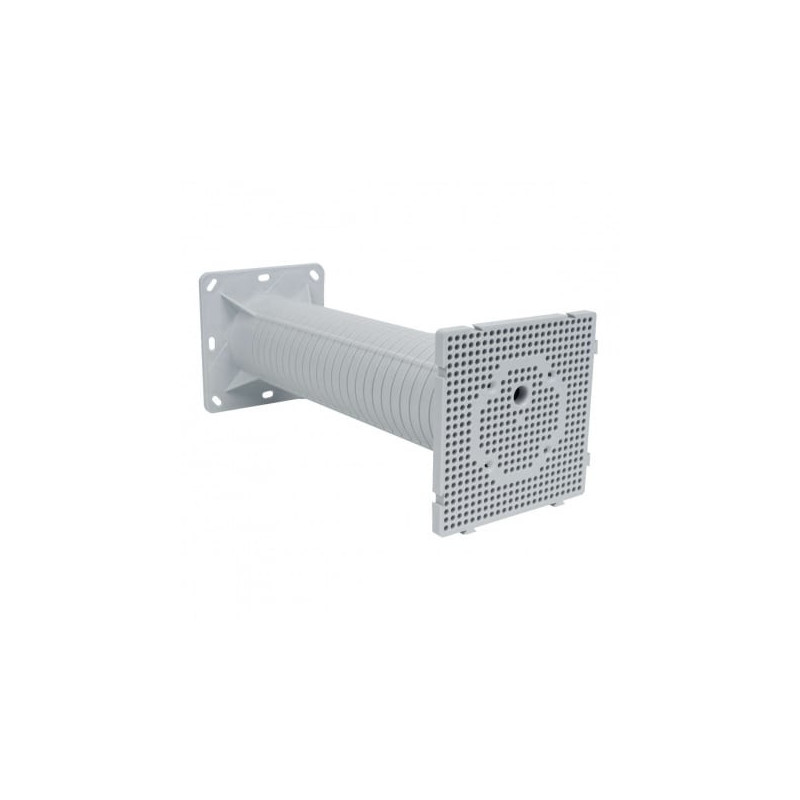

Mounting plate for thermal insulation Kopos MDZ 300_KB (up to 300mm)
Product reference:
26-KMDZ300KB
- Type: Mounting plate
- Model: MDZ 300_KB
- Brand: Dunes
- For installation of electrical equipment (lights, motion sensors, 400 V sockets, etc.)
- Application: On insulated facades with a thermal insulation layer of 50-300 mm
- Eliminates the formation of thermal bridges
- Permissible load: 40 N at a distance of 180 mm from the wall
- Possibility to connect several panels to form the required surface
- Suitable screws: Ø 4-5 mm
Mounting plate for thermal insulation Kopos MDZ 300_KB (up to 300mm)
Product reference:
26-KMDZ300KB
- Type: Mounting plate
- Model: MDZ 300_KB
- Brand: Dunes
- For installation of electrical equipment (lights, motion sensors, 400 V sockets, etc.)
- Application: On insulated facades with a thermal insulation layer of 50-300 mm
- Eliminates the formation of thermal bridges
- Permissible load: 40 N at a distance of 180 mm from the wall
- Possibility to connect several panels to form the required surface
- Suitable screws: Ø 4-5 mm
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
Not available
- General
- EAN code 8595568930804
- Customs classification code 3925 90 80
- Weight 0.4210 kg/pcs.
- Material PP
- Wireless material Yes
- Self-extinguishing 30 pp.
- Rated voltage 400V
- Rated current 16 A
- Temperature resistance -25 - +60°C
- Hot cycle test 850°C
- Assembly Before assembly, it is necessary to cut the carrier containing the closed insulation to the required length depending on the thickness of the insulating layer.
- Width 120mm
- Height 120mm
- Depth 317.5mm
- Reaction to fire class of the substrate A1 - F
| Weight | 0.346 kg |
