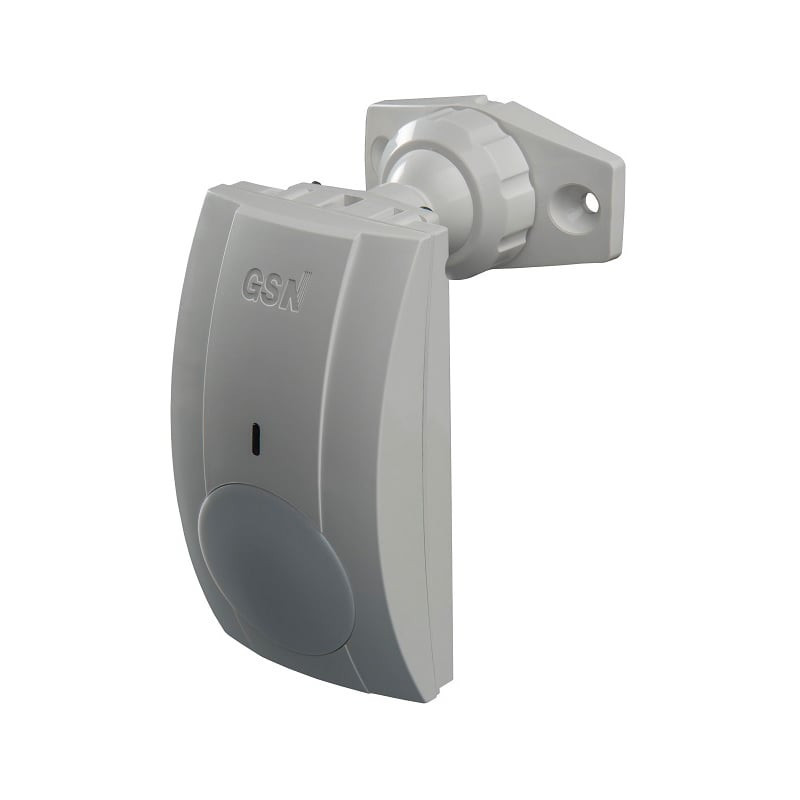

Motion sensor PATROL 903 QUAD
Product reference: 26-JGP903
  • Maximum protection against false alarms, modern and elegant design
  • High protection against electromagnetic (EMI) and radio frequency (RFI) interference
  • For residential and industrial premises
Motion sensor PATROL 903 QUAD

Motion sensor PATROL 903 QUAD

Product reference: 26-JGP903
  • Maximum protection against false alarms, modern and elegant design
  • High protection against electromagnetic (EMI) and radio frequency (RFI) interference
  • For residential and industrial premises
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
15,98 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
Supply voltage 8.5-16VDC
Standby power consumption
 		9.7mA
Current consumption in alarm mode 10.5mА
Preparation time for work 60sec
Detection zone 15.6m x 125º
Detection speed
 		0.3 - 3m/sec
Relay output NC; 60V; 100mA; 16Ω
Tamper output NC; 10Ω
Alarm time 3sec
Reload time 5 ± 1sec
Pulse counter 1,2,3,4
Installation height 2.0 - 2.5m
Lightfastness without sunlight filter
 		no less than 6500 Lux
Lightfastness with sunlight filter
 		more than 30,000 Lux
Operating temperature range
 		- 30ºC +60ºC
Tank temperature range - 50ºC +80ºC
RFI immunity 30V/м at a frequency range 30MHz-1GH
EMI resistance 50 000V
Measurements 54mm x 33mm x 99mm
Weight 75gr

ManufacturerGSN
Manufacturer codeJGP903
Weight0.065 kg
