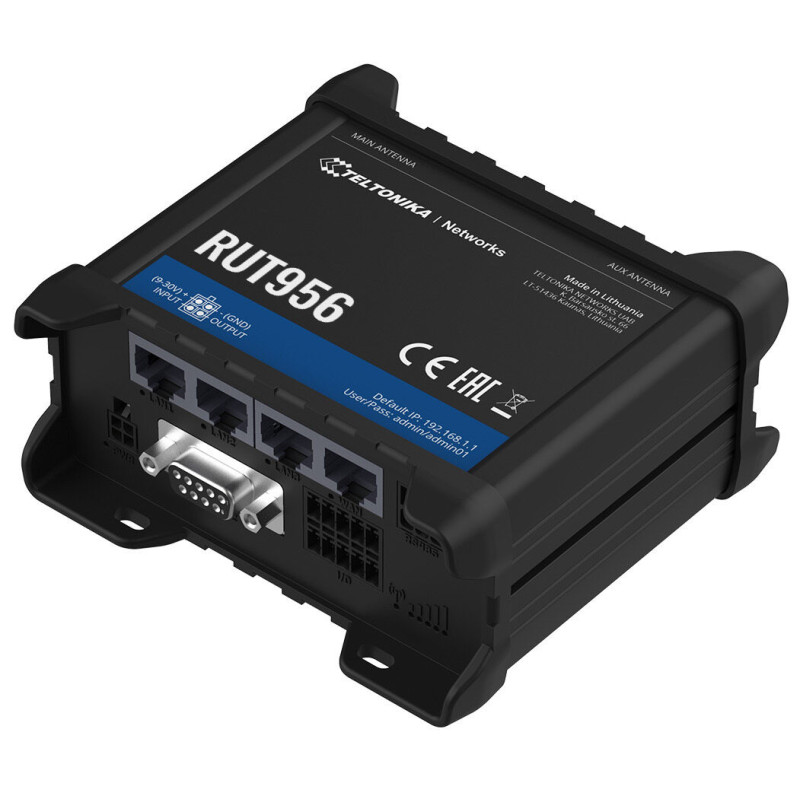

Modem Teltonika LTE RUT 956 LTE(4G)

Product reference: 26-LTRUT956

Modem Teltonika LTE RUT 956 LTE(4G)
UMTS/GSM/GPRS
1 WAN, 3 LAN
2 SIM

You have 3 products in compare list, please remove someone and try again

Add to favorites products
Added to favorites products
Removed to favorites product

Add to compare

262,96 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Ask about product

Your message has been successfully sent!

Fill in the required fields*

Home
Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD Supports sending and reading Unstructured Supplementary Service Data messages
Black/white list Operator black/white list
Multiple PDN Possibility to use different PDNs for multiple network access and services
Group management Band lock, Used band status display
APN Auto APN
Bridge Direct connection (bridge) between mobile ISP and device on LAN
Transfer Router assigns its mobile WAN IP address to another device on LAN
Wireless mode IEEE 802.11b/g/n, Access Point (AP), Station (STA)
Wifi protection WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID SSID stealth mode and access control based on MAC address
WiFi usage Up to 100 simultaneous connections
Wireless access Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
WAN 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Route Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
Internet protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP gateway support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Communication monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules
DHCP Static and dynamic IP allocation, DHCP Relay, Relayd
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported > 25 service providers, others can be configured manually
Network backups WiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic failover
Load balancing Balance Internet traffic over multiple WAN connections
Hotspot Internal/external Radius server, captive portal, built in customizable landing page
SSHFS Possibility to mount remote file system via SSH protocol
Authentication Pre-shared key, digital certificates, X.509 certificates
Firewall Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Burglary prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLANs Port and tag based VLAN separation
Mobile quota control Custom data limits for both SIM cards
WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter
OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods
OpenVPN encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPsec IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
GRE GRE tunnel
PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3 support
Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs code
DMVPN Method of building scalable IPsec VPNs
SSTP SSTP client instance support
ZeroTier ZeroTier VPN client support
WireGuard WireGuard VPN client and server support
ID range Respond to one ID in range [1;255] or any
Remote access permission Allow access through WAN
Custom registers MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
Supported baud rates From 300 to 115200
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Number of data bits From 5 to 8
Number of stop bits 1 or 2
Parity None, Even, Odd
Flow None, RTS/CTS, Xon/Xoff
Duplex Full duplex
Supported transfer rates From 300 to 300000
Supported functions 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Number of data bits 8
Number of stop bits 1
Parity None, Even, Odd
Flow None, Xon/Xoff
Duplex Half duplex
Protocols HTTP(S), MQTT, Azure MQTT
MQTT Gateway Allows sending commands and receiving data from MODBUS Master through MQTT broker
Supported modes TCP Master, DNP3 Outstation, RTU Master
WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
PHOTO Firmware update from server, automatic notification
SSH SSH (v1, v2)
SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT MQTT Broker, MQTT publisher
SNMP SNMP (v1, v2, v3), SNMP Trap
JSON-RPC Management API over HTTP/HTTPS
MODBUS MODBUS TCP status/control
RMS Teltonika Remote Management System (RMS)
Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability
ThingWorx Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulonimbus Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
Azure IoT Hub Can send device IP, Number of bytes send/received, Temperature, PIN count to AzureIoTHub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
CPU Mediatek MIPS 24Kc 580 MHz
RAM 128 MB, DDR2
FLASH storage 16MB, SPI Flash
WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup, restore point
PHOTO Update FW
RMS Update FW/configuration for multiple devices at once
Remembering settings Update FW without losing current configuration
Operating system RutOS (OpenWrt based Linux OS)
Languages Busybox shell, Lua, C, C++
Developer tools SDK package with build environment provided
GNSS GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA NMEA 0183
NTRIP NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software Supported server software TAVL, RMS
Geofences Configurable multiple geofence zones
RS232 DB9 connector, full RS232 (with RTS, CTS)
RS485 RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud in the circle
Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
Data transfer USB 2.0
Usage Samba share, USB-to-serial
External devices Possibility to connect external HDD, flash drive, additional modem, printer
Internal memory format FAT, FAT32, NTFS
Input 1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
Output 1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
Events Email, RMS, SMS
I/O juggler Allows to set certain I/O conditions to initiate event
Connectors 4-pin industrial DC power socket
Input voltage range 9 30 VDC, reverse polarity protection; surge protection > 31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
Energy consumption < 2 W idle, < 7 W Max
Network 4 x RJ45 ports, 10/100 Mbps
I/Os 2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
LED indicators 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
SIM 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
System parameters 1 x 4-pin power connector
Input/output 1x 10 pin industrial socket for inputs/outputs
Antennas 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
USB 1 x USB A port for external devices
RS232 1 x DB9 socket
RS485 1 x 6-pin industrial socket
Reloading Reboot/User default reset/Factory reset button
Housing Aluminum housing, plastic panels
Size 110 x 50 x 100 mm
Weight 287 g
Installation DIN rail (can be mounted on two sides), flat surface placement
Operating temperature -40°C to 75°C

Manufacturer	Teltonika Networks
Manufacturer code	LTRUT956
Weight	0.000000 kg
