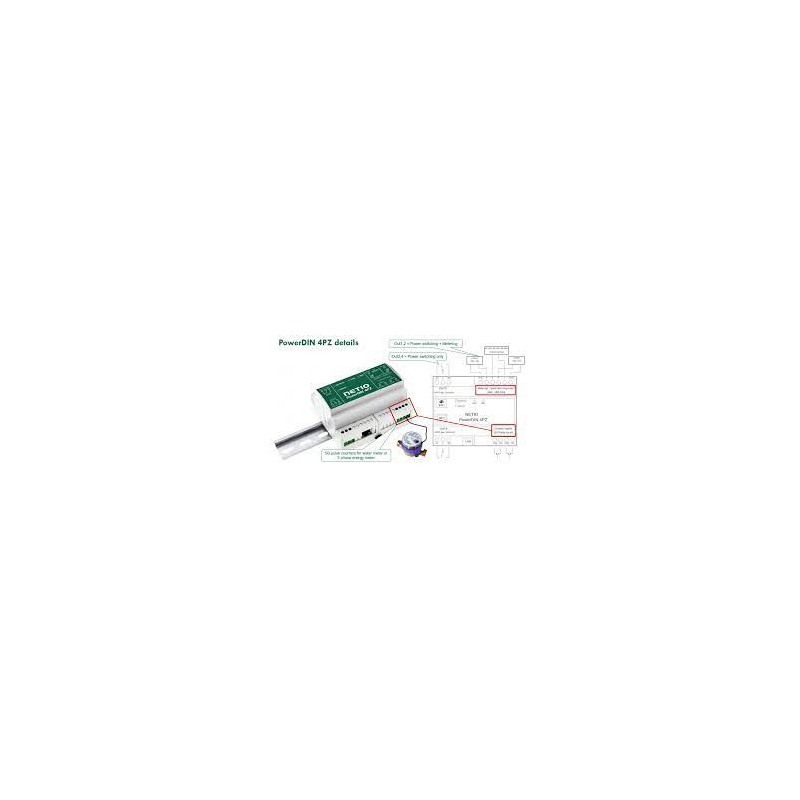

Managed power panel NETIO PowerDIN 4PZ
Product reference: 26-NETIOPOWERDIN4PZ
  • Managed power panel
  • Requires 230VAC power supply
  • Panel outputs: 4
  • Operating temperature: -20°C to +5°C
  • Uses Open API (HTTPS; SNMP; TELNET)
  • Independent output control
  • Easy control with the app "NETIO mobile 2"
Managed power panel NETIO PowerDIN 4PZ

Managed power panel NETIO PowerDIN 4PZ

Product reference: 26-NETIOPOWERDIN4PZ
  • Managed power panel
  • Requires 230VAC power supply
  • Panel outputs: 4
  • Operating temperature: -20°C to +5°C
  • Uses Open API (HTTPS; SNMP; TELNET)
  • Independent output control
  • Easy control with the app "NETIO mobile 2"
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
215,96 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • System parameters 100-240V; 50/60Hz; 16A
  • DO measured power output 2x, 16 A total / 16 A per output (Out 1, 2)
  • Surge protection Type 3 (CAT III)
  • DO power output relays Micro-disconnection (µ) (resistive load), SPST-NO, 1E5 switching cycles, max. 1.5 kV pulse voltage, Switch heat and fire resistance class 1, ZCS (Zero Current Switching)
  • Electrical load ZCS (Zero Current Switching), Resistance load compatible, Capacitive load compatible, Inductive load compatible
  • DO Relay output switching element 2x Relay (Out 3, 4: NO/NC) - Max 2A
  • DI (digital inputs) 2x Dry contact input with S0 impulse counter (32bits, non resettable)
  • Terminal blocks Wire range: 2,5mm2 (22-14AWG), Torque: 0,5Nm (4.4 Lb-In), Strip length: 5-6mm
  • Network interfaces 1x Ethernet RJ-45 10/100 Mbit/s, 1x Wi-Fi IEEE 802.11 b/g; 2.4GHz
  • Internal consumption Max 2W
  • Environmental protection IP30, protection rating = class 1, Operating temperature -20°C to +55°C, Device rated for pollution degree 2, Designed for continuous operation in altitudes up to 2000 m, Does not require additional cooling
  • LAN interface 10/100 Mbps (RJ-45)
  • WiFi interface 802.11 b/g/n; 2.4GHz (secured / unsecured), internal antenna
  • WiFi encryption WEP, WPA, WPA2
  • Operating temperature range -20°C to +55°C
  • Supported protocols DNS, NTP, DHCP, HTTP, uPNP
  • Supported M2M protocols Modbus/TCP, Telnet, SNMP, MQTT, Http Push, XML, JSON, URL AP

ManufacturerNetio
Manufacturer codeNETIOPOWERDIN4PZ
Weight0.000000 kg
