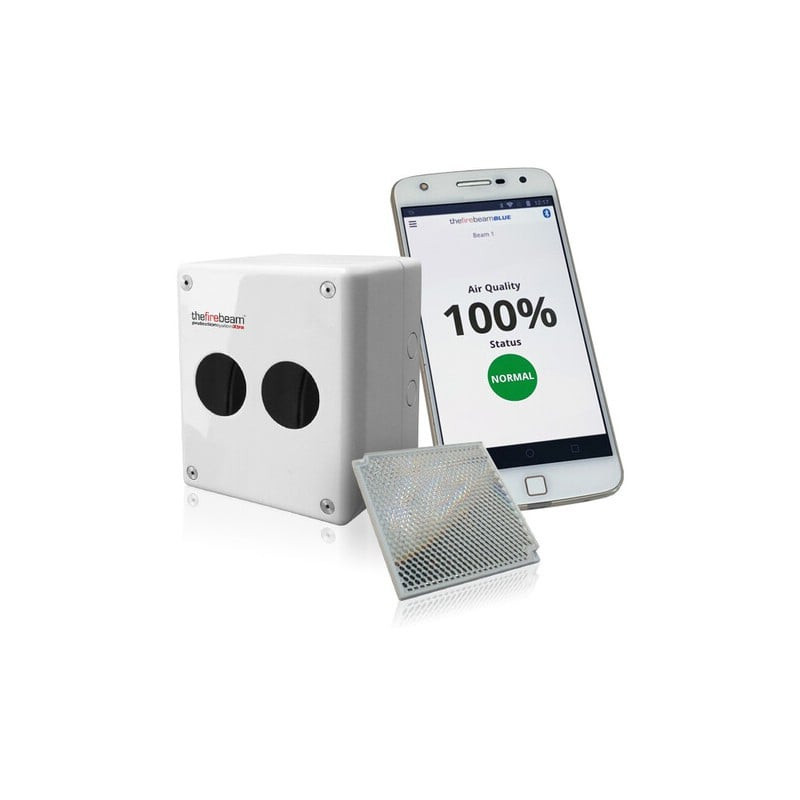

Linear smoke detector FireBeam Blue (7-70 years, Bluetooth)
Product reference: 26-PSFBBLUE
  • Controlled and configured via Bluetooth with a smartphone
  • IP65 moisture-resistant housing
  • Supply voltage: 10.2 V - 30 V
  • Operating range: 7-70 m. (expandable to 160 m.)
  • Automatic alignment mechanism
Linear smoke detector FireBeam Blue (7-70 years, Bluetooth)

Linear smoke detector FireBeam Blue (7-70 years, Bluetooth)

Product reference: 26-PSFBBLUE
  • Controlled and configured via Bluetooth with a smartphone
  • IP65 moisture-resistant housing
  • Supply voltage: 10.2 V - 30 V
  • Operating range: 7-70 m. (expandable to 160 m.)
  • Automatic alignment mechanism
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
420,01 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Voltage 12 to 30 Vdc normal
  • Supply current 5.5mA in all operational states
  • Temperature -10°C to +55°C
  • Humidity 10 to 95% RH Non-condensing
  • Protection IP65 when suitably mounted and terminated
  • Optical wavelength 870nm
  • Maximum angular alignment ±5°
  • Maximum angular displacement (static not auto-aligning)
  • Alarm sensitivity levels 25% (1.25dB) to 50% (3dB) in 1% (0.05dB) increments (default 35% (1.87dB))
  • Alarm Obscuration drops to below pre-defined sensitivity level. Time to Alarm Condition adjustable between 2 to 30 seconds in 1 second increments (default 10 seconds)
  • Alarm indication App Status - FIRE, Head Red Flashing LED, Alarm Relay Change Over (CO) Contact, Rating 2A @ 30 VDC
  • Test/Reset functions Beam test function with App, Alarm latching / auto-reset selectable (default auto-reset), Alarm reset in latching mode with App reset function, removing power for > 5 seconds or momentarily apply > 5 VDC to reset connections in Beam Head
  • Fault sensitivity level lt;4%
  • Malfunctions Obscuration drops to below the fault sensitivity level within 1 second, Power Down or Supply Voltage < 9 VDC, Commissioning modes, Pre-Alignment and Auto-Alignment, Beam turned off during Beam Maintenance, Time to Fault Condition adjustable, 2 to 60 seconds in 1 second increments (default 10 seconds)
  • Fault indication App Status - FAULT, Head Yellow Flashing LED 1 Second, Fault Relay Change Over (CO) Contact Rating 2A @ 30 VDC
  • Normal Condition Obscuration level is above the Alarm sensitivity level, App Status - NORMAL, Programmable on/off, Head Green Flashing LED, Programmable on/off
  • Automatic alignment/compensation Auto-align during normal operation if obscuration drops below 90% for the duration of the align time set (doesn't affect normal operating mode), Beam Contamination Compensation 4 hour monitoring. Compensation data available in the App

ManufacturerKita
Manufacturer codePSFBBLUE
Weight1.5 kg
