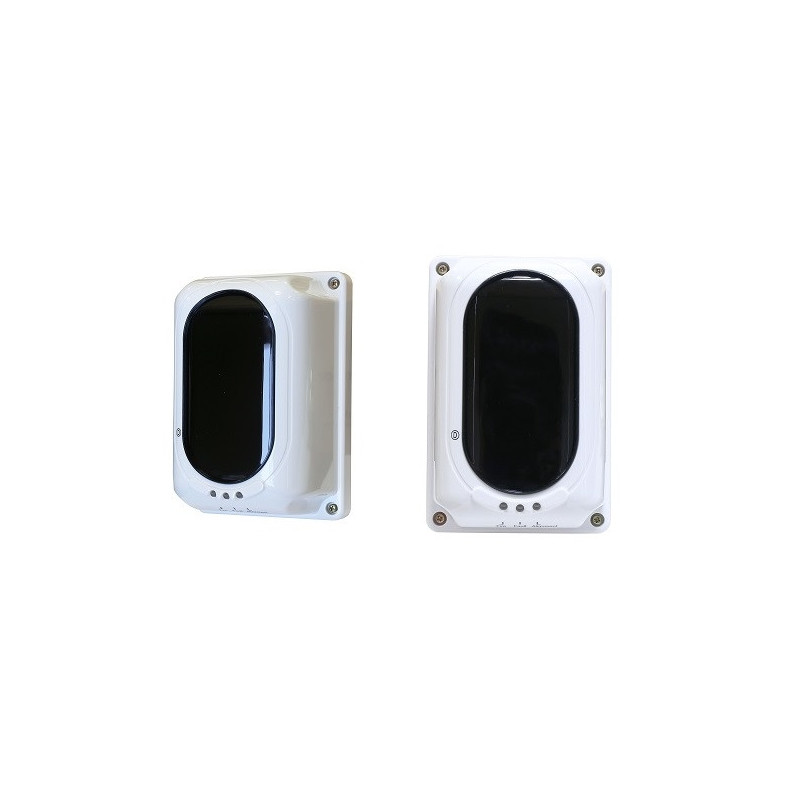

Linear reflective smoke barrier TR6100
Product reference: 26-BDTR6100
  • Four-range wide-range monitoring from 8 to 100 meters
  • Power Supply Voltage: 20V to 28V DC
  • Operating temperature: -10°C to 50°C
  • Self-diagnostic function can monitor internal faults
  • Easy alignment, with digital guide display and laser beam marker
Linear reflective smoke barrier TR6100

Linear reflective smoke barrier TR6100

Product reference: 26-BDTR6100
  • Four-range wide-range monitoring from 8 to 100 meters
  • Power Supply Voltage: 20V to 28V DC
  • Operating temperature: -10°C to 50°C
  • Self-diagnostic function can monitor internal faults
  • Easy alignment, with digital guide display and laser beam marker
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
255,33 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Home
  • Approvals LPCB / CE-CPR
  • Rated voltage 20 V to 28 V DC
  • Rated current Standby:23mA Commission:56mA Alarm:33mA
  • Radiation sensor sensitivity Level 1: 2.6 dB High Sensitivity Level 2: 3.8 dB Medium Sensitivity Level 3: 5.8 dB Low Sensitivity
  • Beam path length Span 1: 8 to 20 meters Short Path (1x mirror reflector required) Span 2: 20 to 40 meters Short Path (1x mirror reflector required) Span 3: 40 to 70 meters Normal Path (4x mirror reflector required) Span 4: 70 to 100 meters Long Path (4x mirror reflector required)
  • Beam path angle ± 0.4O Directional
  • Alignment guide Laser Beam Pointer
  • LED indicator Red: Fire; Yellow: Fault; Green: Alignment
  • Recharge time Less than 2 Seconds (Power Cut)
  • Relay capacity [fire/fault] Normally Open/ 2.0 A; 30 VDC
  • Material and color ABS / White
  • Size / Weight L:190.87 x W:126.87 x H:91.96 mm / 440 gm
  • Weight 0.130 Kg with base
  • Accessories Mounting Bracket, 4 x Mirror Reflector
  • Working conditions humidity -10°C to 55°C
  • IP rating IP30 [IP66 glue seal-For permanent fixing] Indoor Application
  • Humidity 0 to 95% RH, Non-condensing

ManufacturerKita
Manufacturer codeBDTR6100
Weight0.13 kg
