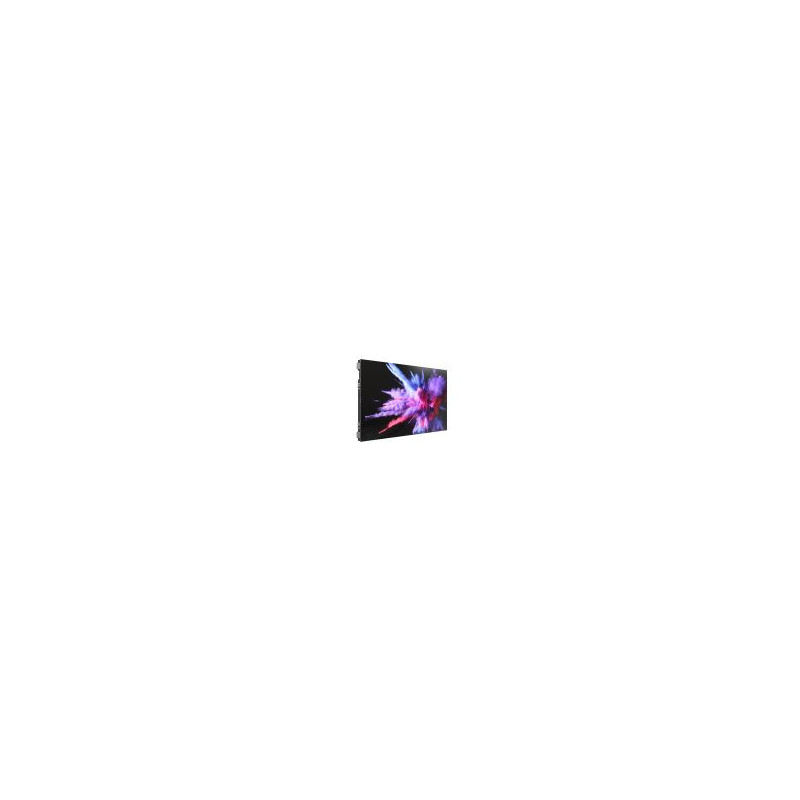

LED module Hikvision DS-D4015BW-2FC / A
Product reference: 26-6936422139667
  • High Precision Aluminum Die Casting Cabinet
  • Lead-free, non-toxic solder paste materials
  • Dynamic brightness adjustment for better image quality and lower power consumption
  • Automatic moisture removal to protect the lamp board
  • Multiple ways to adjust screen parameters: remote control, tablet, platforms
  • Recyclable packaging, green and low-carbon manufacturing standards
  • Note: module and cabinet structure are ordered separately
LED module Hikvision DS-D4015BW-2FC / A

LED module Hikvision DS-D4015BW-2FC / A

Product reference: 26-6936422139667
  • High Precision Aluminum Die Casting Cabinet
  • Lead-free, non-toxic solder paste materials
  • Dynamic brightness adjustment for better image quality and lower power consumption
  • Automatic moisture removal to protect the lamp board
  • Multiple ways to adjust screen parameters: remote control, tablet, platforms
  • Recyclable packaging, green and low-carbon manufacturing standards
  • Note: module and cabinet structure are ordered separately
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
157,20 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Holder
  • Modular Bracket DS-DL116033W 1*1;DS-DL126033W 1*2;DS-DL226033W 2*2
  • Cabinet
  • Area 0.2025㎡
  • Cabinet Material Aluminum die casting
  • Size 600 mm × 337.5 mm × 29.3 mm (23.622" × 13.287" × 1.154")
  • Maintenance Method Front maintenance for all components
  • Modules Component 2 × 2
  • Pixel Configuration Flip-chip COB
  • Pixel Density 409600 dots/㎡
  • Point step 1.5625 mm
  • Pixel Pitch Category P1.5
  • Resolution 384 × 216
  • Weight 3.4 kg
  • Screen
  • Brightness Uniformity ≥ 97%
  • Color Temperature 3000-10000 K adjustable
  • Color Uniformity ≤ ± 0.003Cx，Cy
  • Contrast ratio 15000:1
  • Viewing angle 160°(H)/160°(V)
  • White Balance Brightness 600 cd/㎡
  • General information
  • GW 4.56 kg（1 package in 1 box）
  • Net weight 3.4 kg
  • Packaging Dimensions (W × H × D) Module: 4-in-1(443X360X52mm) Structure: 5-in-1(708X393X433mm)
  • In the package Regulatory Compliance and Safety Information × 1 Connecting screws, driver IC, iron sheets
  • Module
  • Dimensions 300 × 168.75 mm
  • Module Resolution 192 × 108
  • Energy
  • Average costs ≤100W/㎡
  • Input voltage 100~240VAC ± 10%
  • Maximum energy consumption ≤300 W/㎡ （600nits）
  • Processing performance
  • Driving Method Constant current driving
  • Frame rate 60Hz
  • Grayscale 16 bits
  • Update frequency 3840Hz
  • Product model
  • Product model DS-D4015BW-2FC
  • Product type
  • Product type Fine Pixel Pitch Indoor Full-color LED Display
  • Work environment
  • Storage humidity 10% to 90% RH (without condensation)
  • Storage temperature -20 to 60 (-4 to 140)
  • Operating humidity 10% to 90% RH (without condensation)
  • Operating temperature -10 to 40 (14 to 104)

ManufacturerHikvision
Manufacturer codeDSD4015BW2FCA
Weight0 kg
