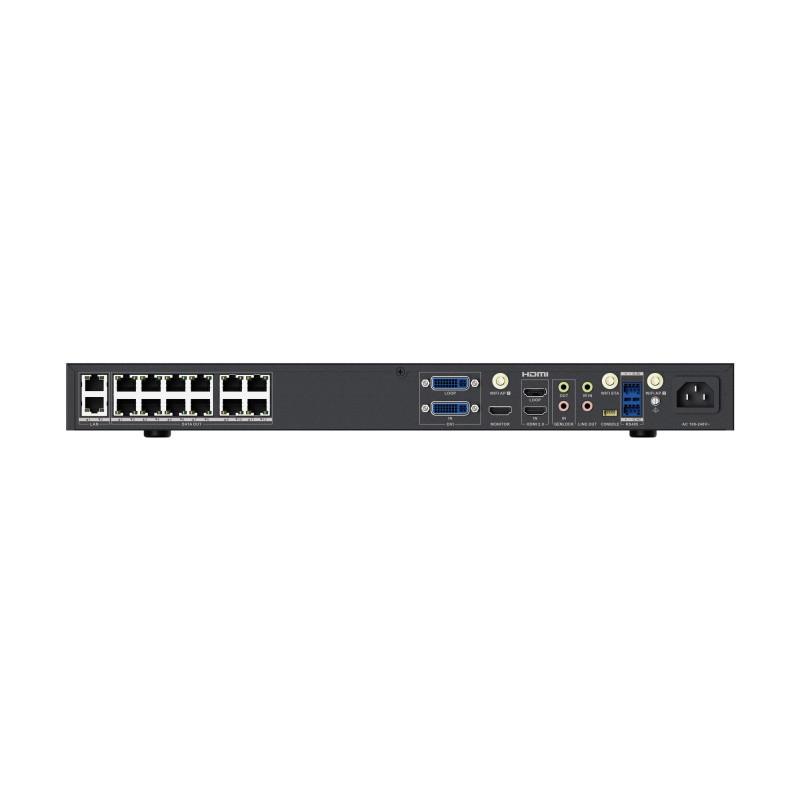

LED Controller Hikvision DS-DT60P-02HDI12NO / U
Product reference: 26-6942160491653
  • Color OLED display (128 × 64)
  • 1U industrial building
  • 2 video inputs: DVI (1920×1200) and HDMI 2.0 (4096×2160)
  • 12 video outputs, up to 7.8 MP load
  • Audio input via HDMI and 3.5 mm output
  • Supports video wall, scene and window control
  • Built-in Android 12 system with 4 GB RAM and 32 GB memory
  • Supports USB playback and WonderCast
LED Controller Hikvision DS-DT60P-02HDI12NO / U

LED Controller Hikvision DS-DT60P-02HDI12NO / U

Product reference: 26-6942160491653
  • Color OLED display (128 × 64)
  • 1U industrial building
  • 2 video inputs: DVI (1920×1200) and HDMI 2.0 (4096×2160)
  • 12 video outputs, up to 7.8 MP load
  • Audio input via HDMI and 3.5 mm output
  • Supports video wall, scene and window control
  • Built-in Android 12 system with 4 GB RAM and 32 GB memory
  • Supports USB playback and WonderCast
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
2 146,18 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Audio input
  • Audio input interface type 1 channel of HDMI 2.0 + 1 channel of embedded Android
  • Audio input interfaces 2
  • Audio output
  • Audio Output Interface 3.5 mm audio output
  • Audio output interfaces 1
  • Broadcast Control Feature
  • File Format Video, image, webpage, document, clock, text, and background music
  • Video Playback Performance 1-channel 4096 × 2160@60 Hz, 4-channel 1920 × 1080@60 Hz, 6-channel 1280 × 720@60 Hz
  • WonderCast Client Supported
  • Housing
  • Housing height 1 U
  • Case width 440 mm (17.32 inches)
  • Control interface
  • IR input 1 × 3.5 mm connector Supports the access of IR remote control.
  • Device Parameters
  • Button +: increase brightness-: decrease brightnessSource: change signal source
  • Power switch Button switch
  • Serial interface 1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) + 1 × RS-485 serial port for light perception (green Phoenix contact) Baud rate: 115200, data bit: 8
  • Front panel
  • Indicator Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.
  • Power switch On: The device is started and running. Off: The device is not powered on or is not started.
  • General information
  • Size 440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)
  • Total weight 4,560 kg (10,053 lb)
  • Net weight 3,369 kg (7,427 lb)
  • Package size (W × H × D) 589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)
  • In the package 1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1× RF remote control
  • Screen 128 × 64, OLED screen
  • Storage humidity 10% to 90%
  • Storage temperature -10°C to 50°C
  • Operating humidity 10% to 90%
  • Operating temperature -10°C to 50°C
  • Interface
  • USB interface 1 channel of USB 2.0 + 1 channel of USB 3.0
  • LED Controller Power
  • Average costs ≤42W
  • Power supply 100 to 240 VAC, 50/60 Hz
  • Number of power interfaces 1
  • Network
  • Management network port 2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network.
  • Processing performance
  • Brightness control 1 to 100 tunable (level-by-level white balance)
  • Color depth 16 MP
  • Grayscale 256
  • Image zoom Supported
  • Input Frame Rate 25Hz to 120Hz
  • Processing depth 8-bit
  • Product model
  • Product model DS-DT60P-02HDI12NO/U
  • Product type
  • Product type LED controller
  • Sending Card Interface
  • Light Sensor Port Supported
  • System
  • CPU 4-core 64-bit ARM cortex-A55 2.0 GHz
  • Memory capacity 4GB
  • Storage capacity 32GB
  • System Android 12
  • Video input
  • Maximum video input resolution HDMI 2.0: 4K; TWO: 1080p
  • Video input interface type 1 HDMI2.0 + 1 DVI + 1 embedded Android
  • Video input interfaces 3
  • Video input processing function Processing depth: 8 bitSampling format: RGB: 444YUV: 444YUV: 422YUV: 420
  • Video Input Resolution DVI port: Max. resolution: 1920 × 1200@60 HzMin. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 HzMax. width: 144 to 4096, alignment: 2 alignmentMax. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.,HDMI 2.0 port: Max. resolution: 4096 × 2160@60 HzMin. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 HzMax. width: 144 to 8192, alignment: 2 alignmentMax. height: 144 to 8192, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.,Embedded Android: Max. resolution: 1920 × 1200@60 HzMin. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 HzMax. width: 144 to 4096, alignment: 2 alignmentMax. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.
  • Video output
  • LED Loading Interface Type RJ-45
  • LED charging interfaces 12
  • Video output to LED loading capacity Single port load 650000,Width 144 - 8192,Height 64 - 8192,Width must be a multiple of 2 and height must be a multiple of 1
  • Loading Mode Mini loading: single port load 650000Standard loading: single port load 2925000 (available on any network port)
  • Maximum video output resolution 7800000
  • Video Live View Output Interface Type HDMI 1.4
  • Type of Video Loop Output Interface 1 channel of HDMI 2.0 + 1 channel of DVI
  • Video live view output interfaces 1
  • Video Live View Output Resolution 720p@60 Hz
  • Video Loop Output Interface 2
  • Video Loop Output Resolution DVI port: Max. resolution: 1920 × 1200@60 HzMin. resolution: 320 × 180@60 Hz Supports custom resolution, total resolution not exceeding 2.6 MP@60 Hz. Max. width: 144 to 4096, width must be a multiple of 2. Max. height: 144 to 4096, height must be a multiple of 1.Supports HDCP 1.4.,HDMI 2.0 port: Max. resolution: 4096 × 2160@60 HzMin. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60HzMax. width: 144 to 8192, alignment: 2 alignmentMax. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2.
  • Video Output Interfaces 12
  • Video Wall
  • Background format JPG/JPEG
  • Background resolution Min.: 640 × 480, Max.: 1920 × 1200
  • Background images 1
  • Layers through the device 7
  • Open windows 3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
  • Scenes 10
  • Subtitle font Supports Xiaomi font and custom font
  • Subtitle width 32760
  • Subtitles 1
  • Wireless connection
  • Antenna 3 × bar antenna
  • Bluetooth Bluetooth 4.0
  • Remote control Supports IR remote control and RF remote control
  • Wi-Fi STA 2.4 GHz, AP 2.4&5 GHz

ManufacturerHikvision
Manufacturer codeDSDT60P02HDI12NOU
Weight3 kg
