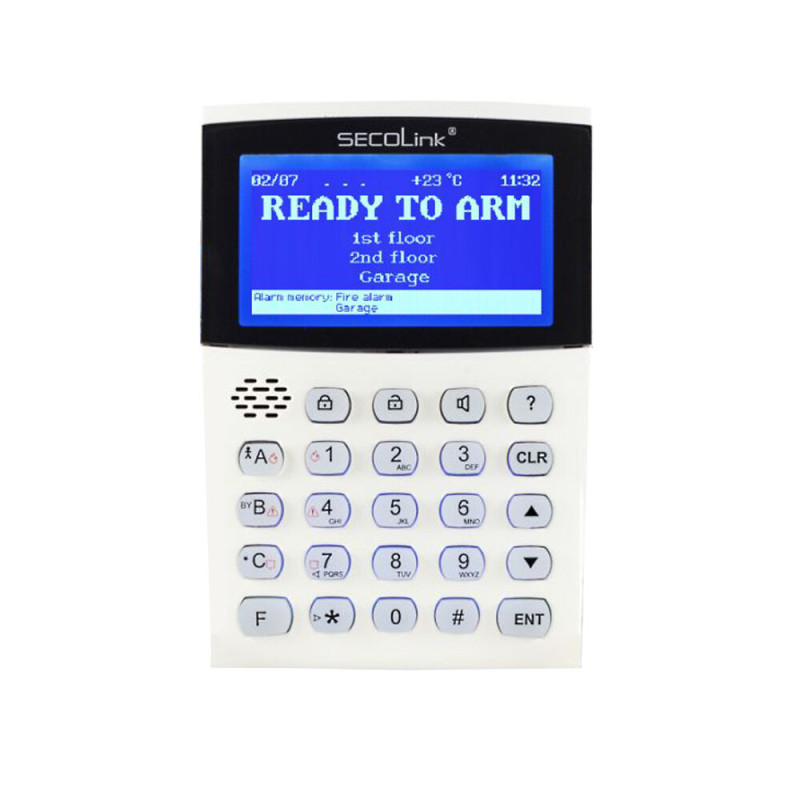

Keyboard SECOLINK KM24G
Product reference: 26-ASGKM24G
  • 2 wired zones
  • 1 PGM output
  • LCD screen
  • Graphic display: 240 x 120 pixels
  • 24 buttons
  • Micro speaker
  • USB interface
Keyboard SECOLINK KM24G

Keyboard SECOLINK KM24G

Product reference: 26-ASGKM24G
  • 2 wired zones
  • 1 PGM output
  • LCD screen
  • Graphic display: 240 x 120 pixels
  • 24 buttons
  • Micro speaker
  • USB interface
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
84,94 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Number of wired zones on the board2
Number of PGM outputs on the board1 (open collector up to 15 mA)
Ambient temperature measurementThere is
LCD typeGraphic: 240 x 120 pixels
Number of keys on the keyboard24
Number of fast function keys (F-Keys)32
Data bus protocolCRBUS
Sensor connection loop typesNC, NO, NC/EOL, NO/EOL, NC/DEOL, NO/DEOL
Maximum distance of the communication cable between the control panel and the control panel300 m
Supply voltage (DC)9 - 14V
Measuring voltage on the keyboardThere is
Current consumptionWith lighting 80 mA, without lighting lt;68 mA.
Speaker typeMicro speaker
Lighting colorScreen = blue, keyboard = blue
Character setThe main sets of world symbols.
User interface typeNavigation menu with a short explanation system.
Overall dimensions W x H mm92 x 133
Product compliance with environmental standardsROHS
Operating temperatureFrom 0 oh C to +50 oh C
Control panel settings programming interfaceUSB
Control panel firmware update interfaceUSB

ManufacturerSecolink
Manufacturer codeASGKM24G
Weight0.174 kg
