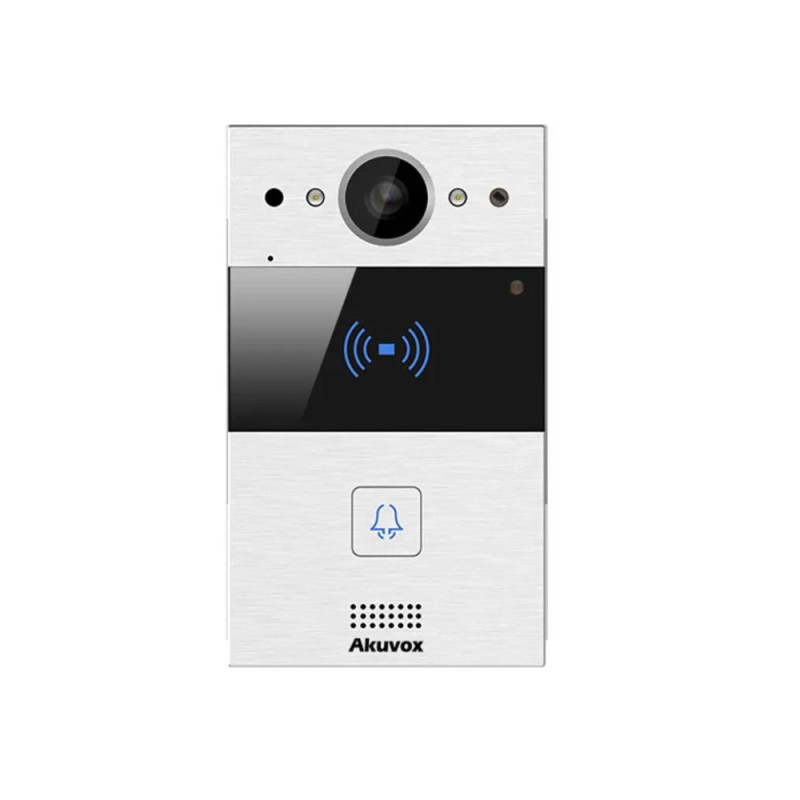

IP video intercom Akuvox R20A (2MP, RFID, PoE, gray)
Product reference: 26-AKUVOXR20AS
  • Category: IP video intercom
  • Brand: Akuvox
  • Model: R20A
  • Color: Gray
  • Camera: 2 MP
  • Number of doors: 2
  • Relays: 2
  • Material: Aluminum
  • RFID: MIFARE
  • Features: Built-in NFC
  • Interface: RS-485, Wiegand
  • Protocol: SIP
  • Protection class: IP65
  • Power supply: 12 VDC, PoE
  • Model code: 00905P11
IP video intercom Akuvox R20A (2MP, RFID, PoE, gray)

IP video intercom Akuvox R20A (2MP, RFID, PoE, gray)

Product reference: 26-AKUVOXR20AS
  • Category: IP video intercom
  • Brand: Akuvox
  • Model: R20A
  • Color: Gray
  • Camera: 2 MP
  • Number of doors: 2
  • Relays: 2
  • Material: Aluminum
  • RFID: MIFARE
  • Features: Built-in NFC
  • Interface: RS-485, Wiegand
  • Protocol: SIP
  • Protection class: IP65
  • Power supply: 12 VDC, PoE
  • Model code: 00905P11
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
225,20 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Overview
  • Vandal-resistant housing with built-in button;
  • Wide-angle camera 110º (H), 58º (V);
  • PoE (IEEE802.3af, power over Ethernet);
  • Two-way audio communication over IP networks with audio cooling function;
  • Compliant with the SIP standard for easy integration into every SIP-enabled PBX;
  • Compliant with ONVIF standard for easy integration with any network surveillance system;
  • Physical and energy parameters
  • Front panel Aluminum alloy
  • Camera 2M pixels, automatic lighting
  • Button 1 call button
  • Light sensor Support
  • Infrared sensor Support
  • Wiegand port Support
  • RS485 port Support
  • RF card reader 13.56MHz (with NFC) 125kHz
  • Relay outputs 2
  • Entrances 2
  • Microphone -40dB
  • Loudspeaker 4Ω / 3W
  • Ethernet port RJ45, 10/100Mbps adaptive
  • 802.3af power over Ethernet
  • 12V DC connector (if PoE is not used)
  • Water and dust resistance IP65
  • Installation Flush-mounted or Wall-mounted
  • Built-in DIM 189x120x56.5mm
  • Wall-mounted DIM 145x85x27.5mm
  • Operating humidity 10~90%
  • Operating temperature -30°C ~ +60°C
  • Storage temperature -40°C ~ +70°C
  • Sound
  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec G.711a, G.711μ, G.729
  • Wideband audio codec G.722
  • DTMF In-band, out-of-band DTMF (RFC2833), SIP Info
  • Sound cooling
  • Voice-activated detection
  • Comfortable noise generator
  • Image
  • Sensor 1/2.7", CMOS
  • Pixels CIF, QCIF, VGA, 4CIF, 720p, 1080p
  • Video codec H.264
  • Image resolution up to 1920x1080p
  • Max video bit rate 1080p - 30fps
  • Viewing angle 110°(H) / 58°(V)
  • High-intensity IR LED lamps for video illumination in the dark with an internal light sensor
  • Compatible with third-party video components such as NVRs
  • Door entry function
  • Relays are controlled individually by DTMF tones
  • Camera always on
  • Automatic night mode with LED lighting
  • White balance car
  • Minimal lighting 0.1LUX
  • Networking and protocol
  • Protocol support IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Installation and maintenance
  • Automatic configuration
  • Web management portal
  • Internet-based packet dumping
  • Configuration backup/restore
  • Event log export
  • Access table export/import
  • Firmware update
  • System logs (including door access logs)
  • Application
  • Office door phone with local or cloud IP-PBX
  • Remote access via the Internet
  • Apartment intercom with door access control

ManufacturerAkuvox
Manufacturer codeAKUVOXR20AS
Weight0.456 kg
