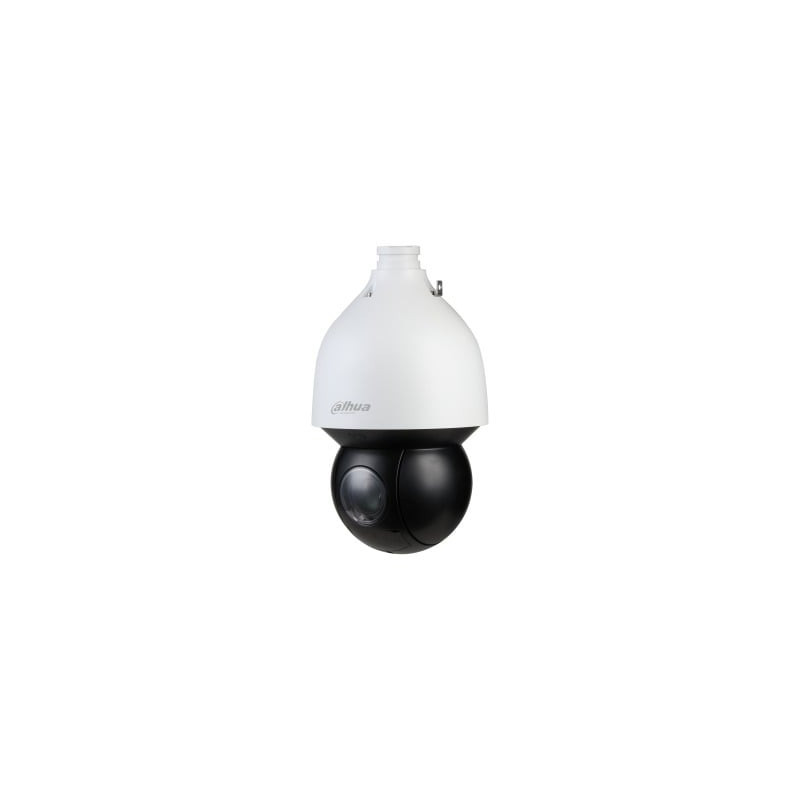

IP controlled camera Dahua PTZ SD5A225GB-HNR (2MP, 25× zoom, Starlight, IR 150m, WizSense, IP67)
Product reference: 26-DAHPTZSD5A225GBHNR
  • Category: IP controlled camera
  • Brand: Dahua
  • Model: SD5A225GB-HNR
  • Type: PTZ
  • Resolution: 2MP
  • Optical zoom: 25×
  • Lens: 4.8-120 mm (58.5°-2.8°)
  • Technology: Starlight, WizSense
  • IR illumination: up to 150 m
  • Analytics: Perimeter protection, SMD 4.0, face detection
  • Memory: microSD up to 512 GB
  • Image enhancement: BLC, WDR, HLC
  • Video compression: H.265+
  • Protection class: IP67
IP controlled camera Dahua PTZ SD5A225GB-HNR (2MP, 25× zoom, Starlight, IR 150m, WizSense, IP67)

IP controlled camera Dahua PTZ SD5A225GB-HNR (2MP, 25× zoom, Starlight, IR 150m, WizSense, IP67)

Product reference: 26-DAHPTZSD5A225GBHNR
  • Category: IP controlled camera
  • Brand: Dahua
  • Model: SD5A225GB-HNR
  • Type: PTZ
  • Resolution: 2MP
  • Optical zoom: 25×
  • Lens: 4.8-120 mm (58.5°-2.8°)
  • Technology: Starlight, WizSense
  • IR illumination: up to 150 m
  • Analytics: Perimeter protection, SMD 4.0, face detection
  • Memory: microSD up to 512 GB
  • Image enhancement: BLC, WDR, HLC
  • Video compression: H.265+
  • Protection class: IP67
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
38163 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • General information
  • Image sensor 1/2.8" CMOS
  • Pixel 2 MP
  • Highest resolution 1920 (H) × 1080 (V)
  • ROM 4GB
  • RAM 1GB
  • Electronic shutter speed 1/1s-1/30,000s
  • Scanning system Progressive
  • Minimal lighting Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR light on)
  • Lighting distance 150 m (492.13 ft) (IR)
  • Lighting control Zoom Prio; Manual; Smart IR
  • Number of lights 4 (AND)
  • Focal length 4.8mm-120mm
  • Maximum aperture F1.6-F3.5
  • Field of view H: 58.5°-2.8°; W: 33.2°-1.5°; D: 67.5°-3.2°
  • Optical zoom 25×
  • Focus control Auto; semi-auto; manual
  • Close focus distance 0.1 m-1.5 m (0.33 ft-4.92 ft)
  • Aperture control Auto; manual
  • DORI distance Detect: 1.614 m; Observe: 646 m; Recognize: 323 m; Identify: 161
  • Pan/Tilt Range Pan: 0° to 360° endless; Tilt: -15° to +90°, auto flip 180°
  • Manual Control Speed Pan: 0.1°/s-300°/s; Tilt: 0.1°/s-200°/s
  • Preset Speed Pan: 400°/s; Tilt: 300°/s
  • Pre-saved settings 300
  • Tours 8 (up to 32 presets per tour)
  • Patterns 5
  • Scans 5
  • Power-off memory Yes
  • Idle Motion Preset; Pattern; Tour; Scan
  • Image metadata Motor/non-motor vehicle, face, human body detection and tracking with attribute extraction
  • IVS Tripwire, intrusion, climbing, loitering, object detection, people gathering, vehicle/human classification
  • Facial recognition Face box, snapshot, enhancement, attribute (gender, age, glasses, mask, mustache), expression (8 types), cutout options
  • People counting Entry/exit/stay/queue detection; daily/weekly/monthly reports
  • Automatic tracking Yes
  • SMD SMD 4.0
  • Acupick Target search using deep learning
  • Auto Patrol PTZ linkage and patrol based on detected targets
  • Image compression Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream 1)
  • Broadcasting capabilities 3 streams
  • Resolution 1080p, 1.3M, 720p, D1, VGA, CIF
  • Video frame rate Main: 1080p/1.3M/720p@(1-50/60 fps); Sub1: D1/VGA/CIF@(1-25/30 fps); Sub2: 1080p/1.3M/720p@(1-25/30 fps)
  • Bit rate control CBR; VBR
  • Video bit rate H.264: 64Kbps-10946Kbps; H.265: 25Kbps-6400Kbps
  • Day/night Auto (ICR); Color; B/W
  • BLC Yes
  • WDR 120 dB
  • White balance Auto, indoor, outdoor, ATW, manual, sodium lamp, natural light, street lamp
  • Gain control Auto; manual
  • Noise reduction 2D NO; 3D NO
  • Motion detection Yes
  • Area of ​​interest Yes
  • Image stabilization Electronic (EIS)
  • Fog removal Electronic
  • Digital zoom 16×
  • Image rotation 180°
  • Privacy masking Up to 24 areas (max 8 in one view)
  • Signal-to-noise ratio ≥55dB
  • Audio compression PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723
  • Network port RJ-45 (10/100 Base-T)
  • Network protocols HTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, QoS, FTP, UPnP, ICMP, SNMP v1/v2c/v3, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, TCP, SSL
  • Compatibility ONVIF (Profile SGT), CGI, SDK
  • Broadcast method Unicast; Multicast
  • User/port 20 (total bandwidth: 64 Mbps)
  • Memory FTP, Micro SD (up to 512 GB), NAS
  • Browser support IE 7+, Chrome 42-, Firefox 52-, Safari
  • Management software Smart PSS, DSS, DMSS, Easy4ip, IVSS
  • Mobile app iOS; Android
  • Certificates CE: EN55032/EN55024/EN50130-4; FCC: Part15 subpartB, ANSI C63.4-2014; UL60950-1 + CAN/CSA C22.2 No.60950-1
  • Alarm input/output 2 in / 1 out
  • Audio input/output 1 in / 1 out
  • Two-way audio Yes
  • Alarm interface Capture, preset, tour, pattern, recording, I/O trigger, audio, email
  • Dangerous events Motion, tampering, audio, network disconnection, IP conflict, SD card status, power exception
  • Power source 24 VDC, 2.5 A ± 25%, PoE+ (802.3at)
  • Energy consumption Basic: 13 W; Max: 22 W (IR + PTZ + heater + fan)
  • Operating temperature -40 °C to +70 °C (-40 °F to +158 °F)
  • Working humidity ≤95%
  • Protection class IP67, IK10, TVS 6000 V surge/lightning/voltage protection
  • Product dimensions 332mm × Φ190mm (13.07" × Φ7.48")
  • Net weight 4.7 kg (10.36 lb)
  • Total weight 8 kg (17.64 lb)
