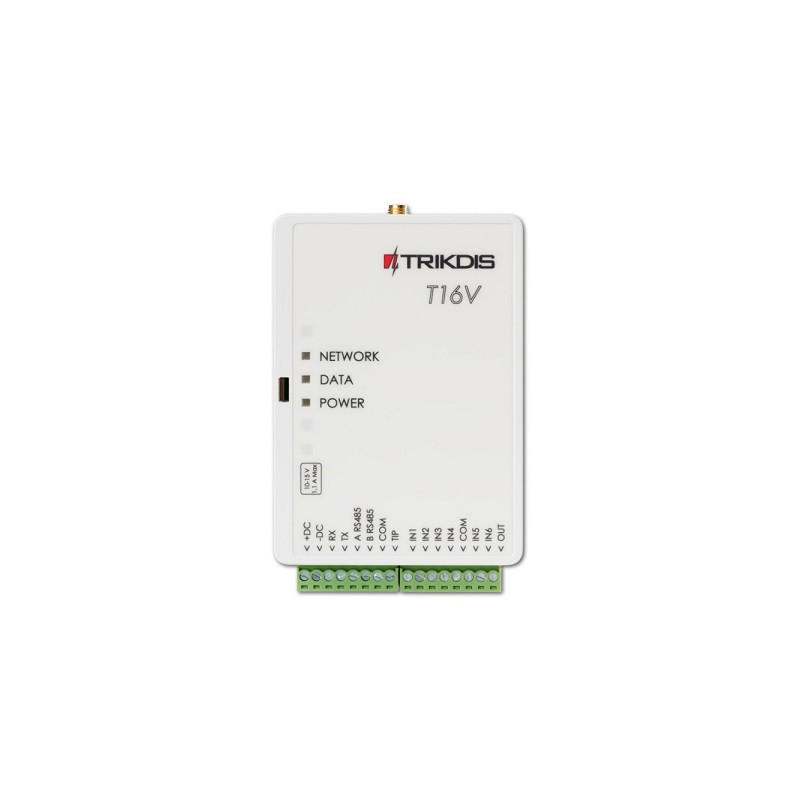

Interference radio transmitter T16
Product reference:
26-RMT16
- With antenna.
- The RS485 interface is designed for IP transmitters and extension modules.
- RAS3, RAS2M, LARS1, LARS radio network protocols.
Interference radio transmitter T16
Product reference:
26-RMT16
- With antenna.
- The RS485 interface is designed for IP transmitters and extension modules.
- RAS3, RAS2M, LARS1, LARS radio network protocols.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Parameters | Description |
| Power source voltage | 10-15 V DC |
| Energy consumption | Up to 50 mA (standby mode) Up to 1.2 A (sending mode) |
| Radio frequencies | 136 MHz - 174 MHz (VHF. T16V transmitter) 430 MHz - 512 MHz (UHF. T16U transmitter) |
| Radio channels | 2 |
| RF output impedance | 50 Ω |
| Secondary emissions | Meets the requirements of EN 300 113 |
| Broadcast protocols | RAS3, RAS2M, LARS, LARS1, LARS_RAS2M, LARS1_RAS2M |
| Broadcast time | 60-400 ms (depends on chosen radio protocol) |
| Memory | Up to 32 messages |
| Input | 6, selectable types: NC, NO, EOL (2.2 kΩ) |
| Output | 1, OC type, commutation voltage 15 V, 1 A |
| Event message format | Contact ID codes 4+2 |
| Environmental conditions | Temperature from -20 °C to +50 °C, relative air humidity 80 % at +20 °C |
| Dimensions | 113 x 71 x 26 mm |
| Weight | 0.10 kg |
| Manufacturer | Trikdis |
| Manufacturer code | RMT16 |
| Weight | 0.1 kg |
