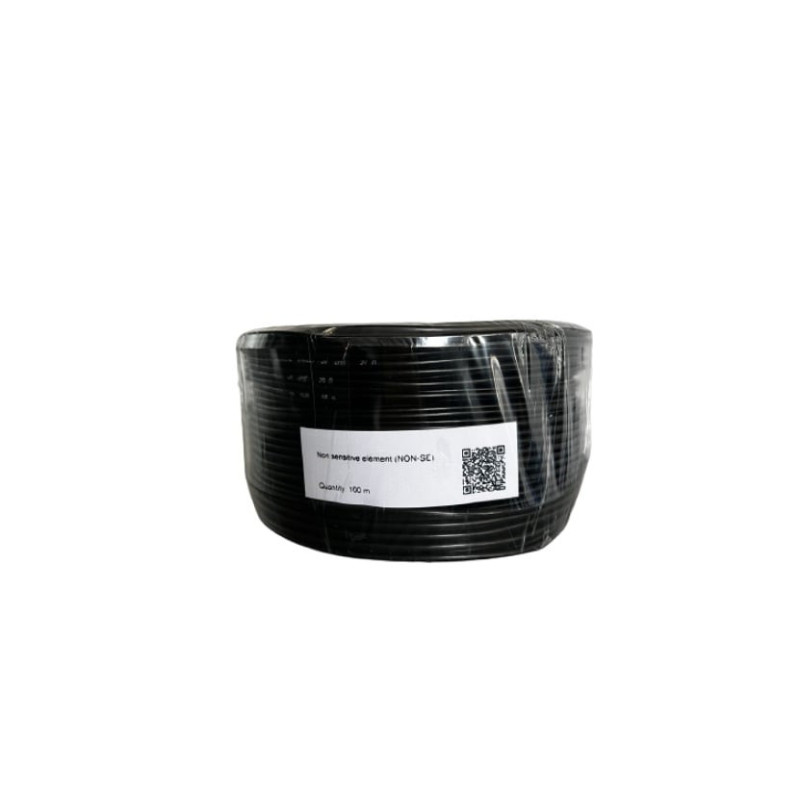

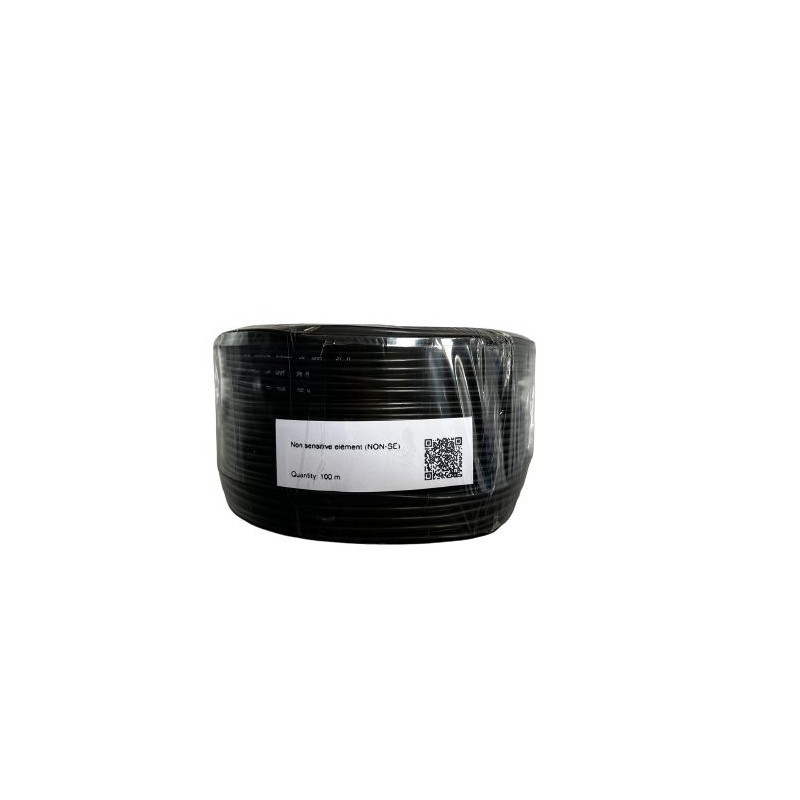

Non sensitive element NON-SE

1. OBJECTIVE

The insensitive element is a part of the TRIBO-S fence protection system that is resistant to deformation and vibration. It is used to transmit signals between the TRIBO-S processor and the sensitive element ( SE-86 ) or to connect two sensitive elements ( SE-86 and SE-86 ) using couplings.

2. GENERAL INFORMATION

The maximum length of the insensitive element in one TRIBO-S processor input channel is 300 meters.
The insulation of the insensitive element is not protected from outdoor weather conditions, therefore this element must be protected using a plastic corrugated pipe when this element is mounted on a fence or underground.

3. INSENSITIVE ELEMENT PROVISION

Installing the TRIBO-S processor near a fence
When the TRIBO-S processor is installed near the fence (in the security room) at a certain distance from the protected fence, where the sensitive elements are installed. In this case, using one TRIBO-S processor, it is possible to protect up to 600 m of fence. The maximum length of sensitive and insensitive elements for one security zone is: SE-86 - 300 meters, NON-SE - 300 meters.
