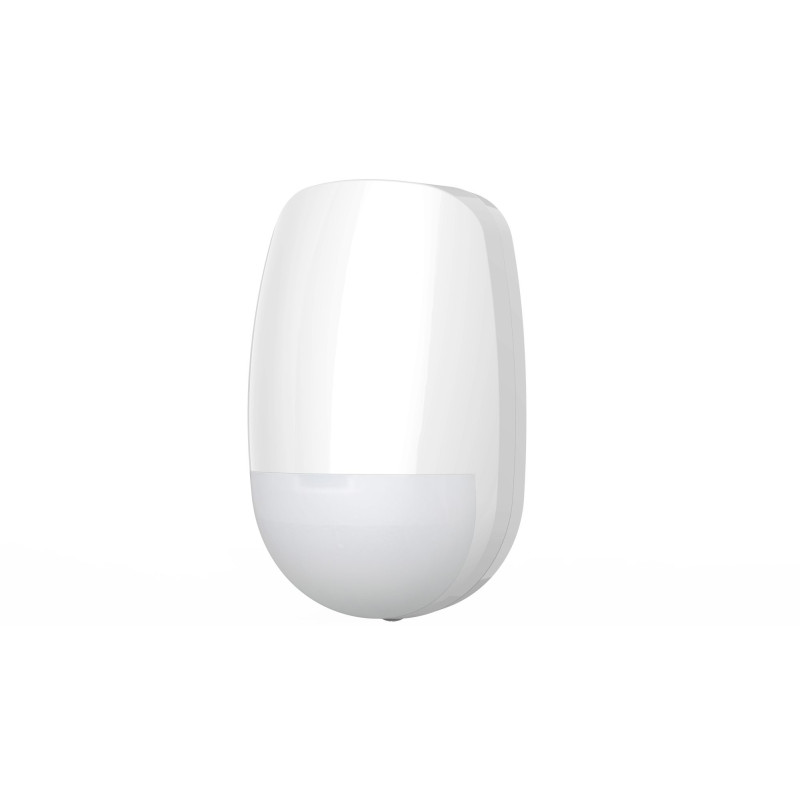

Indoor Ellipse PIR + microwave detector Hikvision ALARM DS-PDD15AM-EG2
Product reference: 26-6931847130428
  • Detection range: 15m / 85.9°
  • Anti-masking, Anti-cloaking and Anti-blocking detection for higher security scenario
  • Automatic sensitivity and 24Ghz smart microwaves
  • Digital temperature compensation and IFT technology
Indoor Ellipse PIR + microwave detector Hikvision ALARM DS-PDD15AM-EG2

Indoor Ellipse PIR + microwave detector Hikvision ALARM DS-PDD15AM-EG2

Product reference: 26-6931847130428
  • Detection range: 15m / 85.9°
  • Anti-masking, Anti-cloaking and Anti-blocking detection for higher security scenario
  • Automatic sensitivity and 24Ghz smart microwaves
  • Digital temperature compensation and IFT technology
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
24,49 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Fixing
  • Fixing method Passive Infrared;Microwave
  • Capture range 15m
  • Locking angle 85.9°
  • Capture zone 52
  • Capture speed 0.3～2m/s
  • Sensitivity Auto;Low
  • White light filter 6500lux
  • Microwave frequency 24GHz(24.15～24.25GHz)
  • Digital temperature compensation Support
  • Dead zone protection Support
  • Features
  • Digital processing Support
  • Closed optics Support
  • Protection against counterfeiting Front
  • Anti-masking Support
  • Anti-cloaking Support
  • Anti-blocking Support
  • Interface
  • Alarm output Normally Closed
  • LED indicator Green(PIR), Red(Microwave), Blue(Alarm)
  • Transmission
  • Transmission method Wired
  • Electrical characteristics
  • Power supply 9 to 16 VDC
  • Voltage 12VDC
  • Energy consumption 25mA Max
  • Home
  • Working conditions (temperature) -10 °C to 55 °C (14 °F to 131 °F)
  • Storage conditions -20 °C to 60 °C (-4 °F to 140 °F)
  • Working conditions (humidity) 10% to 90%
  • Size(WxHxD) 65.7mm (2.59") × 103.8mm (4.09") × 45.5mm (1.79")
  • Weight 100g
  • Mounting height 1.8 m to 2.4 m
  • Installation location Wall
  • Usage Indoor
  • Holder Optional wall ceiling accessories

ManufacturerHikvision
Manufacturer codeDSPDD15AMEG2
Weight0.105 kg
