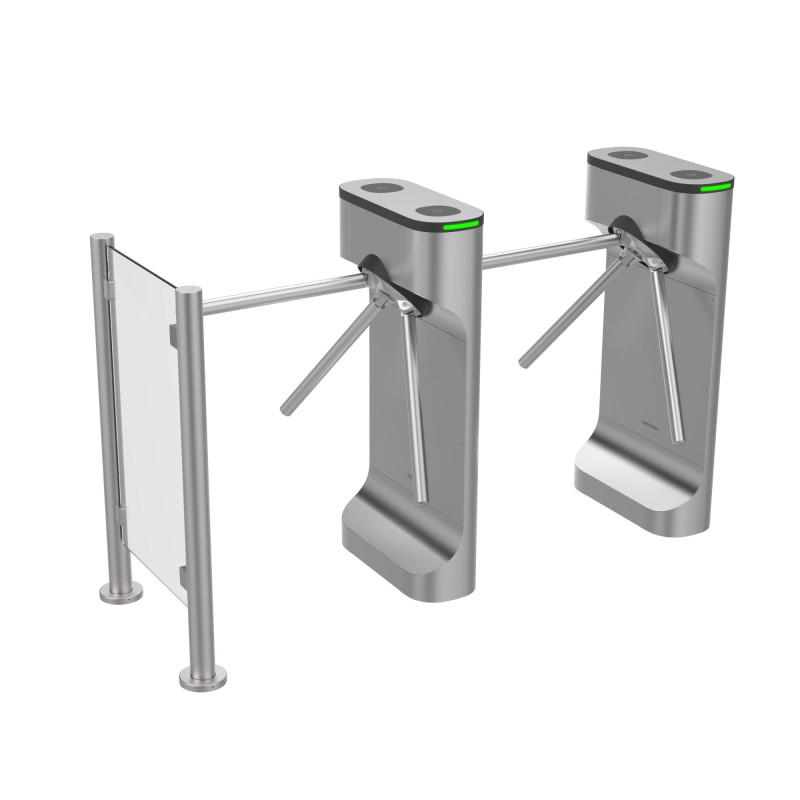

Hikvision turnstile DS-K3G411CX-R / MPa-Dm55 / 868
Product reference: 26-6936422176891
  • Adjustable passage time with automatic cancellation function
  • In case of fire, the barrier automatically lowers for evacuation
  • Two-way passage (entrance/exit)
  • Control via PC and mobile web browser
  • Supports 433 MHz or 868 MHz remote controls
  • Built-in speaker with MP3 voice recordings
Hikvision turnstile DS-K3G411CX-R / MPa-Dm55 / 868

Hikvision turnstile DS-K3G411CX-R / MPa-Dm55 / 868

Product reference: 26-6936422176891
  • Adjustable passage time with automatic cancellation function
  • In case of fire, the barrier automatically lowers for evacuation
  • Two-way passage (entrance/exit)
  • Control via PC and mobile web browser
  • Supports 433 MHz or 868 MHz remote controls
  • Built-in speaker with MP3 voice recordings
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
1 432,34 €
Last product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Authentication
  • Card EM card or M1 card (actual corresponding card type refer to product model names).
  • Capacity
  • Card capacity 500,000
  • Event capacity 500,000
  • Configuration
  • Application environment Indoor
  • Authentication mode Card;Face;QR code
  • Barrier material Stainless steel pipe
  • Bass YES
  • Base model DS-KSM01/G411
  • Card type EM;M1
  • Aisle width 550
  • Module selection YES
  • Movement Protrusion Width 29 mm
  • Pedestal length 502 mm
  • Pedestal width 202 mm
  • Product type Tripod Turnstile
  • Recommended width 550mm
  • Remote controller type 433Mhz;868Mhz
  • Side pedestal YES
  • Side pedestal type fence(130mm)
  • Wall distance 20 mm
  • Function
  • Audio prompt Support
  • Communication protocol ISAPI
  • Configuration via PC Web Support
  • Configuration via mobile Web Support
  • Keyboard remote control Support, 433 MHz/868 MHz, within 50 m
  • Keypad configuration Support
  • General information
  • Approvals CE/CB/RoHS/REACH/WEEE
  • Barrier material 1.2 mm stainless steel pipe
  • Dimensions Without package: 502 mm × 202 mm × 1010 mm (19.8" × 8.0" × 40.0")With package: 700 mm × 430 mm × 1140 mm (27.56" × 16.93" × 44.88")
  • Aisle width 550mm (21.65")
  • Language Arabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Mexico), Spanish (Spain), Thai, Russian, English
  • Base material SUS304 stainless steel 1.2 mm
  • Energy consumption Standby: 20 WWorking: 35 WPeak: 45 W
  • Power supply method Power supply: 100 to 240 VAC~, 50/60 Hz, 1A-0.5A
  • IP protection level /
  • Throughput 30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method.
  • Weight Net: 26.65 kg (58.75 lb) Gross: 32.75 kg (72.2 lb)
  • Working conditions humidity 0% to 95% (No condensation)
  • Operating temperature -20 °C to 65 °C (-4 °F to 149 °F)
  • Hardware
  • Access controller Supplied
  • Interface
  • Alarm output 2
  • Case input 2
  • Exit button 2
  • Fire alarm input 1
  • Shutter control 2
  • Network interface 1
  • RS-232 2
  • RS-485 4
  • Wiegand 2
  • Network
  • Wired network 10/100 Mbps self-adaptive Ethernet
  • System
  • MCBF ≥ 3 million times
  • Engine /

ManufacturerHikvision
Manufacturer codeK3G411CXRMPADM55868
Weight27.25 kg
