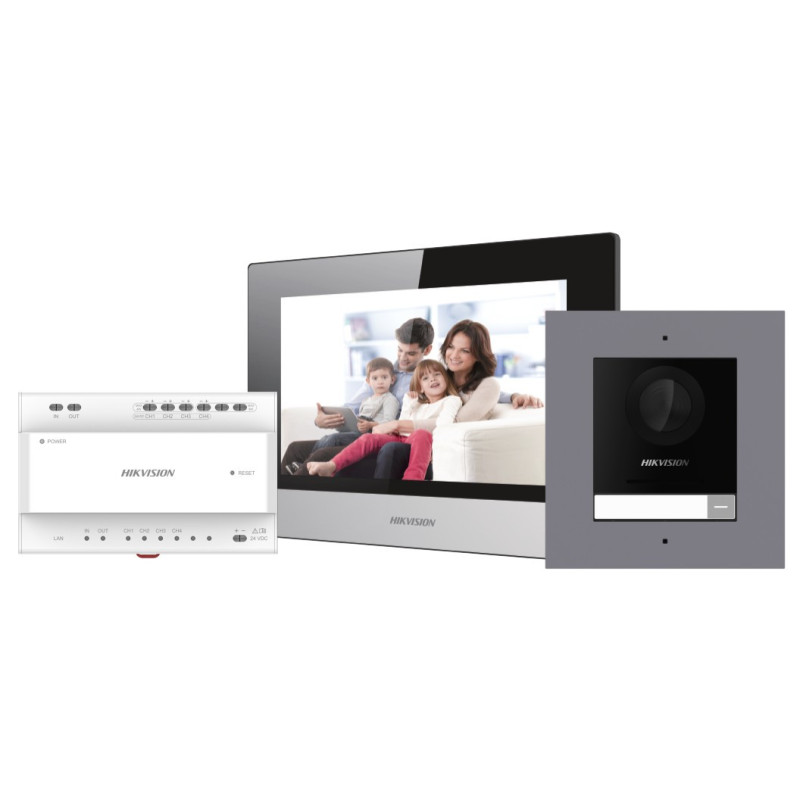

Hikvision SP intercom two-wire kit DS-KIS702Y-P
Product reference:
26-PSMDSKIS702YP
- In the kit:
- DS-KD8003Y-IME2
- DS-KH6320Y-WTE2
- DS-KAD704Y
- 16GB TF
- PSU
Hikvision SP intercom two-wire kit DS-KIS702Y-P
Product reference:
26-PSMDSKIS702YP
- In the kit:
- DS-KD8003Y-IME2
- DS-KH6320Y-WTE2
- DS-KAD704Y
- 16GB TF
- PSU
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Intercom system parameters
- Processor Embedded microcontroller
- Operating system Embedded Linux operating system
- Operation mode One-touch key
- Intercom video settings
- Camera
2MP super definition camera
- Resolution
Main stream: 1920 × 1080, (720p
configurable); sub stream: 720 × 480
- Night vision
Support low light and IR light supplement
in fashion
- Backlight compensation Support
- Digital noise reduction Support
- WDR True WDR
- FOV
Horizontal 146°, vertical 82°
- Video compression standard H.264
- Broadcast
Main stream: 1080p@30fps, 720p@30fps
(configurable); sub stream: D1
- Motion detection Support
- Flash avoidance frequency 50Hz, 60Hz
- Doorbell sound settings
- Audio input Built-in omnidirectional microphone
- Audio output Loudspeaker, 20 cm sound effect > 80 db
- Sound quality Noise suppression and echo cancellation
- Audio compression format G.711 U
- Audio compression 64 Kbps
- Sound on the intercom Full-duplex two-way audio intercom
- Intercom interfaces
- Debug port 1
- RS-485 1 (1 for Hikvision's sub module communication)
- Alarm input 4 (2 exit buttons and 2 door contacts by default)
- Shutter control 2 (2 relays, max to 30 VDC, 2 A)
- Tamper button 1
- Power interface Two-wire
- Doorphone basic settings
- Operating temperature -40 °C to 60 °C (-40 °F to 140 °F)
- Working conditions humidity 10% to 90%
- Size
100 mm × 98 mm × 42 mm (3.94" × 7.8"
× 1.65) "
- Installation Wall mounting
- IP protection class
IP65
- Button 1
- Power input
Powered by KAD704Y or KAD706Y series distributor
- Indoor station system parameters
- Operating system Embedded Linux operating system
- Memory 128MB
- Flash 32MB
- Indoor station display settings
- Screen size 7-inch TFT LCD
- Screen resolution 1024 × 600
- Mode of operation Capacitive touch
- Indoor station audio settings
- Audio input Built-in omnidirectional microphone
- Audio output
Built-in speaker
- Sound quality Noise suppression and echo cancellation
- Volume
Local or software control
- Audio compression format G.711 U, G.711 A
- Audio compression 64 Kbps
- Indoor station network parameters
- Wired network
Two-wire network
- Wireless network Wi-Fi 802.11b/g/n
- Protocols
TCP/IP, SIP, RTSP
- Internal station interfaces
- Web interface
Two-wire interface
- RS-485 1
- Alarm input 8 zones alarm input
- Relay output 2（30V Max.）
- TF card Support, Max. 128 GB
- Basic settings of the indoor station
- Power supply
Powered by KAD704Y or KAD706Y distributor
- Energy consumption ≤ 4W
- Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
- Working conditions humidity 10% to 90%
- Size
200 mm × 140 mm × 23.6 mm (7.87" ×
5.51 × 0.93")"
- Video splitter interfaces
- Web interface
1 RJ45
- Two-wire interface 6 (2 for cascading and 4 for devices)
- Signal indication 6
- Power indication 1
- Reloading 1
- Video splitter
- Power supply 24VDC
- Energy consumption CH1 to CH3＜4 W, CH4＜8 W
- Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working conditions humidity 10% to 90%
| Manufacturer | Hikvision |
| Manufacturer code | PSMDSKIS702YP |
| Weight | 0.965 kg |
