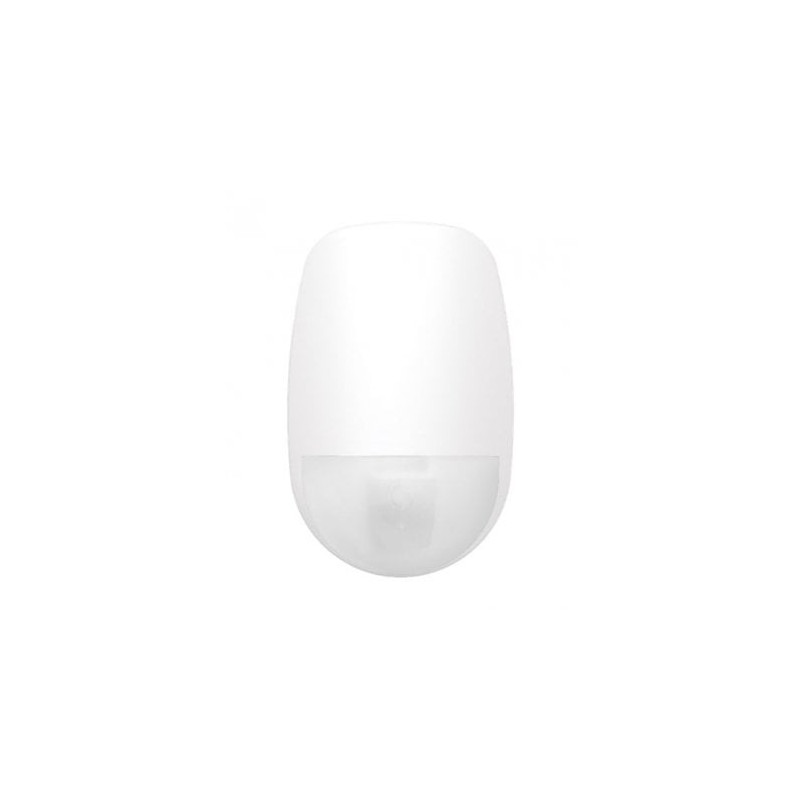

Hikvision PIR wireless motion sensor curtain AX PRO DS-PDC15-EG2-WE(B)
Product reference:
26-6942160434599
- Detection distance: 15m
- Detection angle: 6.3°
- Operating distance up to 1600m (in open space)
- Radio frequency compatibility and immunity to electromagnetic noise
- Battery type: 1 * CR123A battery (battery included, easy to replace)
- Curtain sensor
- Battery life: up to 5 years
- Recommended installation height: 2.4 to 3.6 m
- Bracket/base (sold separately): DS-PDB-IN-Wall bracket, DS-PDB-IN-Ceiling
Hikvision PIR wireless motion sensor curtain AX PRO DS-PDC15-EG2-WE(B)
Product reference:
26-6942160434599
- Detection distance: 15m
- Detection angle: 6.3°
- Operating distance up to 1600m (in open space)
- Radio frequency compatibility and immunity to electromagnetic noise
- Battery type: 1 * CR123A battery (battery included, easy to replace)
- Curtain sensor
- Battery life: up to 5 years
- Recommended installation height: 2.4 to 3.6 m
- Bracket/base (sold separately): DS-PDB-IN-Wall bracket, DS-PDB-IN-Ceiling
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Fixing
- Fixing method Passive Infrared
- Capture range 15m
- Locking angle 6.3°
- Capture zones 18
- Capture speed 0.3～2m/s
- Protection against animal capture None
- White filter 6500lux
- Digital temperature compensation Support
- Protection against ground-crawling creatures Support
- Features
- Digital processing Support
- Closed optics Support
- Protection against counterfeiting Front;Rear
- Environment Temperature Indicator Support
- Signal Strength Indicator Support
- Interface
- Power Switch Power Up Enrollment
- LED indicator Blue (Alarm)
- Transmission
- Transmission Technology Tri-X Wireless
- Transmission method Two-Way RF Wireless
- Transmission Frequency 868MHz
- Transmission Security AES-128 Encryption
- Transmission Range (Free Space) 1.6Km
- Frequency Hopping Support
- Enrollment Method Power up;Remote ID;QR Code
- Electrical characteristics
- Battery life
Up to 5 years (standby time)
- Power supply Battery Powered
- Battery type CR123A × 1
- Rated voltage 3V
- Home
- Working condition temperature -10 °C to 55 °C (14 °F to 131 °F)
- Storage conditions temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Working conditions humidity 10% to 90%
- Dimension(WxHxD) 65.5mm × 103mm × 48.5mm
- Weight 128g
- Mounting height 2.4 to 3.6m
- Installation method Wall
- Application Indoor
- Holder Optional Wall Ceiling Accessory
| Manufacturer code | DSPDC15EG2WEB |
| Manufacturer | Hikvision |
| Weight | 0.128 kg |
