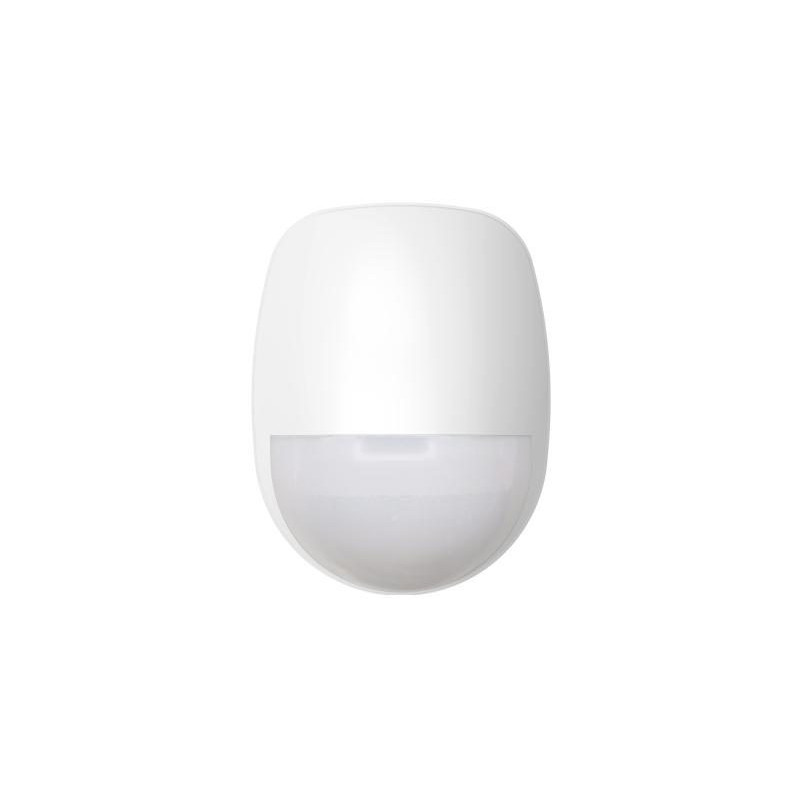

Hikvision PIR motion sensor Ellipse DS-PDP18-EG2(B) (White)
Product reference: 26-6942160475325
  • Type: Motion sensor
  • Model: Hikvision DS-PDP18-EG2(B) Ellipse
  • Detection distance: up to 18 m
  • Detection angle: 85.9°
  • Animal immunity: up to 10 kg
  • Manufacturer: Hikvision
Hikvision PIR motion sensor Ellipse DS-PDP18-EG2(B) (White)

Hikvision PIR motion sensor Ellipse DS-PDP18-EG2(B) (White)

Product reference: 26-6942160475325
  • Type: Motion sensor
  • Model: Hikvision DS-PDP18-EG2(B) Ellipse
  • Detection distance: up to 18 m
  • Detection angle: 85.9°
  • Animal immunity: up to 10 kg
  • Manufacturer: Hikvision
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
8,40 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
Not available
  • Communication
  • Transmission method Wired
  • Detection performance
  • Locking angle 85.9°
  • Detection method Passive Infrared
  • Detection distance 18m
  • Digital processing Support
  • Digital temperature compensation Support
  • Protection against animal capture 10KG
  • Sensitivity adjustment high;auto;low
  • Velocity range 0.3~2m/s
  • White light filter 6500 lux
  • Electrical characteristics
  • Working conditions humidity 10% to 90%
  • Working condition temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Energy consumption Maximum current：12mA @12VDCQuiescent current：11mA @12VDC
  • Power source 9 to 16 VDC
  • Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
  • Typical voltage 12VDC
  • General information
  • Application scenario Indoor
  • Holder Optional wall ceiling accessories
  • Dimension (W×H×D) 65.4mm × 86.8mm × 45.5mm
  • Mounting height 1.8 to 2.4 m
  • Installation method Wall;Ceiling
  • Sealed optics Support
  • Housing PC+ABS
  • Weight 68g
  • Hardware features
  • Alarm output Normally closed
  • Indicator Blue(alarm)
  • Software features
  • Protection against counterfeiting Front

ManufacturerHikvision
Manufacturer codeDSPDP18EG2B
Weight0.07 kg
