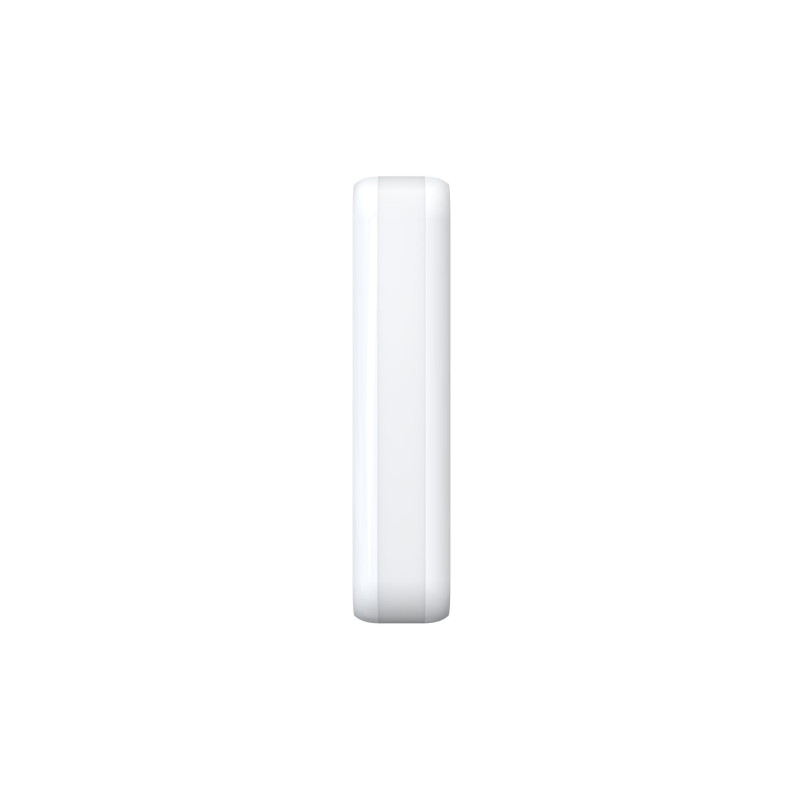

Hikvision PIR AM curtain outdoor motion sensor DS-PDC10AM-EG2-WE AX PRO
Product reference:
26-6931847124670
- Detection distance: 10m
- Detection angle: 5°
- Operating distance up to 1600m (in open space)
- Radio frequency compatibility and immunity to electromagnetic noise
- Battery type: 2 * CR123A battery (battery included, easy to replace)
- Battery life: up to 5 years
- Recommended installation height: 2 to 3.5 m
- Outdoor: IP65
- Anti-masking
Hikvision PIR AM curtain outdoor motion sensor DS-PDC10AM-EG2-WE AX PRO
Product reference:
26-6931847124670
- Detection distance: 10m
- Detection angle: 5°
- Operating distance up to 1600m (in open space)
- Radio frequency compatibility and immunity to electromagnetic noise
- Battery type: 2 * CR123A battery (battery included, easy to replace)
- Battery life: up to 5 years
- Recommended installation height: 2 to 3.5 m
- Outdoor: IP65
- Anti-masking
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Detection capacity
- Detection method Passive Infrared
- Detection range
Wall Mount：10m
Ceiling Mount：5m
- Detection angle 5°
- Detection zones 32
- Detection speed 0.3～2m/s
- Sensitivity Auto;Pet
- White light filtering 6500lux
- Pet resistance
Wall Mount：12Kg
Ceiling Mount:None
- Digital temperature compensation Support
- Creep zone protection Support
- Anti-masking function Support
- Features
- Digital processing Support
- Closed optics Support
- Damage protection Front;Rear
- Ambient temperature display Support
- Signal strength indicators Support
- Direction detection Support
- Interfaces
- Power change Power Up Enrollment
- LED indicators Blue(Alarm), Green+Orange(Mask)
- Transfers
- Transmission technology Tri-X Wireless
- Transmission method Two-Way RF Wireless
- Transmission frequency 868MHz
- Transmission protection AES-128 Encryption
- Transmission distance (open space) 1.6Km
- Frequency hopping Support
- Registration method Power up;Remote ID;QR Code
- Electrical properties
- Standard battery life 5 years in work status (being triggered 20 times per day)
- Energy source Battery Powered
- Battery type CR123A × 2
- Typical voltage 3V
- Home
- Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
- Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
- Moisture resistance 10% to 90%
- IP protection IP65
- Dimensions (WxHxD) 29.2mm × 134.4mm × 39.5mm
- Weight 118.5g
- Mounting height 2 to 3.5m
- Installation method Wall;Ceiling
- Adapted to work Indoor,Outdoor
- Bracket L-shaped adapter included
| Manufacturer | Hikvision |
| Manufacturer code | DSPDC10AMEG2WE |
| Weight | 0.146 kg |
