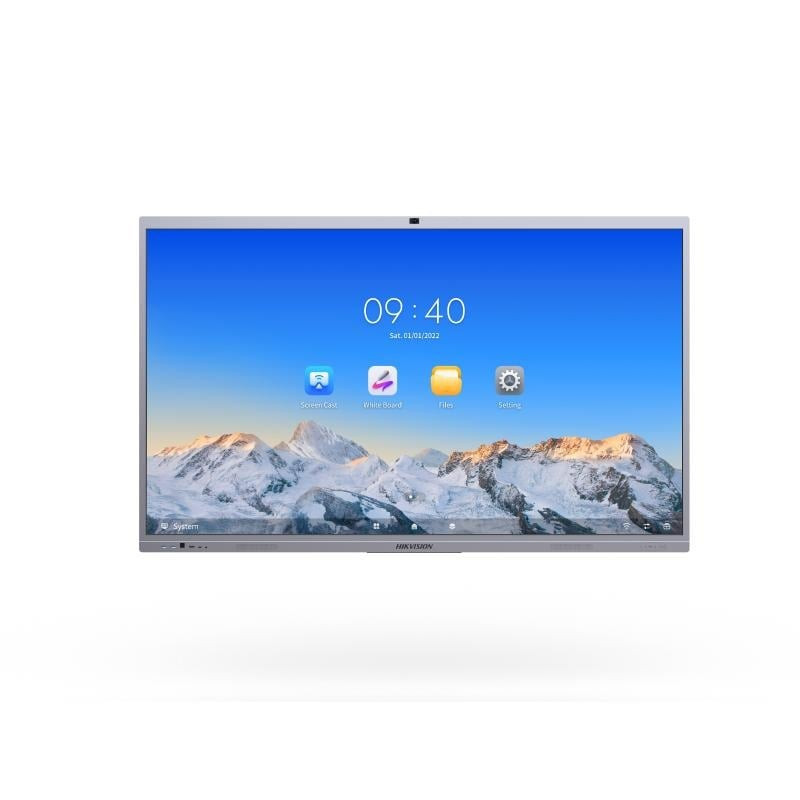

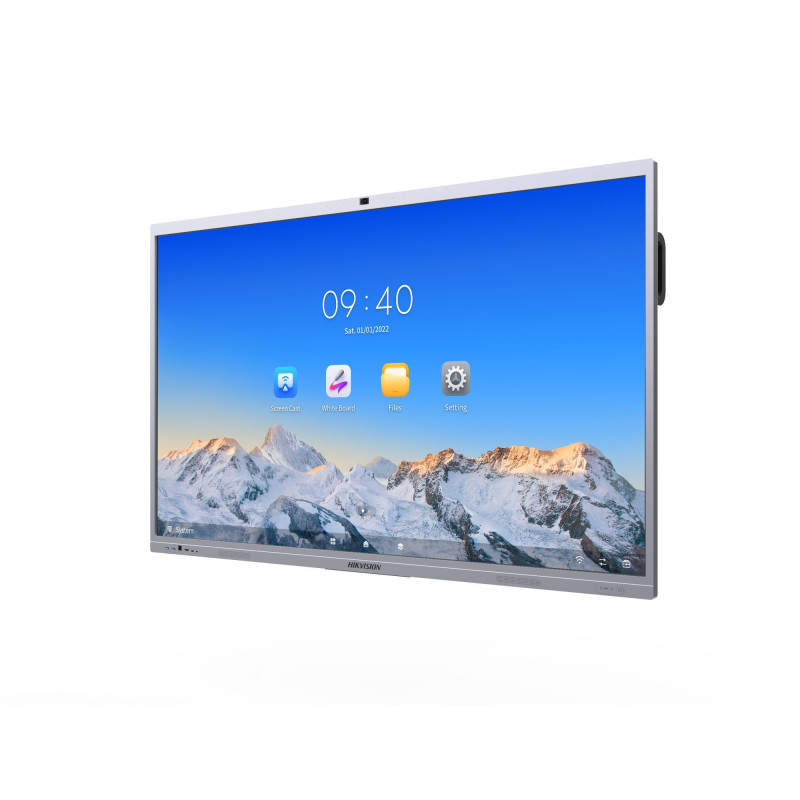

Hikvision interactive display 86" DS-D5C86RB / B(EDLA)
Product reference: 26-6942160466927
  • Smart interactive display 86" Hikvision DS-D5C86RB/B(EDLA)
  • Resolution: 4K, 3840×2160
  • Operating system: Android 13 and Windows
  • Camera: Yes
  • Technology: DLED
  • Refresh rate: 60 Hz
  • Bluetooth: Yes
  • Internal memory: 8GB
  • Speakers: 2 × 25 W + 25 W
  • Capacity: 128GB
Hikvision interactive display 86" DS-D5C86RB / B(EDLA)

Hikvision interactive display 86" DS-D5C86RB / B(EDLA)

Product reference: 26-6942160466927
  • Smart interactive display 86" Hikvision DS-D5C86RB/B(EDLA)
  • Resolution: 4K, 3840×2160
  • Operating system: Android 13 and Windows
  • Camera: Yes
  • Technology: DLED
  • Refresh rate: 60 Hz
  • Bluetooth: Yes
  • Internal memory: 8GB
  • Speakers: 2 × 25 W + 25 W
  • Capacity: 128GB
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3 76859 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Product model
  • Product model DS-D5C86RB/B
  • Screen
  • Screen size 86 inches
  • Backlight DLED
  • Point step 0.1645（H）× 0.4935（V）mm
  • Resolution 3840 × 2160 @60Hz
  • Brightness 400 cd/m² (Typ.)
  • Color depth 10 bits
  • Color depth 1.07 G
  • Reaction time 5ms
  • Panel type VA
  • Contrast ratio

    5000:1 (Static)

    30,000:1 (Dynamic)
  • Color range 72% NTSC (CIE1931) (Typ.)
  • Update frequency 60Hz
  • Viewing angle 178° (H)/178° (V)
  • Screen aspect ratio 16:9
  • Surface hardness

    9H (Pencil)

    7 (Mohs)
  • Surface glass Anti-Glare Glass
  • Surface haze 25% Haze
  • Glass joining method Zero Lamination
  • Screen area 1895.04mm ╳ 1065.96mm
  • Working time 7 × 16 H
  • Transmission coefficient 88% ± 3
  • Lifetime 50,000 hours
  • Touch
  • Type Infrared Touch Screen
  • Touch point Up to 50-point multi-touch
  • Touch response time ≤ 2ms
  • Minimal touch object ≥ 1.5 mm (≥ 90% touching area)
  • Touch accuracy ± 0.5 mm (≥ 90% touching area)
  • Touch resolution 32767 × 32767
  • Internal systems
  • Operating system Android 13.0
  • Memory 8GB
  • Internal memory 128GB
  • Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
  • GPU Mali-G610 MC4
  • HDCP version 2.3
  • Camera
  • Pixel Pixel 48MP for Photos 8MP for Video
  • Camera function Support intelligent switching between Android system, OPS, and PC.
  • Field angle 120°(diagonal), 110°(horizontal), 75°(vertical)
  • Distortion ≤2.5%
  • Camera resolution ratio Up to 4K
  • Microphone
  • Specification Omni-directional 8-array layout
  • Microphone function Echo reduction and smart noise-cancellation
  • Voice distance 12 years
  • Sampling frequency 32K
  • Microphone depth 16 bits
  • Internal function
  • Loudspeaker Built-in 2 × 20 W+25W loudspeaker;
  • Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
  • NFC Support screen mirroring by Android phones
  • Light sensor Yes
  • Photo processing technology Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction.
  • Audio processing technology Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
  • Interface
  • Video Audio Input HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
  • Video audio output HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
  • Control interface TOUCH-USB 3.0 × 3, RS232 × 1
  • Network interface

    LAN (1000Mbps) × 2

    WIFI AP Station, 2.4G/5G

    WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
  • Data transmission interface USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
  • System parameters
  • Power supply 100 to 240 VAC, 50/60 Hz
  • Standby power consumption ≤ 0.5W
  • Average costs < 205W
  • Home
  • VESA 800mm × 600mm （4 × M8-25mm）
  • Product dimensions 1960.5 mm × 1173.7 mm × 82.5 mm
  • Appendix Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), power cable, bluetooth remote control.
  • Packaging Dimensions (W × H × D) 2197mm × 284mm × 1376mm
  • Weight without packaging 65.13 kg
  • Weight with packaging 82.6 kg
  • Work environment
  • Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Moisture resistance 10%~90% RH

Weight75.13 kg
