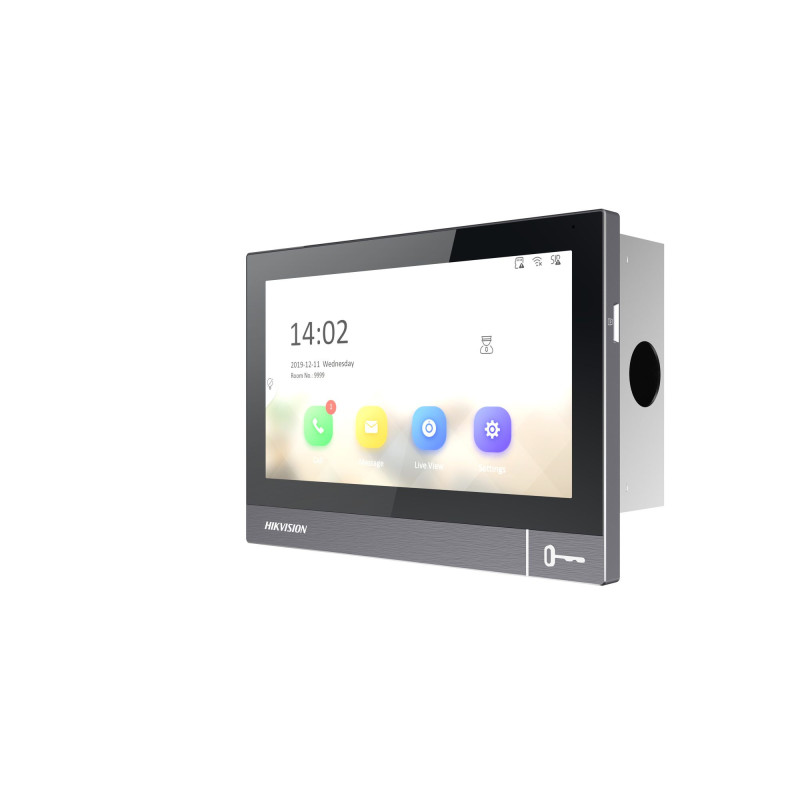

Hikvision flush-mounted monitor DS-KH8381-WTE1 / Flush (black)
Product reference:
26-PSMDSKH8381WTE1FL
- 7-inch IPS touch screen with 1024 × 600 resolution
- Metal body
- One physical button for convenient door opening
- Convenient control app Hik-Connect
- Ability to receive calls, open doors and monitor the image remotely
- Standard IEEE802.3at PoE power and lock power
- Supports connection of up to 16 internal monitors
- Elevator access control
- Installation: surface and recessed
- Wide selection of interfaces: alarm input, RS-485, relays, TF card slot
- The kit includes an inlet box
Hikvision flush-mounted monitor DS-KH8381-WTE1 / Flush (black)
Product reference:
26-PSMDSKH8381WTE1FL
- 7-inch IPS touch screen with 1024 × 600 resolution
- Metal body
- One physical button for convenient door opening
- Convenient control app Hik-Connect
- Ability to receive calls, open doors and monitor the image remotely
- Standard IEEE802.3at PoE power and lock power
- Supports connection of up to 16 internal monitors
- Elevator access control
- Installation: surface and recessed
- Wide selection of interfaces: alarm input, RS-485, relays, TF card slot
- The kit includes an inlet box
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Audio settings
- Audio compression bit rate 16、32、64 Fps
- Audio compression format G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio input 1 built-in omnidirectional microphone
- Audio output 1 built-in speaker
- Sound quality Noise suppression and echo cancellation
- Volume adjustment Adjustable
- Capacity
- Linked doorphone capacity /
- Linked add-on cache 16
- Linked network camera capacity 16
- Message capacity TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Note capacity 200
- Interfaces
- Alarm input 8
- Alarm output /
- Debug port 1
- Shutter control 4 relays, Max. 30 VDC 1A
- Web interface 1 RJ-45 10/100 Mbps self-adaptive
- Power supply output Max. 12 VDC 0.5 A
- RS-485 1
- Relay 4
- TAMPER /
- TF card Support TF card, up to 128G
- USB /
- Display settings
- Mode of operation Capacitive touch screen
- Resolution 1024*600
- Screen size 7-inch
- Type Colorful IPS
- General information
- Application environment Indoor
- Battery /
- Button 1 physical button(s)
- Size 180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86")
- Indicator /
- Installation Flush mounting, surface mounting, table mounting
- Language English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
- Material Die-cast integrated aluminum alloy casing
- Energy consumption ≤ 12W
- Power supply IEEE802.3at, Standard PoE,12 VDC, 1.5 A
- IP protection level /
- Weight Without package: 412.2 g (0.909 lb)
- Working conditions humidity 10% to 90% (non-condensing)
- Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
- Internet settings
- 3G/4G /
- Bluetooth /
- Internet protocols TCP/IP, SIP, RTSP
- Wi-Fi WiFi 802.11b/g/n
- Wireless network 1 RJ-45 10/100Mbps self-adaptive
- Zigbee /
- System parameters
- Operating system Embedded Linux operating system
- Processor Embedded high-performance processor
- RAM 128MB
- ROM 32MB
- Image settings
- FOV /
- Focal length /
- Lens /
- Resolution /
- Image compression format H.265；H.264
- Wide dynamic range (WDR) /
| Manufacturer | Hikvision |
| Manufacturer code | PSMDSKH8381WTE1FL |
| Weight | 0.41 kg |
