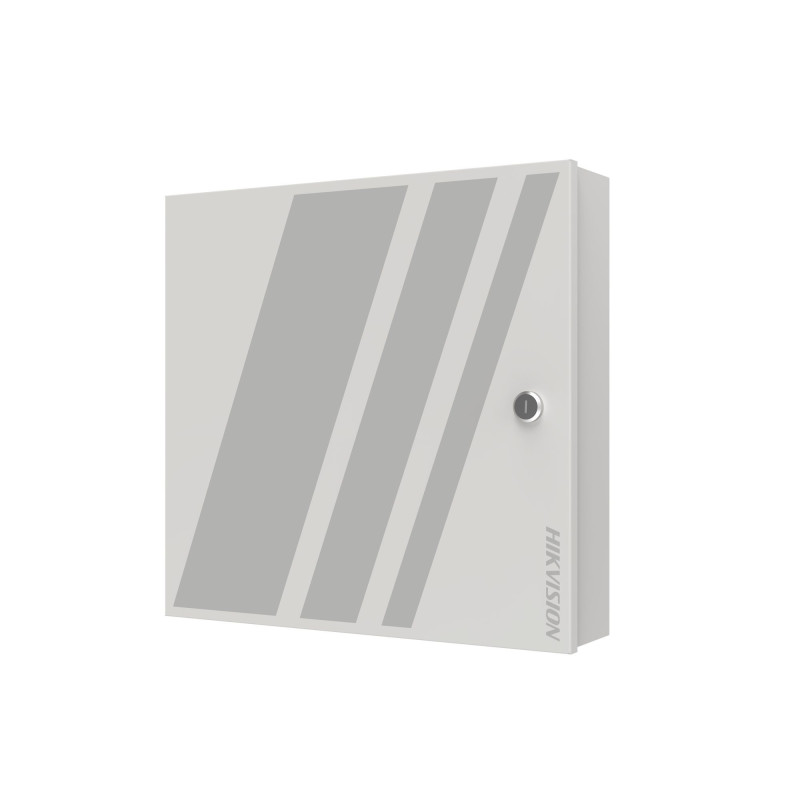

Hikvision entrance controller DS-K2701X
Product reference: 26-6942160449111
  • Type: Door controller
  • Model: DS-K2701X
  • Door control: 1 door
  • Connectors: 2x Wiegand, 7x RS485, TCP/IP
  • Event capacity: 600,000 events
  • User memory: 100,000 users
  • Housing: Metal
  • Power supply: 220V AC
Hikvision entrance controller DS-K2701X

Hikvision entrance controller DS-K2701X

Product reference: 26-6942160449111
  • Type: Door controller
  • Model: DS-K2701X
  • Door control: 1 door
  • Connectors: 2x Wiegand, 7x RS485, TCP/IP
  • Event capacity: 600,000 events
  • User memory: 100,000 users
  • Housing: Metal
  • Power supply: 220V AC
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
315,97 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • System
  • Operating system Linux
  • Internet
  • Wired internet 1, 10/100/1000 Mbps self-adaptive
  • Interface
  • Web interface 1
  • Shutter control 1
  • Exit button 1
  • Door contact input 1
  • Alarm input 2
  • Alarm output 2
  • TAMPER 1
  • RS-485 7, 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
  • Wiegand 2, standard 26/34 input, supports custom Wiegand settings
  • USB 1, USB 2.0
  • Fire interface 1
  • Capacity
  • User capacity 100,000
  • Fingerprint capacity 10,000
  • Card capacity 200,000
  • Event capacity 600,000
  • Linked door capacity

    Self: 1 doors

    Extended: up to 125 doors (connected with 62 access modules)
  • Linked card reader capacity 2 RS-485 card readers (OSDP protocol) and 2 Wiegand card readers
  • Authentication
  • Fingerprint recognition time < 1s
  • Home
  • Indicator 9 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 1 for door status
  • Battery Charge and discharge
  • Power supply 100VAC to 240VAC
  • Energy consumption ≤ 42W
  • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Working conditions humidity 0% to 90% (No condensation)
  • Installation Wall mounting
  • Language English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
  • Features
  • Configuration via Web browser Support
  • Multi-factor authentication Support
  • First person in Support
  • Anti-passback Support 32 routes (64 card readers each)
  • Multi-door interlocking Support 32 groups (32 doors each)

ManufacturerHikvision
Manufacturer codePSKDSK2701X
Weight3 kg
