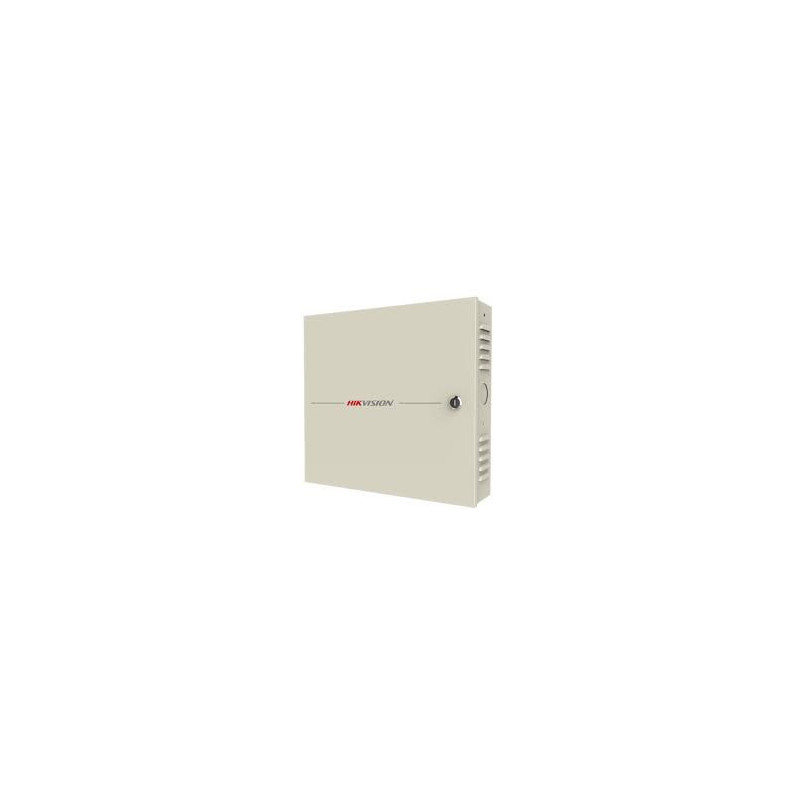

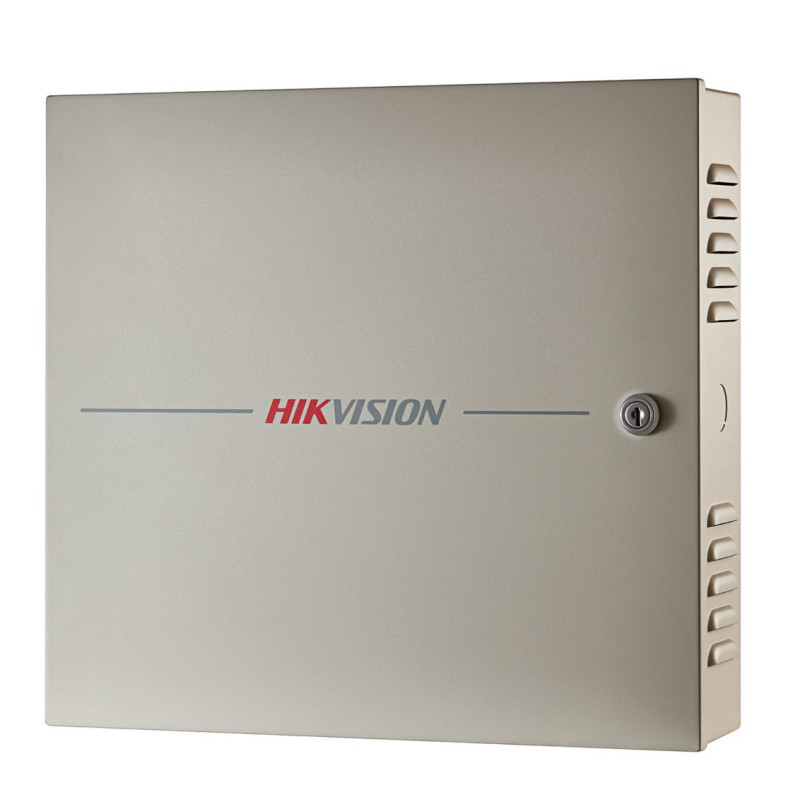

Hikvision entrance controller DS-K2604T
Product reference:
26-6941264037163
- Door control: 4 doors
- User capacity: 100,000 cards (including 3,000 visitors)
- Event capacity: 300,000 records
- Configuration only via iVMS-4200 (works only with windows operating system)
- Interfaces: 8 RS-485 readers, 4 Wiegand
- Main functions: Cross-controller anti-passback, multi-door locking, super card/password, alarm functions
- Management: Offline support, data storage even without power
- Power supply: 100-240V AC
- Working temperature: -20°C to 65°C
- Largest possible battery: 7ah 151 x 65 x 97.5 mm (battery not included)
Hikvision entrance controller DS-K2604T
Product reference:
26-6941264037163
- Door control: 4 doors
- User capacity: 100,000 cards (including 3,000 visitors)
- Event capacity: 300,000 records
- Configuration only via iVMS-4200 (works only with windows operating system)
- Interfaces: 8 RS-485 readers, 4 Wiegand
- Main functions: Cross-controller anti-passback, multi-door locking, super card/password, alarm functions
- Management: Offline support, data storage even without power
- Power supply: 100-240V AC
- Working temperature: -20°C to 65°C
- Largest possible battery: 7ah 151 x 65 x 97.5 mm (battery not included)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
Uplink Communication Interface | TCP/IP, RS-485 |
Downlink Communication Interface | RS-485, Wiegand(W26/W34) |
Accessible Card Reader | DS-K2604: 8 Card Readers (RS485 Interface); 4 Card Readers (Wiegand Interface) |
Built-In Clock | Yes |
General |
|
Working Temperature | -20°C to +65°C (-4°F to +149°F) |
Power Dissipation(With Load) | DS-K2604: ≤100W |
Power Dissipation (Without Load) | ≤4W |
LED Indicator | Power Supply Status, Communication Status, Working Status |
Dimensions (L×W×H) | 370mm x 345mm x 90mm (14.6" x 13.6" x 3.5") |
Processor | |
Storage | Cards: 100,000 Access Control Events: 300,000 |
Input Interface | DS-K2604: Alarm Input × 4, Door Sensor × 4, Exit Button × 4, Case Input × 8, Tamper Alarm × 1
|
Output Interface | DS-K2604: Lock Relay × 4, Alarm Relay × 4 |
| Manufacturer code | PSKDSK2604T |
| Manufacturer | Hikvision |
| Weight | 4.797 kg |
