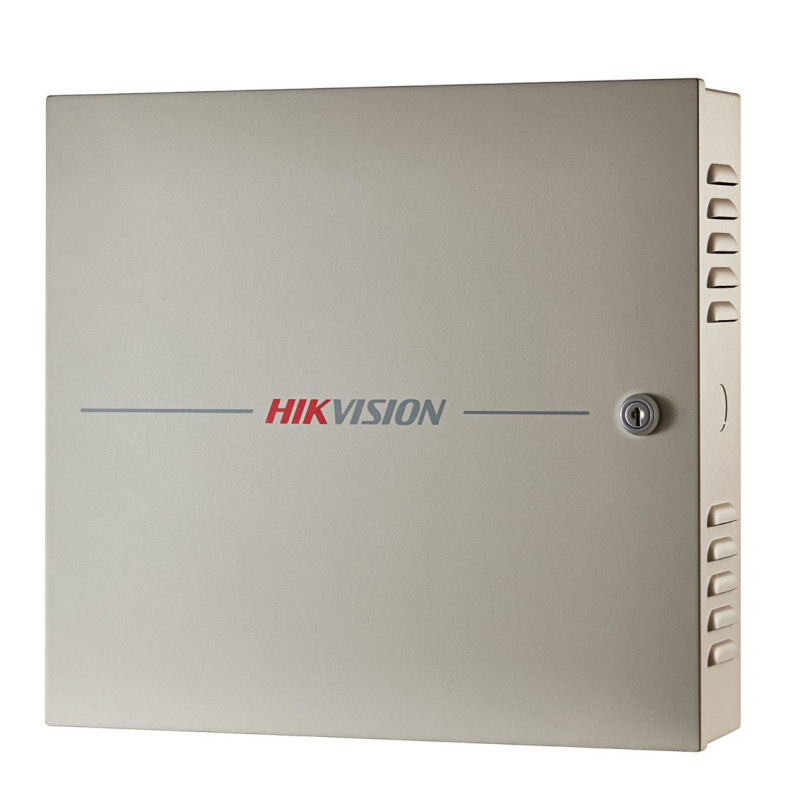

Hikvision entrance controller DS-K2601T
Product reference: 26-6941264037194

  • Door control: 1 door
  • User capacity: 100,000 cards (including 3,000 visitors)
  • Event capacity: 300,000 records
  • Configuration only through iVMS-4200 (works only with windows operating system)
  • Interfaces: 2 RS-485 readers, 2 Wiegand
  • Main functions: Cross-controller anti-passback, multi-door locking, super card/password, alarm functions
  • Management: Offline support, data storage even without power
  • Power supply: 100-240V AC
  • Working temperature: -20°C to 65°C
  • Maximum possible battery: 7ah 151 x 65 x 97.5 mm (battery not included)
Hikvision entrance controller DS-K2601T

Hikvision entrance controller DS-K2601T

Product reference: 26-6941264037194

  • Door control: 1 door
  • User capacity: 100,000 cards (including 3,000 visitors)
  • Event capacity: 300,000 records
  • Configuration only through iVMS-4200 (works only with windows operating system)
  • Interfaces: 2 RS-485 readers, 2 Wiegand
  • Main functions: Cross-controller anti-passback, multi-door locking, super card/password, alarm functions
  • Management: Offline support, data storage even without power
  • Power supply: 100-240V AC
  • Working temperature: -20°C to 65°C
  • Maximum possible battery: 7ah 151 x 65 x 97.5 mm (battery not included)
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
210,89 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

Operating voltage

DC 12V/1A

Current

≤50W

Processor

32-bit

Capacity

16M

Uplink communication interface

TCP/IP Network Interface and RS-485 Interface

Downlink communication interface

RS-485 and Wiegand

(w26/w34)

Memory

card information:

100,000(200,000 expandable)

access control events: 300,000 (600,000 expandable)

LED Indication

Power Supply Status, Communication Status, Working Status

Built-in clock

Yes

Reading access cards

2 Card Readers (RS485 Interface) and

2 Card Readers (Wiegand Interface) Connectable

Input interface

Alarm Input×4,

Door Magnetic×1,

Door Switch×1,

Case Input×2, Tamper-proof×1

Output interface

Door Switch Relay×1, Alarm Relay×1

Working temperature

-20°C to +65°C

(-4°F to +149°F)


ManufacturerHikvision
Manufacturer codePSKDSK2601T
Weight4.1 kg
