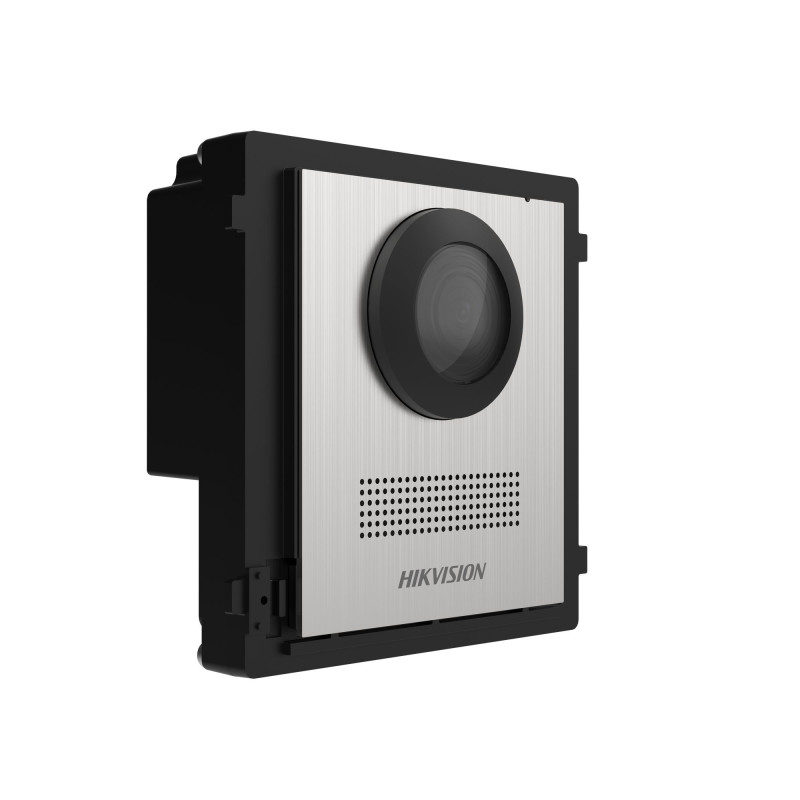

Hikvision DS-KD8003-IME1(B) / NS (Without call button)
Product reference: 26-PSKDSKD8003IME1BNS
  • Modular passage system
  • 2 MP HD video camera
  • Fisheye camera
  • 2 relay outputs
  • Without call button
  • 4 alarm outputs
  • IP65
Hikvision DS-KD8003-IME1(B) / NS (Without call button)

Hikvision DS-KD8003-IME1(B) / NS (Without call button)

Product reference: 26-PSKDSKD8003IME1BNS
  • Modular passage system
  • 2 MP HD video camera
  • Fisheye camera
  • 2 relay outputs
  • Without call button
  • 4 alarm outputs
  • IP65
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
126,91 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • System parameters
  • Operating system Embedded Linux operating system
  • ROM 32MB
  • RAM 256MB
  • CPU Embedded Processor
  • Display settings
  • Screen size NA
  • Mode of operation NA
  • Type NA
  • Resolution NA
  • Image settings
  • Additional lighting Low illumination, IR supplementary lights
  • Video standard H.264
  • Lens 1
  • FOV Horizontal: 146°, Vertical: 82°
  • WDR

    Support
  • Resolution 2 MP
  • Audio settings
  • Audio input

    Built-in omnidirectional microphone
  • Audio compression format G.711 U, G.711 A
  • Audio output Built-in speaker
  • Audio compression bit rate 64 Kbps
  • Sound quality Noise suppression and echo cancellation
  • Volume adjustment Adjustable
  • Capacity
  • Fingerprint capacity /
  • User capacity 2000
  • Card capacity 6000
  • Capacity of recognized faces NA
  • Associated indoor station capacities 500
  • Event capacity /
  • Sub-door station capacity 16
  • Internet settings
  • Communication protocol TCP/IP, RTSP
  • Wired internet 10/100 Mbps self-adaptive Ethernet
  • Wi-Fi NA
  • Bluetooth NA
  • 3G/4G NA
  • Interfaces
  • Alarm input 4 (2 exit buttons and 2 door contacts by default)
  • Web interface 1 RJ45
  • TAMPER 1
  • Exit button 2 (2 for lock control)
  • Door contact input 1
  • RS-485 1 (1 for Hikvision's sub module communication)
  • Wiegand NA
  • TF card NA
  • Alarm output NA
  • Shutter control 2 (2 relays)
  • USB NA
  • Power interface 12 VDC Power Input (max to 12 V, 500 mA)
  • Two-wire IP interface NA
  • Home
  • Power supply 12 VDC/PoE (IEEE 802.3af)
  • Operating temperature -40° C to 60° C (-40° F to 140° F)
  • Working conditions humidity 10% to 95%
  • Button 0
  • IP protection level IP65
  • Installation Surface mounting flush mounting
  • Size 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
  • Language English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
  • Indicator 0
  • Weight

    Without package: 0.410 kg

    With Package: 0.581 kg
  • Battery /
  • Application environment Outdoor
  • Energy consumption ≤ 5W

ManufacturerHikvision
Manufacturer codePSKDSKD8003IME1BNS
Weight0.41 kg
