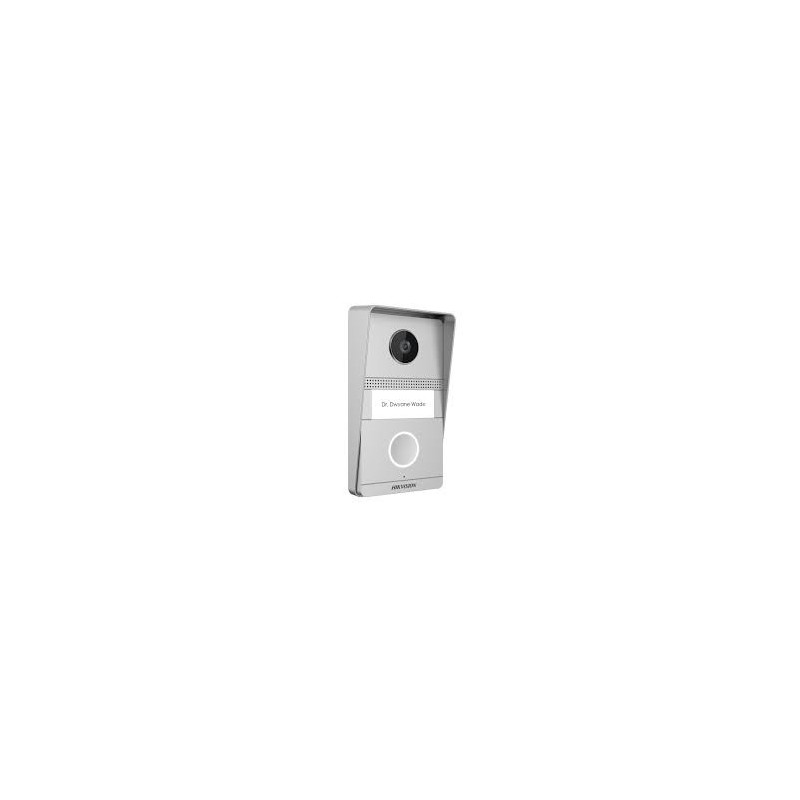

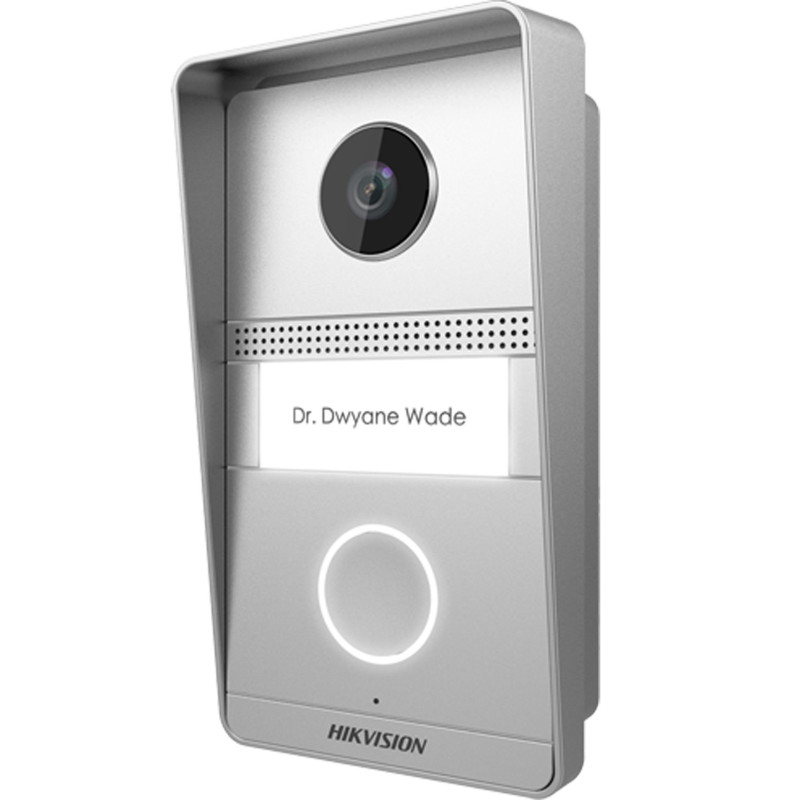

Hikvision doorbell DS-KV1101-ME2 / flush-mounted
Product reference: 26-6941264079156
  • 2-wire system
  • 2MP HD color camera
  • IP65
  • IK7
  • 2 relay locks
Hikvision doorbell DS-KV1101-ME2 / flush-mounted

Hikvision doorbell DS-KV1101-ME2 / flush-mounted

Product reference: 26-6941264079156
  • 2-wire system
  • 2MP HD color camera
  • IP65
  • IK7
  • 2 relay locks
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
15341 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • System settings
  • Operating system Embedded Analog operation system
  • ROM /
  • RAM /
  • CPU

    /
  • Display system
  • Screen size /
  • Method of operation /
  • Type /
  • Resolution /
  • Image settings
  • Auxiliary light White light supplement
  • Video standards /
  • Lentils Low Illumination 2 MP HD IR Camera
  • FOV Horizontal: 100°, Vertical: 69°
  • WDR

    Support
  • Resolution

    Main stream: 1920 × 1080

    Sub stream : 720 × 480
  • Audio settings
  • Audio input Built-in omnidirectional microphone
  • Audio compression standards /
  • Audio output

    Built-in loudspeaker (More than 85 dB within 20 cm)
  • Audio compression bit rate /
  • Sound quality /
  • Image adjustment Adjustable with screwdriver
  • Capacity
  • Fingerprint capacity /
  • User capacity /
  • Face capacity /
  • Capacity of connected stations /
  • Event capacity /
  • Network capacity
  • Connection protocols

    /
  • Wireless network /
  • Wi-Fi /
  • Bluetooth /
  • 3G/4G /
  • Device interface
  • Warning signal interface 4
  • Network interface /
  • TAMPER 1
  • Power button 2
  • RS-485 /
  • USB /
  • Wiegand /
  • TF cards /
  • Warning signal output /
  • Shutter control 2, locking time can be adjusted via DIP switch (Max. 7 s)
  • Door contact input 2
  • Energy interface /
  • DIP switch 4
  • Home
  • Buttons 1
  • Installation Flush mounting
  • Indicators /
  • Weight

    With package: 508.1 g

    Without package: 355.2 g
  • Protection level IP65, IK7
  • Operating temperature

    -30 °C to +60 °C (-22 °F to 140 °F)
  • Working humidity resistance

    10% to 90%
  • Dimensions 150 mm × 82 mm × 23.5 mm (5.91" × 3.23" × 0.93")
  • Battery /
  • Energy source 48 VDC, 0.5 A
  • Environmental conditions Outdoor
  • Energy consumption ≤ 12W

Manufacturer codeDSKV1101ME2F
ManufacturerHikvision
Weight0.363 kg
