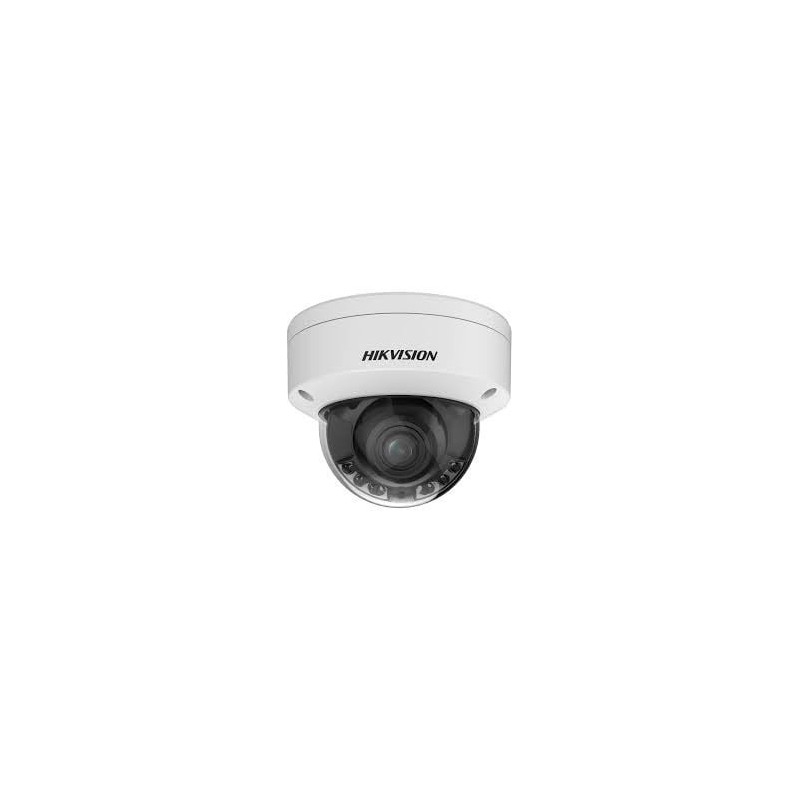

Hikvision dome DS-2CD2787G2T-LZS F2.8-12 (white, 8 MP, IR, LED up to 40m, ColorVu, Darkfighter)

Product reference: 26-6931847185015

Hikvision dome DS-2CD2787G2T-LZS F2.8-12 (white, 8 MP, IR, LED up to 40m, ColorVu, Darkfighter)

Product reference: 26-6931847185015

You have 3 products in compare list, please remove someone and try again

Add to compare

30108 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Lens
Lens type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length FOV 2.8 to 12 mm, horizontal FOV 103.3° to 40°, vertical FOV 52.7° to 22.3°, diagonal FOV 127.9° to 46.1°
Lens installation Integrated
Focusing Auto,Semi-auto,Manual
Iris type DC iris
Aperture Max. F1.0
Depth of field 2.4 m to ∞

DOROUS
DOROUS
Wide: D: 96 m, H: 38.1 m, R: 19.2 m, I: 9.6 m
Tele: D: 160 m, O: 63.5 m, R: 32.0 m, I: 16 m

Main stream
50Hz:
25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
60Hz:
24fps (3840×2160)
30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Secondary flow
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third stream
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
Image compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video bit rate 32 Kbps to 16 Mbps
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Bit rate control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream

Sound
Audio type Mono sound
Audio compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio sampling frequency 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Removing extraneous sounds Yes

Internet
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket，WebSockets
Live video viewing Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Internal memory
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Customer iVMS-4200, Hik-Connect, Hik-Central
Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night mode Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
SNR ≥ 52 dB
Photo beautification BLC,HLC,3D DNA
Privacy mask 4 regions of privacy mask

Interface
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Sound
1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
Reboot button Yes

Features
Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart features Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, supplement light, audible warning, trigger alarm output

Home
System parameters
12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: 802.3at, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
Material Metal
Size

Ø155mm × 152mm (Ø6.1 × 6.0\")"
Package size 227 mm × 198 mm × 220 mm (8.9" × 7.8" × 8.7")
Weight Approx. 1525 g (3.4 lb.)
Weight with packaging Approx. 2105 g (4.6 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Main functions Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams

Approvals
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Security
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU
Protection IP67: IEC 60529-2013, IK10: IEC 62262:2002

Weight

1.69 kg
