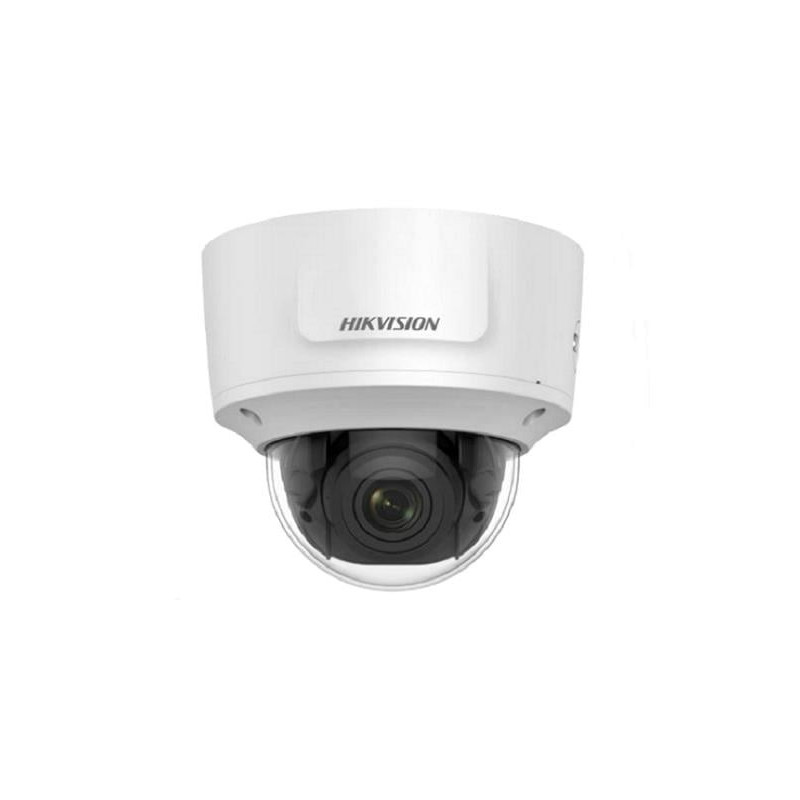

Hikvision dome DS-2CD2747G2H-LIPTRZS2U / SL F2.8-12 (white, 4 MP, 40 IR, ColorVu)

Product reference: 26-311327030

Hikvision dome DS-2CD2747G2H-LIPTRZS2U / SL F2.8-12 (white, 4 MP, 40 IR, ColorVu)

Product reference: 26-311327030

You have 3 products in compare list, please remove someone and try again

Add to compare

553,48 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!

Fill in the required fields*

Camera
Sensor 1/1.8" Progressive Scan CMOS
Max resolution 2688 × 1520
Min. lighting Color: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
Shutter speed 1/3 s to 1/100,000 s
Day Night IR cut filter
Changing the angle
Remote adjustment (Max. 1000 cycles)
Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°

Lens
Lens type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
Lens installation Integrated
Iris type Fixed
Aperture Max. F1.2
Depth of field 1 m to ∞

DOROUS
DOROUS
Wide: D: 61.5 m, H: 24.4 m, R: 12.3 m, I: 6.2 m
Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.1 m

Main stream
50Hz:
25 fps (2688×1520, 1920×1080, 1280×720)
60Hz:
30fps (2688×1520, 1920×1080, 1280×720)
Secondary flow
50Hz:
25 fps (1280×720, 640×480, 640×360)
60Hz:
30fps (1280×720, 640×480, 640×360)
Third stream
50Hz:
10 fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz:
10 fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Image compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 8 Mbps
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Bit rate control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Sound
Audio compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio sampling frequency 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Removing extraneous sounds Yes

Internet
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Live video viewing Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Customer iVMS-4200, Hik-Connect, Hik-Central
Browser
Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night mode Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Privacy mask 4 programmable polygon privacy masks

Interface
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in microphone Yes, 2 built-in microphones
Built-in speaker 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Sound
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reboot button Yes

Features
Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart features scene change detection
Interface Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output, white light flashing

Smart features
Facial recognition Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

Home
System parameters
12 VDC ± 25%, 1.35 A, max. 16 W, reverse polarity protection, two-core terminal block,
PoE: IEEE 802.3at, Class 4, max. 18 W
Material Metal
Size Ø155 mm × 140.4 mm (Ø6.10" × 5.23")
Package size 206 mm × 206 mm × 230 mm (8.1" × 8.1" × 9.1")
Weight Approx. 820 g (1.8 lb.)
Weight with packaging Approx. 1200 g (2.6 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Main functions Heartbeat, mirror, password reset via email, pixel counter, anti-banding, flash log
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light White Light

Approvals
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Security

CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IK10: IEC 62262:2002,IP66: IEC 60529-2013
