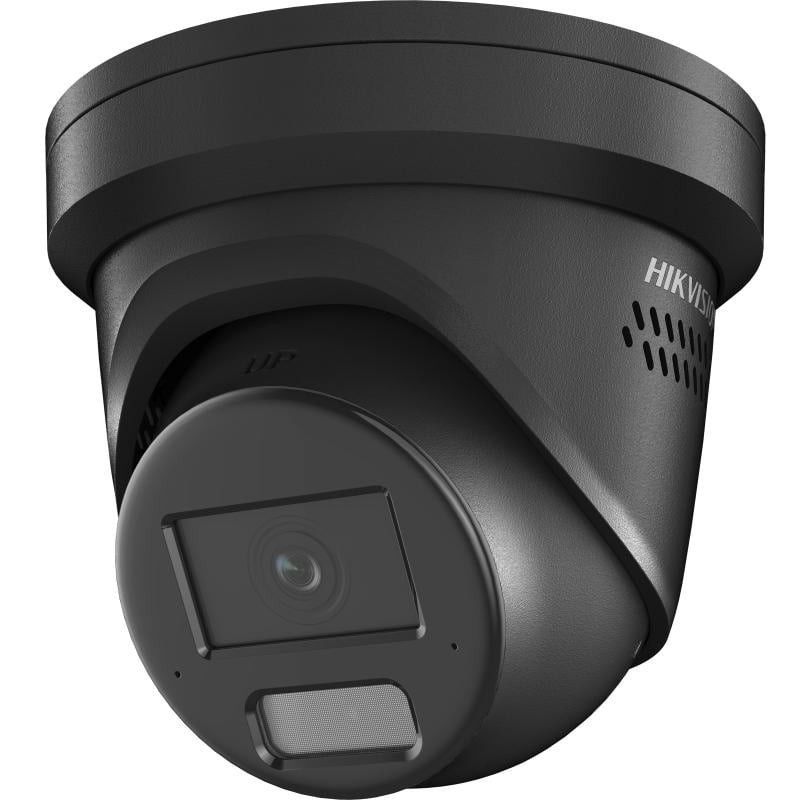

Hikvision dome DS-2CD2386G2H-IS2U / SL F2.8 (Black, 8 MP, 30 IR, AcuSense)

Product reference: 26-6942160482439

Hikvision dome DS-2CD2386G2H-IS2U / SL F2.8 (Black, 8 MP, 30 IR, AcuSense)

Product reference: 26-6942160482439

You have 3 products in compare list, please remove someone and try again

Add to compare

19391 €

Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Lens
Lens type Fixed focal lens, 2.8 and 4 mm optional
Focal Length FOV
2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 130°
4 mm, horizontal FOV 90°, vertical FOV 47°, diagonal FOV 111°
Lens installation M16
Iris type Fixed
Aperture F1.0
Depth of field
2.8 mm: 3.3 m to ∞
4 mm: 3.8 m to ∞

DOROUS
DOROUS
2.8mm: D: 89m, O: 35m, R: 17m, I: 8m
4mm: D: 109m, O: 43m, R: 21m, I: 10m

Main stream
50Hz:
25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
60Hz:
24fps (3840×2160)
30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Secondary flow
50Hz: 25fps (1280×720, 640×480, 640×360)
60Hz: 30fps (1280×720, 640×480, 640×360)
Third stream
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
Image compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
Video bit rate 32 Kbps to 16 Mbps
H.264 type Baseline Profile, Main Profile, High Profile
H.265 type Main Profile
Bit rate control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Sound
Audio compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio type Mono sound
Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio sampling frequency 8kHz/16kHz/32kHz/48kHz
Removing extraneous sounds Yes

Internet
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Live video viewing Up to 6 channels
API ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Internal memory NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Customer iVMS-4200,Hik-Connect
Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Photo parameters converter Yes
Photo settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night mode Day, Night, Auto, Schedule
Photo beautification BLC,HLC,3D DNA,Defog
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Privacy mask 4 programmable polygon privacy masks

Interface
Web interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Internal memory

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in microphone Yes, 2 built-in microphones
Built-in speaker Max. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB.
Sound
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reboot button Yes

Features
Main functions Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Interface Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light
Smart features

Scene change detection

Smart features
Facial recognition Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)

Home
System parameters
12 VDC ± 25%, 1.34 A, max. 16 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3at, Class 4, max. 18 W
Material

Cover: metal, main body: metal
Size Ø138.3mm × 115.4mm (Ø5.4" × 4.5")
Package size 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight Approx. 780 g (1.71 lb.)
Weight with packaging Approx. 1210 g (2.67 lb.)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Main functions Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light
/SRB model: Red and Blue Light
/SL model: White Light

Approvals
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Security
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environmental protection
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013

Weight

0.84 kg
