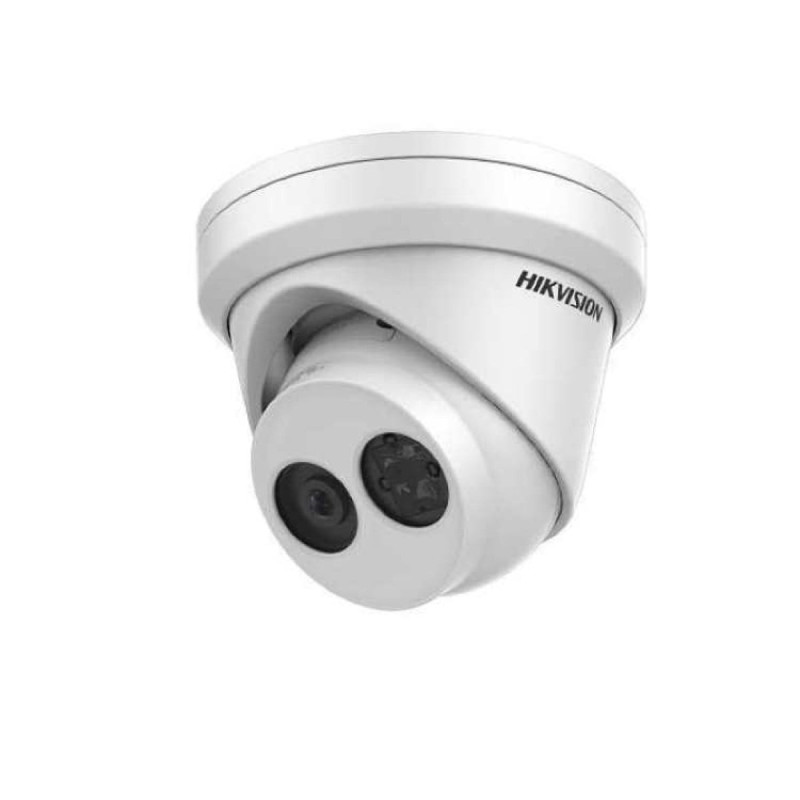

Hikvision dome DS-2CD2343G2-IU F2.8 (white, 4 MP, 30m IR, AcuSense)
Product reference:
26-6941264073611
- MP (MegaPixel): 4 MP
- Lens: 2.8 mm, horizontal FOV: 103°
- Technology: AcuSense
- Built-in microphone: Yes
- Night illumination: 30 m. IR
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1280ZJ-DM8
- Outdoor/Indoor: Outdoor
Hikvision dome DS-2CD2343G2-IU F2.8 (white, 4 MP, 30m IR, AcuSense)
Product reference:
26-6941264073611
- MP (MegaPixel): 4 MP
- Lens: 2.8 mm, horizontal FOV: 103°
- Technology: AcuSense
- Built-in microphone: Yes
- Night illumination: 30 m. IR
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1280ZJ-DM8
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
6 month
Delivery from Lithuania in
2 - 14
business days
- Camera
- Sensor 1/3″ Progressive Scan CMOS
- Max resolution 2688 × 1520
- Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
- Shutter speed 1/3 s to 1/100,000 s
- Day Night IR cut filter
- Changing the angle Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
- Lens installation M12
- Iris type Fixed
- Aperture F1.6
- DOROUS
- DOROUS
2.8mm: D: 67m, O: 26m, R: 13m, I: 6m
4mm: D: 80m, O: 31m, R: 16m, I: 8m
- Lighting
- Additional lighting type AND
- Additional lighting range Up to 30 m
- Smart additional lighting Yes
- IR wavelength 850 nm
- Image
- Main stream
50Hz: 25fps (2688×1520, 1920×1080, 1280×720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Secondary flow
50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)
- Third stream
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
- Image compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video bit rate 32 Kbps to 8 Mbps
- H.264 type Baseline Profile/Main Profile/High Profile
- H.265 type Main Profile
- Bit rate control CBR/VBR
- SVC H.264 and H.265 encoding
- ROI 1 fixed region for main stream and sub-stream
- Sound
- Audio compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio bit rate -U: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
- Audio sampling frequency -U: 8kHz/16kHz/32kHz/44.1kHz/48kHz
- Removing extraneous sounds -U: Yes
- Internet
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
- Live video viewing Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/Host Up to 32 users. 3 user levels: administrator, operator and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Internal memory MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
- Customer iVMS-4200, Hik-Connect, Hik-Central
- Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Photo
- Photo parameters converter Yes
- Photo settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night mode Day, Night, Auto, Schedule
- WDR 120 dB
- SNR ≥ 52 dB
- Photo beautification BLC, HLC, 3D DNA
- Interface
- Web interface 1 RJ45 10M/100M self-adaptive Ethernet port
- Internal memory Built-in micro SD, up to 256 GB
- Built-in microphone -U: yes
- Reboot button Yes
- Features
- Main functions Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart features
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle))
Face detection
- Interface Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
- Home
- System parameters
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
- Size Ø127.3 × 95.9 mm (Ø5.01″ × 3.78″)
- Package size 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
- Approx. 600 g (1.3 lb.)
- Weight with packaging Approx. 816 g (1.8 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Working conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Main functions Anti-flicker, heartbeat, password reset via e-mail, pixel counter
- Approvals
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environmental protection CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection IP67 (IEC 60529-2013)
| Manufacturer code | KIPDS2CD2343G2IUF2.8 |
| Manufacturer | Hikvision |
| Weight | 0.65 kg |
