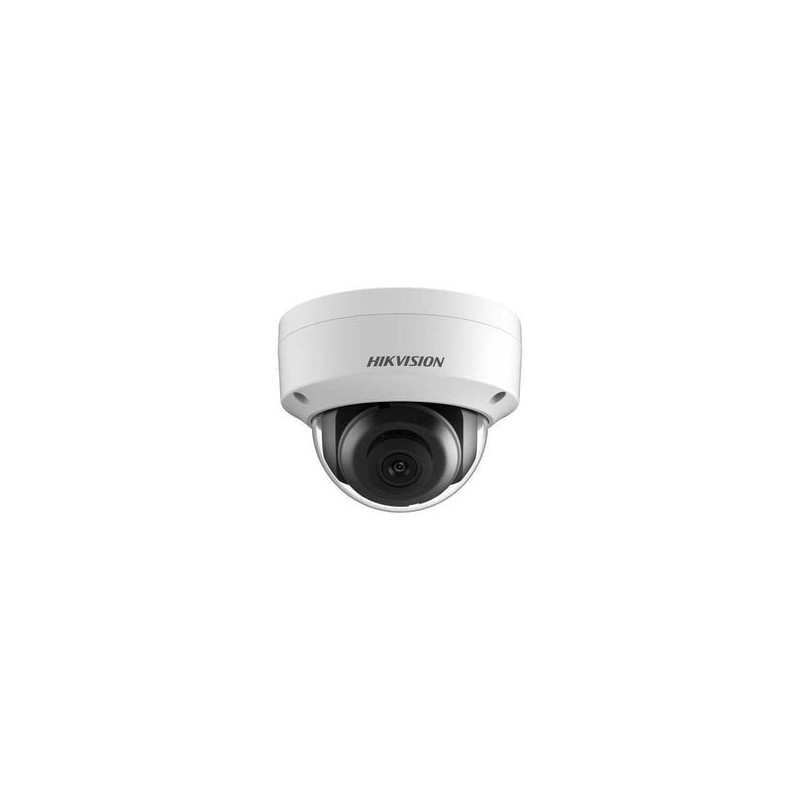

Hikvision dome DS-2CD2163G2-IU F2.8 (white, 6 MP, 30m IR, AcuSense)
Product reference:
26-6941264095514
- MP (MegaPixel): 6 MP
- Lens: 2.8 mm, horizontal FOV: 105°
- Technology: AcuSense
- Built-in microphone: Yes
- Night illumination: 30 m IR;
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1272ZJ-120
- Outdoor/Indoor: Outdoor
Hikvision dome DS-2CD2163G2-IU F2.8 (white, 6 MP, 30m IR, AcuSense)
Product reference:
26-6941264095514
- MP (MegaPixel): 6 MP
- Lens: 2.8 mm, horizontal FOV: 105°
- Technology: AcuSense
- Built-in microphone: Yes
- Night illumination: 30 m IR;
- microSD slot: Yes, 512GB
- Operating conditions: -30 °C to 60 °C
- Safety level: IP67
- Video compression: H.265+
- WiFi: No
- Bracket/base (optional): DS-1272ZJ-120
- Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
6 month
Delivery from Lithuania in
2 - 14
business days
- Camera
- Sensor 1/2.8" Progressive Scan CMOS
- Max resolution 3200 × 1800
- Min. lighting Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter speed 1/3 s to 1/100,000 s
- Day Night IR cut filter
- Angle selection Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lentils
- Lens type Fixed focal length, 2.8 and 4 mm optional
- Focal Length FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
- Lens mounting M12
- Iris type Fixed
- Aperture F1.6
- DOROUS
- DOROUS
2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m
4mm: D: 90m, O: 35m, R: 18m, I: 9m
- Lighting
- Auxiliary light type AND
- Auxiliary light range Up to 30 m
- Smart auxiliary light Yes
- IR wavelength 850 nm
- Image
- Main stream
50Hz: 20fps (3200×1800)
25 fps (2688×1520, 1920×1080, 1280×720)
60Hz: 20fps (3200×1800)
30fps (2688×1520, 1920×1080, 1280×720)
- Auxiliary flow
50Hz: 25fps (640×480, 640×360)
60Hz: 30fps (640×480, 640×360)
- Tertiary flow
50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360)
*Third stream is supported under certain settings.
- Image compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video bit rate 32 Kbps to 16 Mbps
- H.264 type Baseline Profile/Main Profile/High Profile
- H.265 type Main Profile
- Bit rate control CBR/VBR
- SVC H.264 and H.265 encoding
- ROI 1 fixed region for main stream and sub-stream
- Sound
- Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Audio sampling rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Ambient noise filtering Yes
- Network
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
- Live video streaming Up to 6 channels
- API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/broadcaster Up to 32 users. 3 user levels: administrator, operator and user
- Protection Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Customer iVMS-4200, Hik-Connect, Hik-Central
- Internet browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Photos
- Changing photo settings Yes
- Photo settings Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/night change Day, Night, Auto, Schedule
- WDR 120 dB
- SNR ≥ 52 dB
- Photo enhancement BLC, HLC, 3D DNA
- Interfaces
- Ethernet interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Internal storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
- Built-in microphone Yes
- Playback button Yes
- Events
- Simple events Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart events
Line crossing detection, intrusion detection
Supports human and vehicle target classification
Face detection
- Connection Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Home
- Power
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
- Dimensions Ø121.4 mm × 92.2 mm (Ø4.8" × 3.7")
- Package dimensions 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Weight Approx. 550 g (1.2 lb.)
- Weight with packaging Approx. 800 g (1.8 lb.)
- Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Start-up and operating conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Main functions Anti-flicker, heartbeat, password reset via email, pixel counter
- Approvals
- EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environmental protection CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
| Manufacturer code | KIPDS2CD2163G2IUF2.8 |
| Manufacturer | Hikvision |
| Weight | 0.612 kg |
