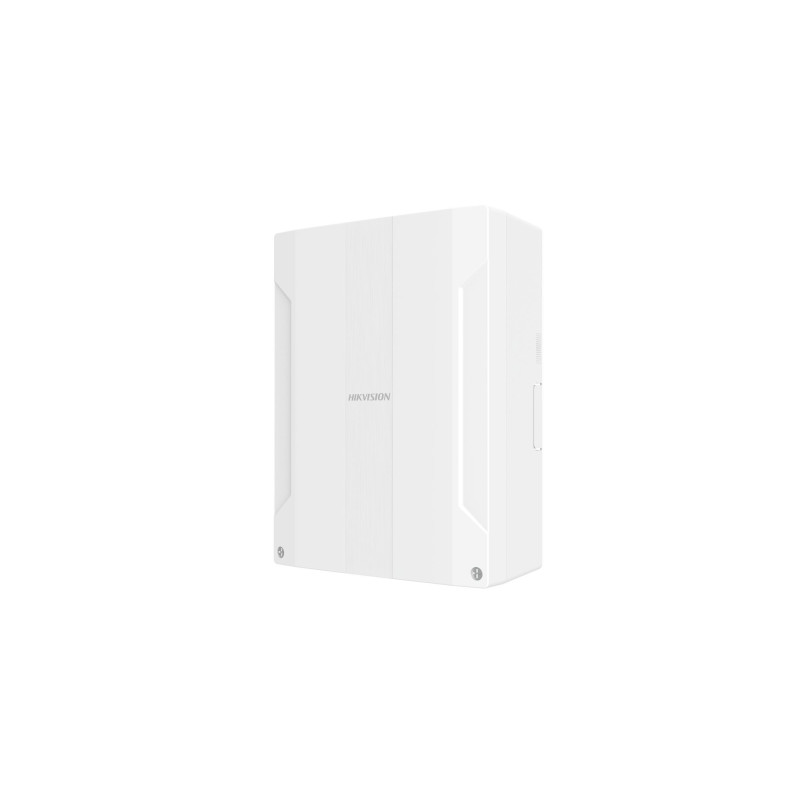

Hikvision central unit AX PRO DS-PWA96-M2H-WE
Product reference: 26-6931847164270
  • TCP/IP, Wi-Fi, and 3G/4G network
  • Two-way communication with AES-128 encryption
  • 32 areas
  • 48 users
  • Connects to 96 wireless zones/outputs (including 48 PIRs with cameras), 48 wireless keyfobs, 4 repeaters, 3 outdoor sirens, 3 indoor sirens, 8 tag/card readers keypads.
  • Supports up to 48 network users, including 1 installation wizard, 1 administrator, and 46 regular users
  • SIA-DC09 protocol, supports both Contact ID and SIA data formats
  • 16 wired zones and 2 relay outputs
  • Power supply 220-240VAC
  • Location for 12v 7AH battery (151x65x94mm)
Hikvision central unit AX PRO DS-PWA96-M2H-WE

Hikvision central unit AX PRO DS-PWA96-M2H-WE

Product reference: 26-6931847164270
  • TCP/IP, Wi-Fi, and 3G/4G network
  • Two-way communication with AES-128 encryption
  • 32 areas
  • 48 users
  • Connects to 96 wireless zones/outputs (including 48 PIRs with cameras), 48 wireless keyfobs, 4 repeaters, 3 outdoor sirens, 3 indoor sirens, 8 tag/card readers keypads.
  • Supports up to 48 network users, including 1 installation wizard, 1 administrator, and 46 regular users
  • SIA-DC09 protocol, supports both Contact ID and SIA data formats
  • 16 wired zones and 2 relay outputs
  • Power supply 220-240VAC
  • Location for 12v 7AH battery (151x65x94mm)
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
241,12 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Software specification
  • Diagnostics Supported
  • Installation wizard 1
  • Installation wizard for programming Supported
  • Videos 4
  • Web server for software update work Supported
  • Wi-Fi standard Supported
  • Security mode Away/Stay
  • Firmware update APP/Web Portal
  • Administrator 1
  • Wired network Supported
  • Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
  • Protection with open zones Supported
  • Storing memory records 5000
  • Users 46
  • Software for the user Supported
  • Audio notifications Supported
  • Zones 32
  • Timers Supported
  • Hardware features
  • RS232 output Supported
  • Number of SIM cards Dual
  • 3/4G Supported
  • Card reader Supported
  • Loudspeaker Supported
  • Electrical properties
  • Battery type Built-in on-board Battery Li
  • Power supply Built-in power supply
  • Operating temperature -10°C to +55°C
  • Battery life span 12 hours
  • Wireless transmission
  • RF frequency 868Mhz
  • RF method Support
  • Wireless security Frequency Hoping 128 AES Encryption
  • Indicators
  • LED status indicators Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
  • Home
  • Dimensions (WxHxD) 170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
  • Housing material Plastic
  • Color White
  • Weight 557.5 g(19.7 oz)
  • Device management
  • Cards 48
  • PIR camera Supported
  • Zones 96 (up to 48 PIRCAMs)
  • Keyboards 8 (Including Tag reader)
  • Wireless sirens 6
  • Wireless repeater 4
  • Pendants 48
  • Response method
  • ARC protocol

    SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)

    Hik-IP Receiver Hik-IP Receiver Pro (Sur-Gard Ademco 685)

    Supports video verification and remote control

ManufacturerAX PRO
Manufacturer codeDSPWA96M2HWE
Weight1.2 kg
