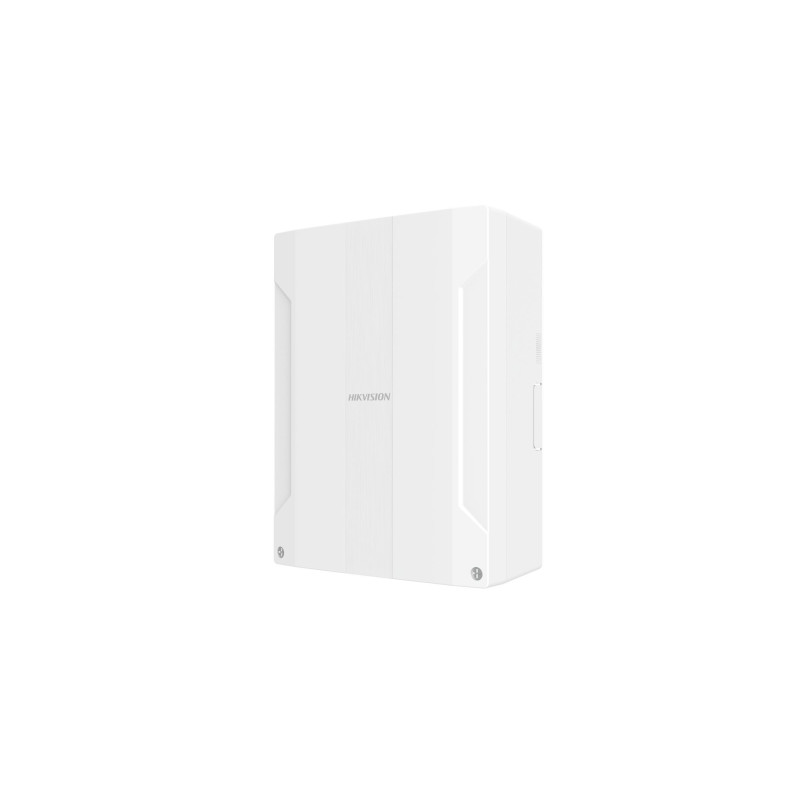

Hikvision central unit AX PRO DS-PWA96-M2-WE
Product reference:
26-6931847164294
- TCP/IP, Wi-Fi, and 3G/4G network
- Two-way communication with AES-128 encryption
- 32 areas
- 48 users
- Connects to 96 wireless zones/outputs (including 48 PIRs with cameras), 48 wireless keyfobs, 4 repeaters, 3 outdoor sirens, 3 indoor sirens, 8 tag/card readers keypads.
- Supports up to 48 network users, including 1 installation wizard, 1 administrator, and 46 regular users
- SIA-DC09 protocol, supports both Contact ID and SIA data formats
- Power supply 220-240VAC
- Location for 12v 7AH battery (151x65x94mm)
Hikvision central unit AX PRO DS-PWA96-M2-WE
Product reference:
26-6931847164294
- TCP/IP, Wi-Fi, and 3G/4G network
- Two-way communication with AES-128 encryption
- 32 areas
- 48 users
- Connects to 96 wireless zones/outputs (including 48 PIRs with cameras), 48 wireless keyfobs, 4 repeaters, 3 outdoor sirens, 3 indoor sirens, 8 tag/card readers keypads.
- Supports up to 48 network users, including 1 installation wizard, 1 administrator, and 46 regular users
- SIA-DC09 protocol, supports both Contact ID and SIA data formats
- Power supply 220-240VAC
- Location for 12v 7AH battery (151x65x94mm)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Software features
- Tag 48
- Area 32
- Zones 96 (up to 48 PIRCAMs)
- Embedded video clips 4
- Installation 1
- User 46
- Admin 1
- Voice prompt Supported
- Built-in speaker Supported
- Built-in tag reader No
- Memory log saved 5000
- Programming tools Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Software update APP/Web Portal
- Control panel modes Away/Stay
- Automatic on/off timers Supported
- Induction start with open zone Supported
- Diagnostics via APP or WEB Supported
- ARC Protocol
SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
Hik-IP Receiver Hik-IP Receiver Pro (Sur-Gard Ademco 685)
Supports video verification and remote control
- APP for User Work Supported
- Installation program for programming Supported
- WEB server for maintenance (offline configuration) Supported
- Hardware features
- RS232 output Supported
- SIM slot Dual
- RF transmission
- Two-way wireless connection Support
- RF frequency 868Mhz
- Wireless security Frequency Hoping 128 AES Encryption
- 3/4G Supported
- Electrical characteristics
- Power supply Built-in power supply
- Battery type 12v 7Ah Storage battery (Battery is not included by default)
- Battery life Up to 36 hours at normal temperature (The battery working time can be significantly reduced at low temperatures) (Battery life varies from different battery types)
- Wireless transmission
- Wired internet Supported
- Wi-Fi standard Supported
- Screen
- Status LEDs Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
- Home
- Working condition temperature -10°C to +55°C
- Housing Plastic
- Size 261*199*86.4mm
- Weight
975g (No battery)
- Color White
- Device management
- Keyboard remote control 48
- Wireless speaker 6 (3 internal+3 External)
- Keyboard 8 (Including Tag reader)
- Wireless repeater 4
- Multifunction transmitter 6
- PIR Cam Supported
| Manufacturer | AX PRO |
| Manufacturer code | DSPWA96M2WE |
| Weight | 1kg |
