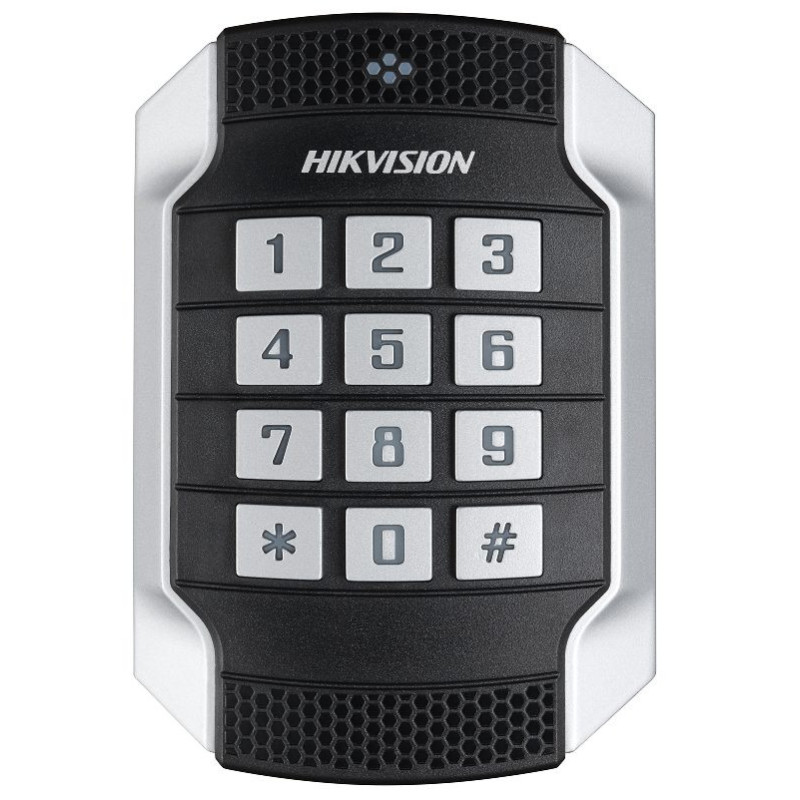

Hikvision card reader DS-K1104MK
Product reference: 26-6954273635725
  • Supports Mifare 1 card (Reading frequency 13.56MHz )
  • With keyboard (Plastic)
  • Supports RS485 and Wiegand(W26/W34 protocols
  • Protection against alarm tampering
  • Dustproof
  • IP65
  • IK10
Hikvision card reader DS-K1104MK

Hikvision card reader DS-K1104MK

Product reference: 26-6954273635725
  • Supports Mifare 1 card (Reading frequency 13.56MHz )
  • With keyboard (Plastic)
  • Supports RS485 and Wiegand(W26/W34 protocols
  • Protection against alarm tampering
  • Dustproof
  • IP65
  • IK10
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
83,17 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
System parameters
ID settingsSetting by the DIP Switch on the Main Board
Card reading frequency13.56MHz
Card reading distance≤50mm (≤1.97")
Processor32-bit
Main features
KeyboardKeypad with 12 Keys (0 to 9, *, #) (DS-K1104MK)
Audible warningBeeper
Operating current≤500mA
Power supply12VDC
Energy consumption≤2W
LED indicationPower Indicator; Status LED Indicator
InstallationApplied for 86 120 Gang Box
IP protection classIP65
CertificatesCE, FCC
Relative humidity10% to 90% (Non-Condensing)
Operating temperature-20°C to +65°C (-4°F to +149°F)
Dimensions (L×W×H):118mm × 76mm × 23mm (4.65'' × 2.99'' × 0.91")
Weight≤ 0.52Kg

ManufacturerHikvision
Manufacturer codePSSDSK1104MK
Weight0.5 kg
