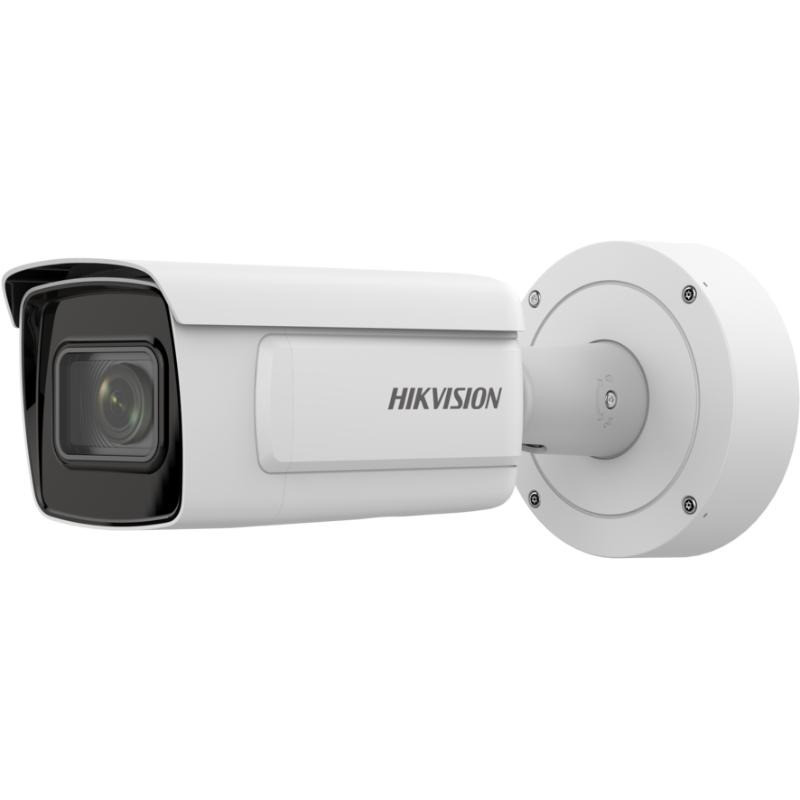

Hikvision bullet iDS-2CD7A46G0-IZHSY (C) F2.8-12 (white, 4 MP, 50 IR, DarkFighter)

Color: 0.0005 Lux @ (F1.2, AGC ON);

B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

IR cut filter

Blue glass module to reduce ghost phenomenon

2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°

2.8 to 12 mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73

Wide:

2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m

8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m

Tele:

2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m

8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m

2.8 to 12 mm: 50 m

8 to 32 mm: 100 m

Up to 4 models,

Model type: detection model, classification model, mixed model (detection model and classification model)

50Hz:

25 fps (2688×1520, 2560×1440, 1920×1080, 1280×720)

50 fps (2560×1440, 1920×1080, 1280×720)

60Hz:

30 fps (2688×1520, 2560×1440, 1920×1080, 1280×720)

60fps (2560×1440, 1920×1080, 1280×720)

50 Hz: 25 fps (704 × 576, 640 × 480)

60Hz: 30fps (704x480, 640x480)

50Hz: 25fps (1920×1080, 1280×720, 704×576, 640×480)

60Hz: 30fps (1920×1080, 1280×720, 704×480, 640×480)

50 Hz: 25 fps (704 × 576, 640 × 480)

60Hz: 30fps (704x480, 640x480)

50 Hz: 25 fps (704 × 576, 640 × 480)

60Hz: 30fps (704x480, 640x480)

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG

Up to 32 users

3 user levels: administrator, operator, and user

NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE 10, IE 11,

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

Support combined event alarm triggering

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: regional people queuing-up, waiting time detection

Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

Supports raw data export for further analysis

Supports real-time data uploading and scheduled data uploading

Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,

Two report types are available, space heat map and time heat map line chart.

Detects up to 30 human targets simultaneously

Supports up to 4 shield regions

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection

Supports parameter settings: alarm times per exception, alarm interval, first alarm delay

Supports searching real-time number of people

People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading

Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)

Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

Supports up to 8 detection regions, and independent arming schedule and linkage method

Supports 2 detection modes: absence detection, on/off duty detection

Supports parameter settings: person on duty, absence duration

12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block,

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0.295 A, max. 16.8 W

Without -Y: Ø144 mm × 347 mm (Ø5.7" × 13.7")

With -Y: Ø140 mm × 351 mm (Ø5.5 × 13.8\")"

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7,

KC: KN32: 2015, KN35: 2015

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

LOA: IEC/EN 60950-1

CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
