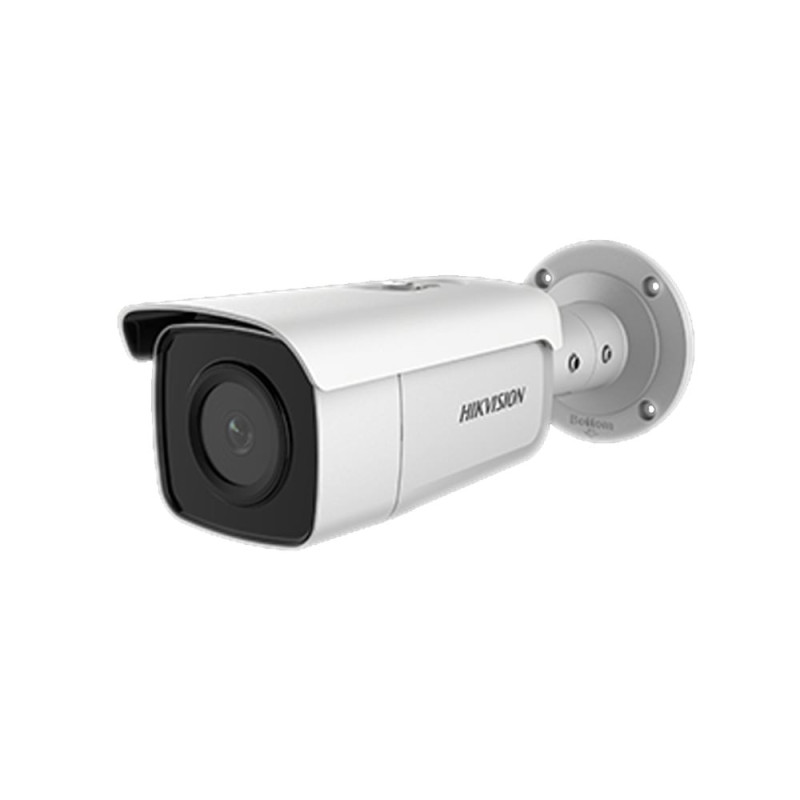

Hikvision bullet DS-2CD2T86G2-4I F6 (without base) (white, 8 MP, 80 m. IR, AcuSense)
Product reference: 26-6941264088783
  • MP (MegaPixel): 8 MP
  • Lens: 6 mm, horizontal FOV: 51°
  • Technology: AcuSense
  • Built-in microphone: No, there is a microphone input
  • Night illumination: 80 m. IR
  • microSD slot: Yes, 256GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1260ZJ
  • Outdoor/Indoor: Outdoor
Hikvision bullet DS-2CD2T86G2-4I F6 (without base) (white, 8 MP, 80 m. IR, AcuSense)

Hikvision bullet DS-2CD2T86G2-4I F6 (without base) (white, 8 MP, 80 m. IR, AcuSense)

Product reference: 26-6941264088783
  • MP (MegaPixel): 8 MP
  • Lens: 6 mm, horizontal FOV: 51°
  • Technology: AcuSense
  • Built-in microphone: No, there is a microphone input
  • Night illumination: 80 m. IR
  • microSD slot: Yes, 256GB
  • Operating conditions: -30 °C to 60 °C
  • Safety level: IP67
  • Video compression: H.265+
  • WiFi: No
  • Bracket/base (optional): DS-1260ZJ
  • Outdoor/Indoor: Outdoor
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
19841 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
Camera
Sensor 1/1.8" Progressive Scan CMOS
Min. lighting Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter speed 1/3 s to 1/100,000 s
Slow shutter Yes
Day Night IR Cut Filter
WDR 120dB
Angle selection Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lentils
Lens types Fixed lens, 2.8/4/6 mm
Aperture F1.6
FOV 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°
4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8°
6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
Lens mounting M16
Lighting
IR distance -2I: up to 60 m
-4I: up to 80 m
Wavelength 850 nm
Videos
Max resolution 3840 × 2160
Main stream 50Hz: 20fps (3840×2160, 3072×1728), 25fps (2688×1520,1920×1080, 1280×720)
60Hz: 20fps (3840×2160, 3072×1728), 30fps (2688×1520,1920×1080, 1280×720)
Auxiliary flow 50Hz: 25fps (640×480, 640×360, 320×240)
60Hz: 30fps (640×480, 640×360, 320×240)
Tertiary flow 50Hz: 25fps (1280×720, 640×480, 640×360, 320×240)
60Hz: 30fps (1280×720, 640×480, 640×360, 320×240)
Image compression Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 type Baseline Profile/Main Profile/High Profile
H.265 type Main Profile
Video bit rate 32 Kbps to 16 Mbps
SVC H.264 and H.265 encoding support
Smart features
Perimeter security Line crossing detection, intrusion detection, region entrance detection, region exiting detection (HumanVehicle classification)
Facial recognition Yes
Simple events Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Connection method Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
ROI 1 fixed region for main stream, sub-stream and third stream
Image enhancement BLC, HLC, 3D DNA
Image settings Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Day/night switch Day/Night/Auto/Schedule
Network
Network storage microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Protection Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Live video viewing Up to 6 channels
User/broadcaster Up to 32 users, 3 levels: administrator, operator and user
Customer iVMS-4200, Hik-Connect, Hik-Central
Internet browsers Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Interface
Communication interface 1 RJ45 10M/100M self-adaptive Ethernet port
Internal memory Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Home
Online menu languages 32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Main functions Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
Restarting Reset via reset button on camera body, web browser and client software
Start-up and operation
conditions 		-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Energy source 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
Energy consumption and power -2I: 12 VDC, 0.63 A, max. 7.5 W; PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W
-4I: 12 VDC, 0.88 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W
Material Metal
Dimensions Camera: Φ 105 × 290 mm (Φ 4.1" × 11.4")
With package: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
Weight Camera: approx. 1270 g (2.8 lb.)
With package: approx. 1510 g (3.3 lb.)
Approvals
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Security UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950- 1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingress protection: IP67 (IEC 60529-2013), IK10

Weight1.111 kg
