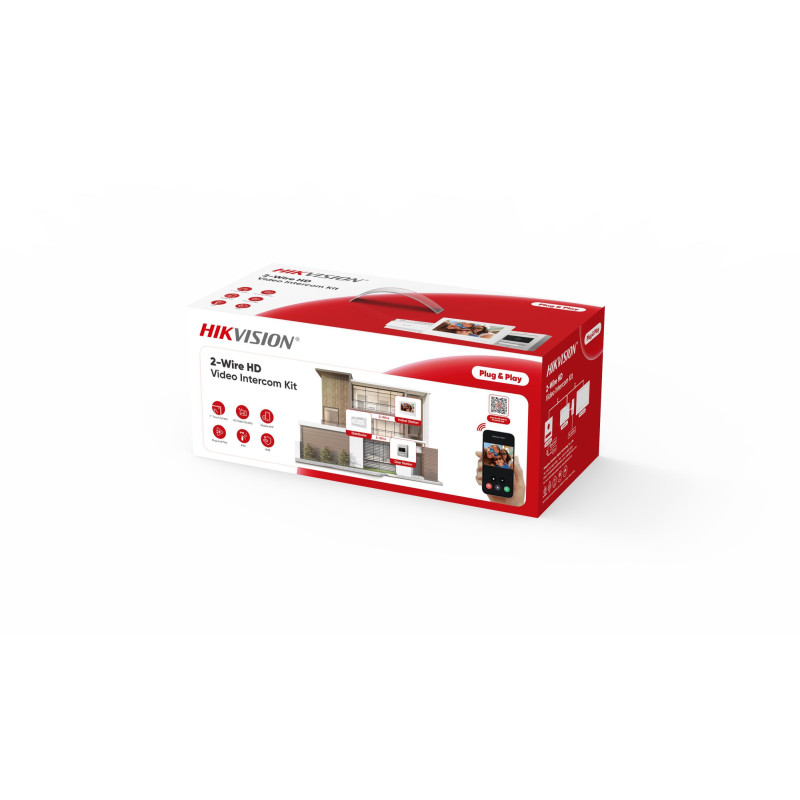

Hikvision analog doorbell 2-wire set DS-KIS704EY
Product reference:
26-PSMDSKIS704EY
- Type: Analog doorphone
- Model: Hikvision DS-KIS704EY
- Resolution: 2 MP
- Functions: One-click call, remote unlock via app
- Installation: True plugplay
- Protection: IP65 water resistance, IK08 vandal resistance
- Screen: 7 inch touch screen
- Interface: User-friendly interface
- Package: Complete two-wire set
Hikvision analog doorbell 2-wire set DS-KIS704EY
Product reference:
26-PSMDSKIS704EY
- Type: Analog doorphone
- Model: Hikvision DS-KIS704EY
- Resolution: 2 MP
- Functions: One-click call, remote unlock via app
- Installation: True plugplay
- Protection: IP65 water resistance, IK08 vandal resistance
- Screen: 7 inch touch screen
- Interface: User-friendly interface
- Package: Complete two-wire set
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Doorbell sound settings
- Audio compression bit rate 64 FPS
- Audio compression format G.711 U, G.711 A
- Audio input Built-in omnidirectional microphone
- Audio output Built-in speaker
- Sound quality Noise suppression and echo cancellation
- Volume adjustment Adjustable
- Door station/Capacity parameters
- Associated indoor station capacities Max.99
- Sub-door station capacity 16
- Intercom interfaces
- Alarm input 2（supports Exit button or Door contact input）
- DIP Switch 6-digit DIP switch
- Debug port 1
- Door contact input 1
- Exit button 1
- Shutter control 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
- Power supply input 12VDC input
- RS-485 2 (RS485 out for Hikvision's sub module communication, RS485 for reservation)
- TAMPER 1
- Two-Wire 1
- Doorphone basic settings
- Application environment Outdoor
- Button 0-2（Flexible adjustment）
- Size 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88" × 1.37")
- Indicator 4 LED lights(Opening door、Calling、Intercom、In use）
- Installation Surface mounting flush mounting
- Language English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
- Energy use ≤ 6W
- Power supply 48V，Powered by distributor DS-KAD7060EY or 12VDC
- IP protection level IP65 IK08
- Working conditions humidity 10% to 90%
- Operating temperature -40° C to 60° C (-22° F to 140° F)
- Door station/Network parameters
- Wi-Fi Only AP mode for configuration
- Wireless network 10/100 Mbps self-adaptive through 2-wire interface
- Door station/Screen parameters
- Mode of operation NA
- Resolution NA
- Screen size NA
- Type NA
- Intercom system parameters
- Operating system Embedded Linux operating system
- Processor Embedded Processor
- RAM 256MB
- ROM 4GB
- Intercom video settings
- FOV Horizontal: 133°, Vertical: 82°
- Lens 1
- Resolution 2MP
- Additional lighting Supplement light Low illumination, IR supplement lights
- Image compression format H.264
- Wide dynamic range (WDR) Support
- Video Audio Distributor/General
- Size 143.7 mm × 92.4 mm × 65.9 mm (5.66" × 3.64" × 2.59")
- Indicators 6 Signal indicators;1 Power indicator
- Installation DIN rail installation
- Energy use CH1＜30W，CH2＜30W，CH3＜30W，CH4＜30W；MAX Total 30W
- Power supply 48VDC
- Working conditions humidity 10% to 90% (non-condensing)
- Operating temperature -10 °C to 5 °C (14 °F to 131 °F)
- Video Audio Distributor/Interfaces
- Power interface 48VDC
- Two-wire interface 6("IN""OUT" for cascading, CH1-CH4 for Door station and Indoor station)
| Manufacturer | Hikvision |
| Manufacturer code | PSMDSKIS704EY |
| Weight | 1.95 kg |
