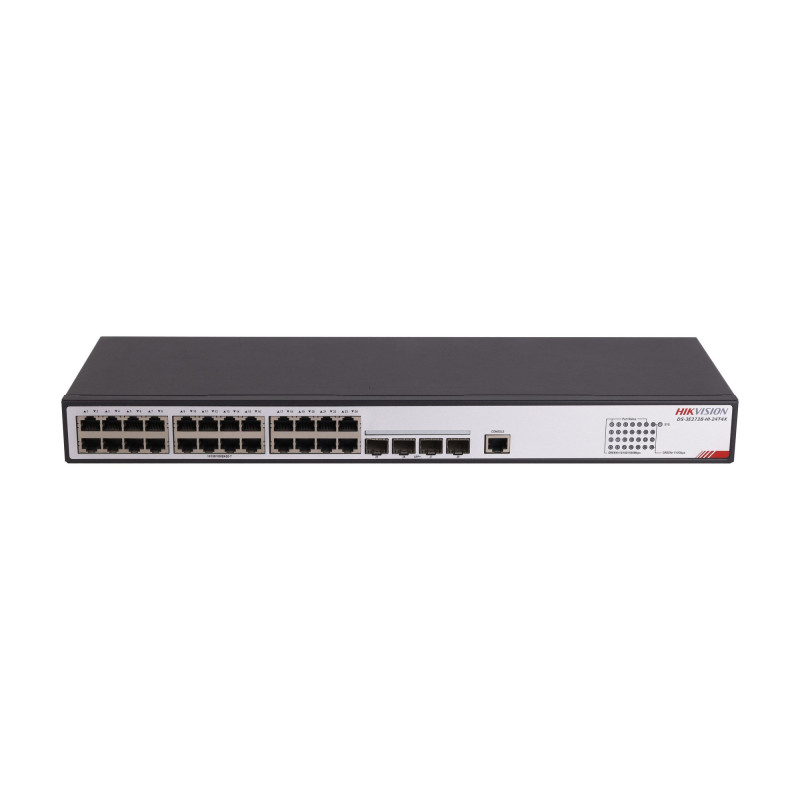

Hikvision 28-port switch DS-3E2728-HI-24T4X
Product reference: 26-6942160440149
  • Type: Switch
  • Model: DS-3E2728-HI-24T4X
  • Brand: Hikvision
  • Management: Managed
  • Ports: 24 × Gigabit, 4 × SFP 10Gb
  • Total capacity: 216 Gbps
  • Packet transmission: 160.71 Mpps
  • MAC address table: 32K
  • Level: L2
  • Functions: STP, Watchdog, 802.3ad
  • Enclosure type: Rack
  • Operating temperature: -5 °C - +45 °C
Hikvision 28-port switch DS-3E2728-HI-24T4X

Hikvision 28-port switch DS-3E2728-HI-24T4X

Product reference: 26-6942160440149
  • Type: Switch
  • Model: DS-3E2728-HI-24T4X
  • Brand: Hikvision
  • Management: Managed
  • Ports: 24 × Gigabit, 4 × SFP 10Gb
  • Total capacity: 216 Gbps
  • Packet transmission: 160.71 Mpps
  • MAC address table: 32K
  • Level: L2
  • Functions: STP, Watchdog, 802.3ad
  • Enclosure type: Rack
  • Operating temperature: -5 °C - +45 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
296,00 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Patvirtinimai
  • Cheminių komponentų sertifikavimas CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Saugumas CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
  • Bendra
  • Dydis 440.00 mm × 160.00 mm × 43.60 mm (17.32'' × 6.29'' × 1.71'')
  • Bendras svoris 3.00 kg (6.61 lb)
  • Installation Mode Rack (equipped with mounting ears)
  • Maks. energijos suvartojimas 37 W
  • Grynasis svoris 2.07 kg (4.56 lb)
  • Darbo drėgmė 10% to 95% (no condensation)
  • Darbo temperatūra -5 °C to 45 °C (23 °F to 113 °F)
  • Energijos sunaudojimas miego režime 17 W
  • Maitinimo šaltinis AC：100 V～240 V AC，50/60 Hz
  • Santykinė drėgmė 5% to 95% (no condensation)
  • Rėmas Metal
  • Laikymo temperatūra -40 °C to 70 °C (-40 °F to 158 °F)
  • Apsauga nuo viršįtampių 6 kV
  • Tinklo parametrai
  • Vidinė cache atmintis 2.0 Mbits
  • MAC adresų lentelė 32 K
  • Paketų perdavimo sparta Whole-Device Performance: 160.71 MppsPort Performance: 95.23 Mpps
  • Prievadai 24 × Gigabit RJ45 port,4 × 10G fiber optical port
  • Perjungimo našumas Whole-Device Performance: 216 GbpsPort Performance: 128 Gbps
  • Programinės įrangos funkcijos
  • ACL ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL Ingress:1280.Egress:512
  • DHCP DHCP ClientDHCP SnoopingDHCP Snooping option82DHCP RelayDHCP Server
  • Ethernet LLDPStatic MAC configurationLimit of number of MAC addresses to be learned (up to 32K)Port mirroring and traffic mirroringPort aggregation (up to 24 groups and 8 ports for each group)Port isolationSTP/RSTP/MSTPIEEE 802.3ad (dynamic link aggregation) and static port aggregationRRPP/ERPS (Ethernet Ring Protection Switching)VRRP
  • HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
  • IP maršrutas Static routingRIPv1/v2 and RIPngOSPFv1/v2 and OSPFv3IS-ISHardware-based IPv4/IPv6 routingInter VLAN routing
  • Daugiakryptis transliavimas IGMP V1/V2/V3 snoopingPIM SnoopingMulticast VLANIPv6 multicast setting
  • Paslaugų kokybė (QoS) SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit
  • Saugumas Hierarchical user management and password protectionSSH for a secure encrypted channel for user loginSpecific IP address based FTP logging and password mechanismPrevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packetMAC address limitIP+MAC+PORT bindingIEEE 802.1xRadius and AAASNMPv3Broadcast suppression
  • System Management Command line configuration via console/AUX Modem/Telnet/SSHUploading and downloading of FTP, TFTP, and Xmodem, and SFTP filesSNMP V1/V2c/V3sFlowNQANTP clockSystem operating logs
  • VLAN 802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP

Gamintojas Hikvision
Gamintojo kodas DS3E2728HI24T4X
Svoris 2.105 kg
