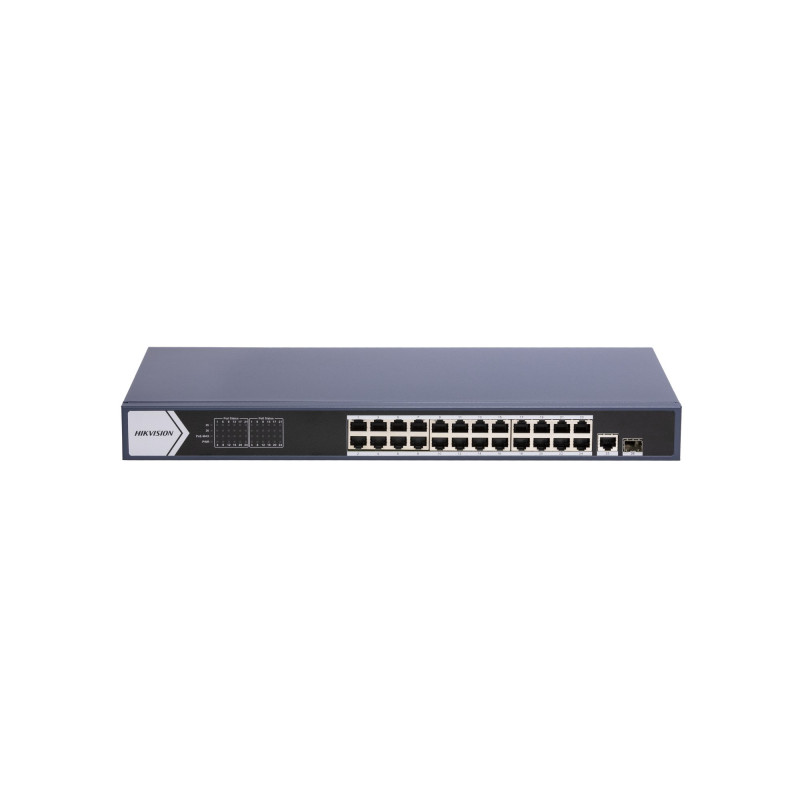

Hikvision 26-port 24 PoE switch DS-3E0526P-E(B)
Product reference: 26-6936422136048
  • Layer 2 network switch for video data transmission
  • 24 x 10/100/1000 Mbps Ethernet ports, 1 x 10/100/1000 Mbps uplink Ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
  • Supported network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Supports IEEE 802.3 af and at high power PoE power supply
  • Uses store-and-forward switching method
  • 6KV surge protection ensures safe and reliable operation
  • Easy to use - plug and play
Hikvision 26-port 24 PoE switch DS-3E0526P-E(B)

Hikvision 26-port 24 PoE switch DS-3E0526P-E(B)

Product reference: 26-6936422136048
  • Layer 2 network switch for video data transmission
  • 24 x 10/100/1000 Mbps Ethernet ports, 1 x 10/100/1000 Mbps uplink Ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
  • Supported network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Supports IEEE 802.3 af and at high power PoE power supply
  • Uses store-and-forward switching method
  • 6KV surge protection ensures safe and reliable operation
  • Easy to use - plug and play
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
272,19 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Security UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • General information
  • Size 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
  • Total weight 3.74 kg (8.25 lb)
  • Installation Mode Desk-Mounted, Rack (equipped with mounting ears);
  • Max. power consumption 400W
  • Net weight 2.88 kg (6.35 lb)
  • Operating humidity 5% to 95% (no condensation)
  • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
  • Power consumption in sleep mode 30W
  • Power source 100~240 VAC, 50/60 Hz, Max. 6.5 A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 KV
  • Network settings
  • Internal cache memory 4.1 Mbits
  • MAC address table 8 K
  • Packet transfer rate 38.69 Mpps
  • Ports 24 × Gigabit PoE port;1 × Gigabit RJ45 port;1 × Gigabit fiber optical port
  • Switching capacity 52 Gbps
  • PoE
  • Max PoE port power 30W
  • PoE port PoE: Ports 1 to 24
  • PoE power budget 370W
  • PoE power connector End span: 1/2(+), 3/6(-)
  • PoE standard IEEE 802.3af,IEEE 802.3at

ManufacturerHikvision
Manufacturer codeSWITCHDS3E0526PEB
Weight2.89 kg
