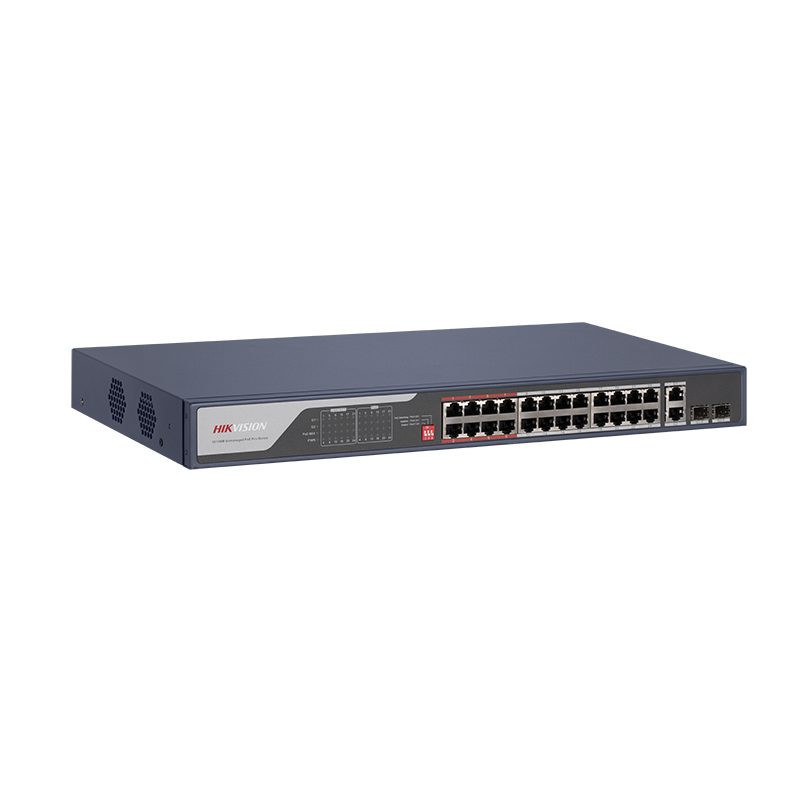

Hikvision 26-port 24 PoE switch DS-3E0326P-E(C)
Product reference: 26-6941264057093
  • Smart PoE management.
  • Up to 300m PoE transmission distance.
  • Port isolation to improve network security.
  • 6 kV surge protection for reliable operation in harsh conditions.
  • The PoE monitoring feature automatically detects and restarts unresponsive cameras.
Hikvision 26-port 24 PoE switch DS-3E0326P-E(C)

Hikvision 26-port 24 PoE switch DS-3E0326P-E(C)

Product reference: 26-6941264057093
  • Smart PoE management.
  • Up to 300m PoE transmission distance.
  • Port isolation to improve network security.
  • 6 kV surge protection for reliable operation in harsh conditions.
  • The PoE monitoring feature automatically detects and restarts unresponsive cameras.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
254,32 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (2011/65/EU)
  • EMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Security UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • Call function
  • Long range mode Ports 17 to 24: up to 300 mLong range performance may vary depending on camera model or cable condition.
  • PoE Watchdog Ports 1 to 24: auto detect and restart the cameras that do not respond.
  • Port isolation Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • General information
  • Dimensions (W × H × D) 440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
  • Total weight 3.54 kg (7.80 lb)
  • Installation Mode Rack (equipped with mounting ears)
  • Max. power consumption 400W
  • Net weight 2.785 kg (6.14 lb)
  • Working humidity 5% to 95% (no condensation)
  • Operating temperature 0 °C to 45 °C (32 °F to 113 °F)
  • Power consumption in sleep mode 30W
  • Power source 100~240 VAC, 50/60 Hz, Max. 6.5 A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 KV
  • Network settings
  • Internal cache memory 4 Mbit
  • MAC address table 16 K
  • Packet transfer rate 6.55 Mpps
  • Ports 24 × 10/100 Mbps PoE port,2 × Gigabit combo
  • Switching performance 8.80 Gbps
  • PoE
  • Max PoE port power 30W
  • PoE port PoE: Ports 1 to 24
  • PoE power budget 370W
  • PoE power connector 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE standard IEEE 802.3af;IEEE 802.3at
  • Software features
  • VIP Port Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

ManufacturerHikvision
Manufacturer codeSWITCHDS3E0326PEC
Weight2.66 kg
