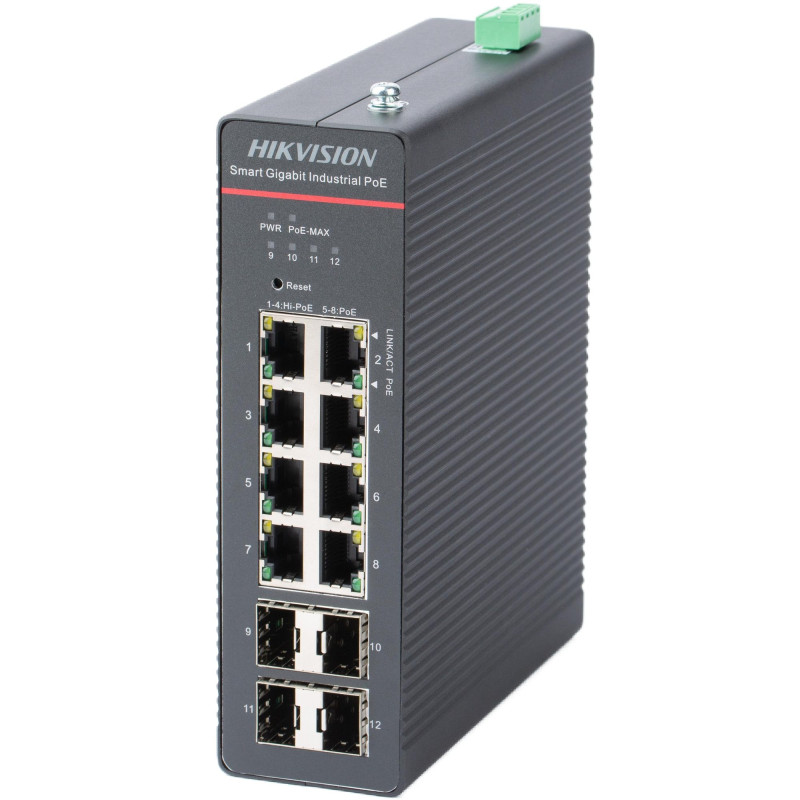

Hikvision 12-port 8 PoE industrial managed switch DS-3T1512HP-SI-8P4F
Product reference:
26-6936422147730
- 8 x Gigabit PoE RJ45 ports, 4 x Gigabit SFP optical ports
- Supports 802.1Q VLAN
- Supports 802.3bt Hi-PoE, up to 90W per port
- Supports STP/RSTP/ERPS loop prevention and storm control
- Supports cable fault detection
- Supports SNMP, QoS and DHCP snooping
- 6 kV surge protection
- Wide operating temperature range: -40 °C to 75 °C
- Long-distance transmission up to 300 m
Hikvision 12-port 8 PoE industrial managed switch DS-3T1512HP-SI-8P4F
Product reference:
26-6936422147730
- 8 x Gigabit PoE RJ45 ports, 4 x Gigabit SFP optical ports
- Supports 802.1Q VLAN
- Supports 802.3bt Hi-PoE, up to 90W per port
- Supports STP/RSTP/ERPS loop prevention and storm control
- Supports cable fault detection
- Supports SNMP, QoS and DHCP snooping
- 6 kV surge protection
- Wide operating temperature range: -40 °C to 75 °C
- Long-distance transmission up to 300 m
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
- Approvals
- Certification of chemical components CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
- EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- General information
- Dimensions (W × H × D) 155.00 mm × 46.00 mm × 130.00 mm (6.10'' × 1.81'' × 5.12'')
- Total weight 1.16 kg (2.56 lb)
- Installation Mode Desk-Mounted,Rail
- Max. power consumption 307 W
- Net weight 0.84 kg (1.85 lb)
- Working humidity 5% to 95% (no condensation)
- Operating temperature -40 °C to 75 °C (-40 °F to 167 °F)
- Power consumption in sleep mode 7W
- Power source 48~57 V DC, 7.5 A52 V~57 V recommended input voltage to ensure stable power supply. Support dual power inputs and hot backup.
- Relative humidity 5% to 95% (no condensation)
- Frame Metal material, IP40
- Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
- Surge protection 6 KV
- Network settings
- Internal cache memory 4.1 Mbits
- MAC address table 8 K
- Packet transfer rate Whole-Device Performance: 41.66 MppsPort Performance: 17.86 Mpps
- Ports 8 × Gigabit PoE port,4 × Gigabit fiber optical port
- Switching performance Whole-Device Performance: 56 GbpsPort Performance: 24 Gbps
- PoE
- Max PoE port power Ports 1 to 4: 90 W Ports 5 to 8: 30 W
- PoE port Hi-PoE: Ports 1 to 4PoE: Ports 5 to 8
- PoE power budget 300W
- PoE power connector Ports 1 to 4: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)Ports 5 to 8: End-span: 1/2(-), 3/6(+)
- PoE standard Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 5 to 8: IEEE 802.3af, IEEE 802.3at
- Software features
- ACL Port security strategy. Support up to 64 ACL entries. Support up to 128 configuration rules under all ACL entries.
- DHCP monitoring DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
- HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device.
- IPSG IPSG can control the security of port access device. Support port, MAC, IP binding. Support 256 security entries.
- Connection aggregation Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.
- Long range mode Ports 1 to 8: up to 300 m. Long range performance may vary depending on camera model or cable condition.
- Loop Prevention Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. Support G.8032 ERPS.
- PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
- Port isolation Ports 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- Port speed limit Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
- Quality of Service (QoS) QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
- Storm control Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets.
- System Maintenance Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating.
- VLANs VLAN is used for network scale planning and network health improvement. Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode. Support Max. 4094 VLANs.
| Manufacturer | Hikvision |
| Manufacturer code | SW3T1512HPSI8P4F240W |
| Weight | 0.915 kg |
