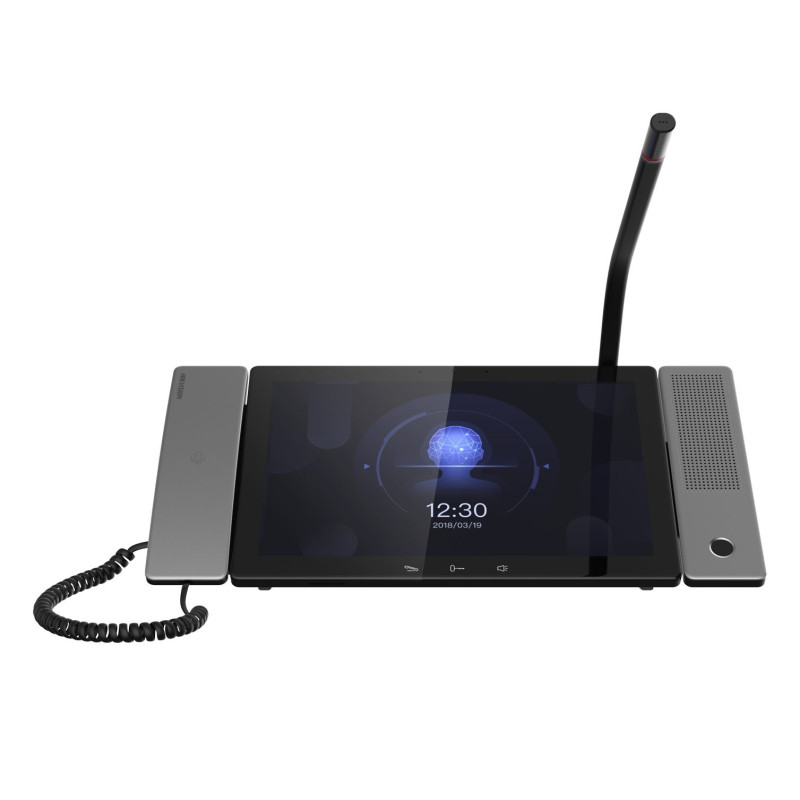

Hikvision 10.1" monitor DS-KM9503
Product reference: 26-PSMDSKM9503
  • Resolution: 1280×800
  • 3 USB inputs
  • 2 relay outputs
Hikvision 10.1" monitor DS-KM9503

Hikvision 10.1" monitor DS-KM9503

Product reference: 26-PSMDSKM9503
  • Resolution: 1280×800
  • 3 USB inputs
  • 2 relay outputs
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
904,39 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • System parameters
  • Operating system Android 7.1
  • ROM 8GB
  • RAM 2GB
  • CPU Embedded processor
  • Display settings
  • Screen size 10.1-inch
  • Method of operation Capacitive touch screen
  • Type IPS
  • Resolution 1280 × 800
  • Image settings
  • Auxiliary light /
  • Image compression standard H.264
  • FOV Horizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
  • WDR /
  • Resolution 2 MP
  • Audio settings
  • Audio compression standard G.711U、G.711A
  • Audio input Built-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
  • Audio output Built-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
  • Audio compression bit rate 64 Kbps
  • Sound quality Noise suppression and echo cancellation
  • Volume control Adjustable via software
  • Capacity
  • Network connected to camera 128
  • SIP access 10000
  • Network settings
  • Connection protocol TCP/IP, SIP, RTSP
  • Wired network 2 10/100/1000M self-adaptive Ethernet
  • Wi-Fi /
  • 3G/4G /
  • Zigbee /
  • Device interfaces
  • Warning signal input 2
  • Network interfaces 2
  • TAMPER 0
  • RS-485 1
  • USB 3
  • TF card Max to 128G
  • Shutter control 2 Relay outputs
  • Home
  • Button 3 touch buttons
  • Installation Table mounting wall mounting
  • Indicators 3
  • Weight

    Without package: 1.285 kg

    With package: 2.305 kg
  • Protection level /
  • Operating temperature -10 °C to 50 °C (14 °F to 122 °F)
  • Working humidity resistance 10% to 90%
  • Dimensions 292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")
  • Battery /
  • Energy source

    Standard PoE (LAN1)

    12VDC
  • Adapted to work Indoor
  • Energy consumption ≤ 12W

ManufacturerHikvision
Manufacturer codePSMDSKM9503
Weight1.37 kg
