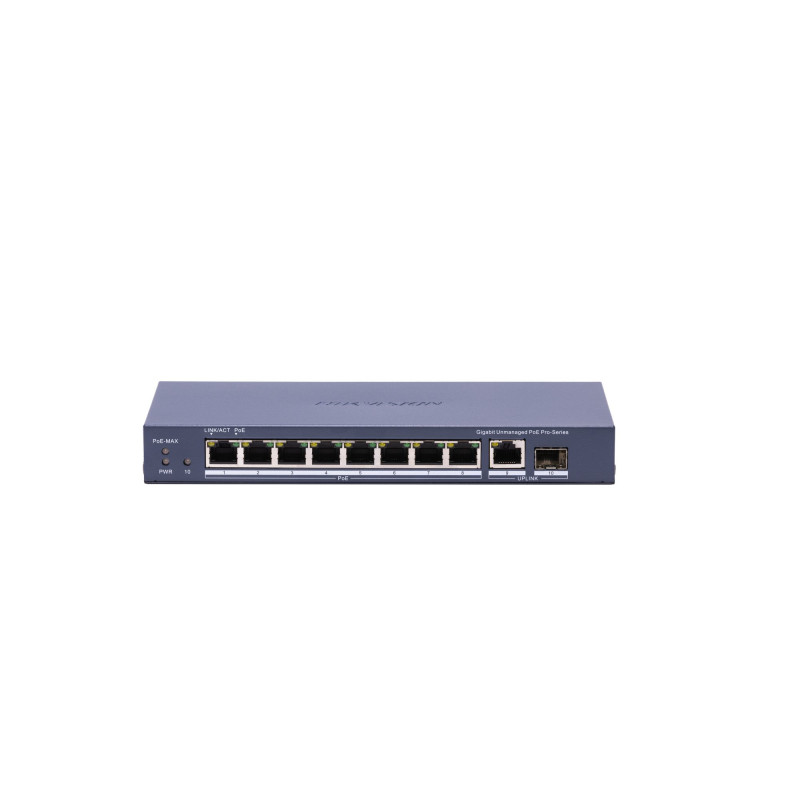

Hikvision 10-port 8 PoE switch DS-3E0510P-E(B)
Product reference: 26-6942160402635
  • 8 x Gigabit PoE ports, 1 x Gigabit RJ45, 1 x Gigabit SFP
  • Total PoE power: 110 W
  • Complies with IEEE 802.3af/at standards, up to 30 W per port
  • 6 kV surge protection
  • Intelligent PD power detection with system-level overload protection
  • Quiet operation due to the absence of a fan
  • Installation: freestanding or wall-mounted
Hikvision 10-port 8 PoE switch DS-3E0510P-E(B)

Hikvision 10-port 8 PoE switch DS-3E0510P-E(B)

Product reference: 26-6942160402635
  • 8 x Gigabit PoE ports, 1 x Gigabit RJ45, 1 x Gigabit SFP
  • Total PoE power: 110 W
  • Complies with IEEE 802.3af/at standards, up to 30 W per port
  • 6 kV surge protection
  • Intelligent PD power detection with system-level overload protection
  • Quiet operation due to the absence of a fan
  • Installation: freestanding or wall-mounted
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
83,95 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
  • Security CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
  • General information
  • Dimensions (W × H × D) 217.6 mm × 27.6 mm × 108.5 mm (8.56'' × 1.08'' × 4.27'')
  • Total weight 1.20 kg (2.65 lb)
  • Installation Mode Desk-Mounted,Wall-Mounted
  • Max. power consumption ≤120W
  • Net weight 0.50 kg (1.10 lb)
  • Working humidity 5% to 95% (no condensation)
  • Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Power consumption in sleep mode 5W
  • Power source 54VDC, 2.22A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 kV
  • Network settings
  • Internal cache memory 1.5 Mbit
  • MAC address table 4K
  • Packet transfer rate 14.88 Mpps
  • Ports 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
  • Switching performance 20Gbps
  • PoE
  • Max PoE port power 30W
  • PoE port PoE: Ports 1 to 8
  • PoE power budget 110W
  • PoE power connector End span: 1/2(-), 3/6(+)
  • PoE standard IEEE 802.3af;IEEE 802.3at

ManufacturerHikvision
Manufacturer codeSWITCHDS3E0510PEB
Weight0.495 kg
