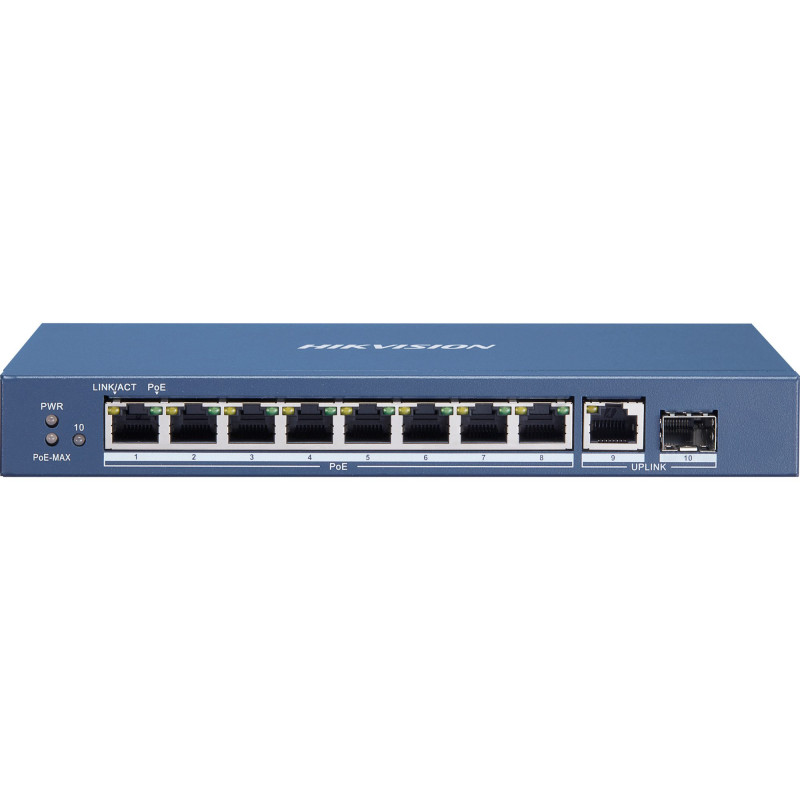

Hikvision 10-port 8 PoE port switch DS-3E0510P-E/M
Product reference: 26-6941264023111
  • 8 × gigabit PoE ports, 1 × gigabit RJ45 port, 1 × Gigabit SFP fiber optic port
  • IEEE 802.3at/af standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standards
  • 6 KV discharge protection
  • PoE power management
  • Gigabit network access
  • Wire-speed transfer and non-blocking design
  • Metal housing
  • No fan required
Hikvision 10-port 8 PoE port switch DS-3E0510P-E/M

Hikvision 10-port 8 PoE port switch DS-3E0510P-E/M

Product reference: 26-6941264023111
  • 8 × gigabit PoE ports, 1 × gigabit RJ45 port, 1 × Gigabit SFP fiber optic port
  • IEEE 802.3at/af standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standards
  • 6 KV discharge protection
  • PoE power management
  • Gigabit network access
  • Wire-speed transfer and non-blocking design
  • Metal housing
  • No fan required
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
86,78 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Network settings
  • Ports 8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port
  • Port type RJ45 port, full duplex, MDI/MDI-X adaptive
  • Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
  • Transmission mode Store-and-forward switching
  • MAC address table 4K
  • Switching capacity 20Gbps
  • Packet forwarding speed 14.88 Mpps
  • Internal cache memory 1.5 Mbit
  • PoE
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • PoE power connector End span: 1/2(-), 3/6(+)
  • PoE port Ports 1 to 8
  • Max PoE port power 30W
  • PoE available power 58W
  • Home
  • Size 217.6 mm × 27.8 mm × 108.55 mm (8.6" × 1.1" × 4.3")
  • Frame Metal material, fan-free design
  • Weight with packaging 1.37 kg (3.01 lb)
  • Weight without packaging 0.64 kg (1.40 lb)
  • Working conditions humidity -10 °C to 55 °C (14 °F to 131 °F)
  • Working conditions humidity 5% to 95% (no condensation)
  • Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Storage conditions humidity 5% to 95% (no condensation)
  • Power supply 48VDC, 1.35A
  • Power consumption in sleep mode 7W
  • Max. power consumption 65W
  • Approvals
  • EMC FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 9)
  • Security UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2019)
  • Chemical analysis CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2008)

ManufacturerHikvision
Manufacturer codeSWITCHDS3E0510PEM
Weight0.69 kg
