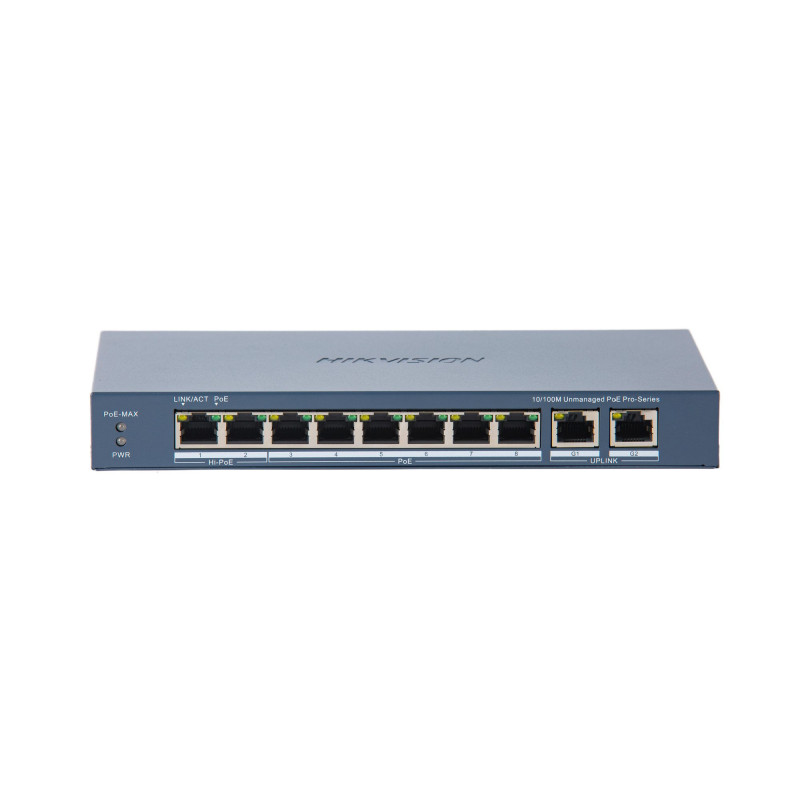

Hikvision 10 port 8 PoE port switch DS-3E0310HP-E(C)
Product reference: 26-6936422129743
  • 8 × 10/100 Mbps PoE ports, 2 × Gigabit RJ45 ports
  • IEEE 802.3bt Hi-PoE standard, max. 90 W per port
  • PoE transmission distance up to 300 m
  • Port isolation for network security
  • 6 kV surge protection for reliability in harsh environments
  • PoE Watchdog - automatic detection and restart of broken cameras
Hikvision 10 port 8 PoE port switch DS-3E0310HP-E(C)

Hikvision 10 port 8 PoE port switch DS-3E0310HP-E(C)

Product reference: 26-6936422129743
  • 8 × 10/100 Mbps PoE ports, 2 × Gigabit RJ45 ports
  • IEEE 802.3bt Hi-PoE standard, max. 90 W per port
  • PoE transmission distance up to 300 m
  • Port isolation for network security
  • 6 kV surge protection for reliability in harsh environments
  • PoE Watchdog - automatic detection and restart of broken cameras
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
81,54 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*
  • Approvals
  • Certification of chemical components CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)
  • EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
  • Security UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029)
  • Call function
  • Long range mode Ports 1 to 8: up to 300 m. Long range performance may vary depending on camera model or cable condition.
  • PoE Watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
  • Port isolation Ports 1 to 8: port isolation mode to improve network security.
  • General
  • Size 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
  • Total weight 1.27 kg (2.79 lb)
  • Installation Mode Desk-Mounted
  • Max. power consumption 120W
  • Net weight 0.56 kg (1.23 lb)
  • Working humidity 5% to 95% (no condensation)
  • Working temperature 0 °C to 40 °C (32 °F to 104 °F)
  • Power consumption in sleep mode < 10W
  • Power source 54 VDC,2.22 A
  • Relative humidity 5% to 95% (no condensation)
  • Frame Metal material, fan-free design
  • Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Surge protection 6 KV
  • Network settings
  • Internal cache memory 2Mbits
  • MAC address table 4K
  • Packet transfer rate 4.17Mpps
  • Ports 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
  • Switching performance 5.6 Gbps
  • PoE
  • Max PoE port power Ports 1 and 2 : 90 W Ports 3 to 8: 30 W
  • PoE port Hi-PoE: Ports 1 to 2PoE: Ports 3 to 8
  • PoE power budget 110W
  • PoE power connector Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)Ports 3 to 8: End-span: 1/2(-), 3/6(+)
  • PoE standard Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3btPorts 3 to 8: IEEE 802.3af, IEEE 802.3at

ManufacturerHikvision
Manufacturer codeSWITCHDS3E0310HPEC
Weight0.485 kg
