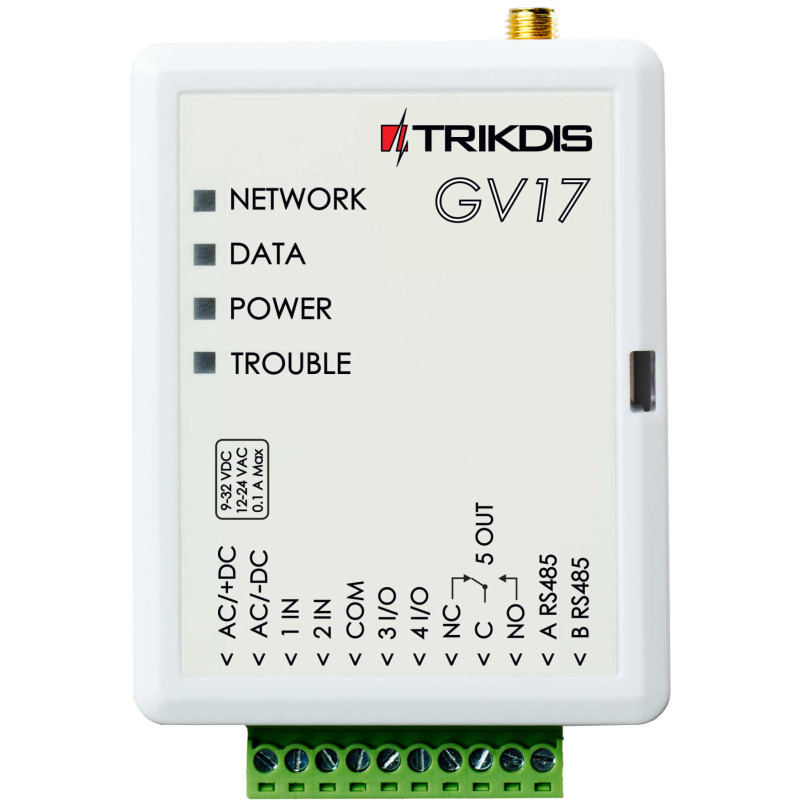

GSM gate controller GV17 Trikdis
Product reference:
26-RGSMGV172G
- Control gate automation and other equipment remotely with the Protegus app, phone calls, and SMS messages
- One 1A relay and two PGM outputs for controlling various devices
- Free user administration and event history in the Protegus app.
- Remote control
- Remote configuration
GSM gate controller GV17 Trikdis
Product reference:
26-RGSMGV172G
- Control gate automation and other equipment remotely with the Protegus app, phone calls, and SMS messages
- One 1A relay and two PGM outputs for controlling various devices
- Free user administration and event history in the Protegus app.
- Remote control
- Remote configuration
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Power supply voltage | 9-32 V DC, 12-24 V AC |
Current consumption | 50 mA (standby) Up to 200 mA (during data transfer) |
Relay | 1 (1A 30 V DC, 0.5A 125 V AC) |
Number of inputs and outputs | 2 entrances 2 dual-purpose terminals, set to operate in input or output (50mA) mode |
Input types | NC, NO or EOL=10kΩ (configurable) |
Unsent event buffer | Up to 60 events |
Event log memory | Up to 5000 events |
Users who can manage | Up to 997 users |
Users who can receive events with SMS | Up to 7 users |
2G GSM modem frequencies | 850 / 900 / 1800 / 1900 MHz |
3G UMTS modem frequencies | 800 / 850 / 900 / 1900 / 2100 MHz |
Working environment | Temperature from -20 °C to 50 °C, relative humidity up to 80% at +20 °C |
Dimensions | 65 x 77 x 25 mm |
| Manufacturer | Trikdis |
| Manufacturer code | RGSMGV172G |
| Weight | 0.088 kg |
