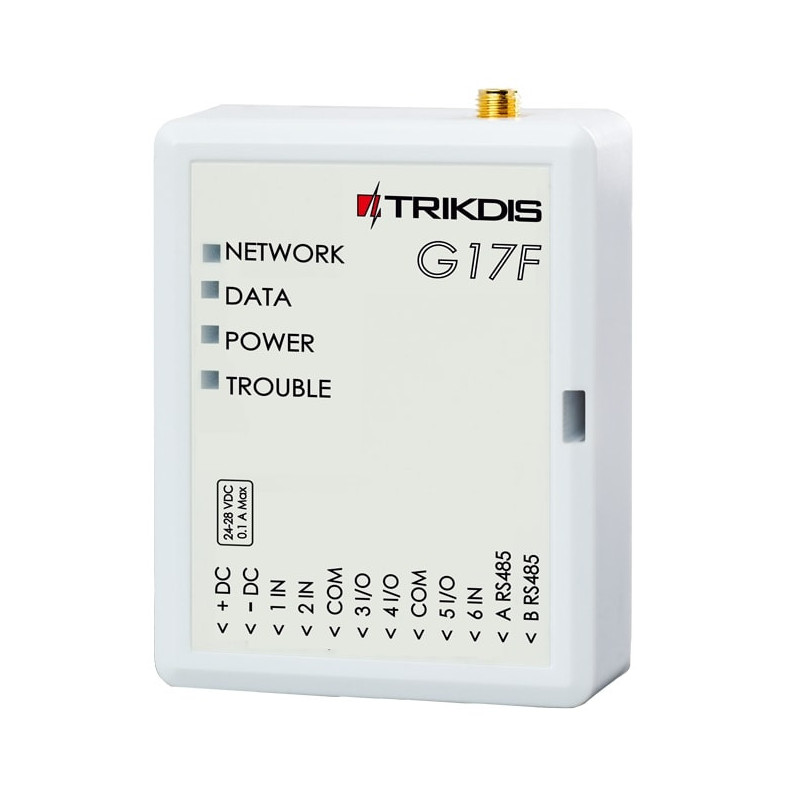

GSM communicator G17F Trikdis
Product reference: 26-GPRSG17F
  • One main communication channel
  • Two spare channels
  • Communication management with CSP
  • Event notifications are transmitted using Contact ID codes
  • Customers are informed about events: in the Protegus app, via SMS messages
  • 6 selectable inputs: NC, NO, EOL (10kΩ)
  • RS485 connector, which can be used to connect iO input and output expanders.
  • 3 inputs, 3 dual-purpose screw terminals for setting input or output functions
  • Using iO series expanders, the number of inputs can be expanded to 12
GSM communicator G17F Trikdis

GSM communicator G17F Trikdis

Product reference: 26-GPRSG17F
  • One main communication channel
  • Two spare channels
  • Communication management with CSP
  • Event notifications are transmitted using Contact ID codes
  • Customers are informed about events: in the Protegus app, via SMS messages
  • 6 selectable inputs: NC, NO, EOL (10kΩ)
  • RS485 connector, which can be used to connect iO input and output expanders.
  • 3 inputs, 3 dual-purpose screw terminals for setting input or output functions
  • Using iO series expanders, the number of inputs can be expanded to 12
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
107,77 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 4
business days

Your message has been successfully sent!
Fill in the required fields*

GSM modem frequencies

850 / 900 / 1800 / 1900 MHz

Supply voltage

9-32VDC

Current consumption

50 mA (standby mode)

Up to 200 mA (transmit mode)

Transmission protocols

TRK/ DC-09_2007/ DC-09_2012

Contact with CSP

TCP/IP or UDP/IP, SMS

Memory

Up to 60 messages

Inputs and outputs

3 inputs, 3 dual-purpose contacts for setting input or output functions

Selectable input types: NC, NO, EOL (10kΩ)

Event transmission

Contact ID codes

Encryption key

6-character encryption key

Configuring parameters

Locally via USB or remotely

Work environment

Temperature from -10 °C to 50 °C, relative humidity - up to 80% at +20 °C

Parameters

65 x 77 x 25 mm

Weight

0.08 kg


ManufacturerTrikdis
Manufacturer codeGPRSG17F
Weight0.08 kg
