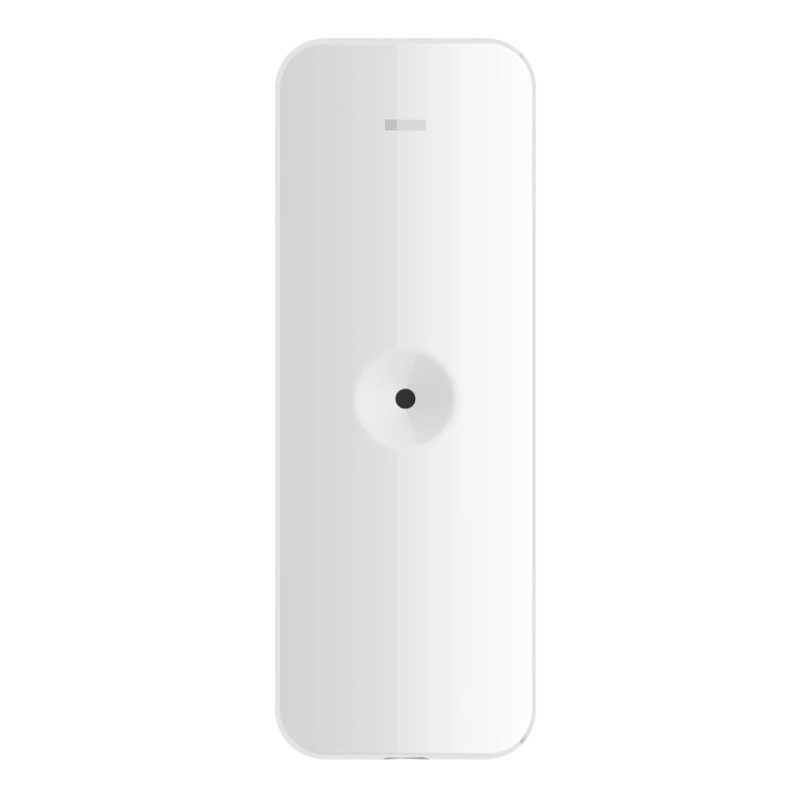

Glass break detector Ellipse Hikvision ALARM DS-PDBG8-EG2
Product reference:
26-6941264082187
- High-quality omnidirectional microphone sensor
- Up to 8 m/120° detection angle
- EOL resistors
- 9-16 VDC wide voltage range with reverse polarity protection
Glass break detector Ellipse Hikvision ALARM DS-PDBG8-EG2
Product reference:
26-6941264082187
- High-quality omnidirectional microphone sensor
- Up to 8 m/120° detection angle
- EOL resistors
- 9-16 VDC wide voltage range with reverse polarity protection
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 4
business days
Not available
- Fixing
- Fixing method Acoustic Sensor
- Capture range 8m
- Locking angle 120°
- Glass breakage sensitivity Potentiometer Adjustment
- Glass type Float; Plate; Tampered; Wired; Laminated Leaded; Double Glazing
- Glass thickness 2.4mm to 6.4mm
- Glass size 0.3mx 0.3m to 3m x 3m
- Features
- Digital processing Support
- Protection against counterfeiting Front
- Interface
- Alarm output Normally Closed
- LED indicator Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm)
- Transmission
- Transmission method Wired
- Electrical characteristics
- Power supply 9-16VDC
- Rated voltage 12V
- Energy consumption 25mA
- Home
- Working conditions (temperature) -10°C to 55°C (14°F to 131°F)
- Storage conditions (temperature) -20°C to 60°C (-4°F to 140°F)
- Operating conditions (humidity) 10% to 90%
- Size 38.8mm × 107mm × 22.5mm
- 49.5g
- Installation method Wall;Ceiling
- Application Indoor
| Manufacturer code | DSPDBG8EG2 |
| Manufacturer | Hikvision |
| Weight | 0.052 kg |
